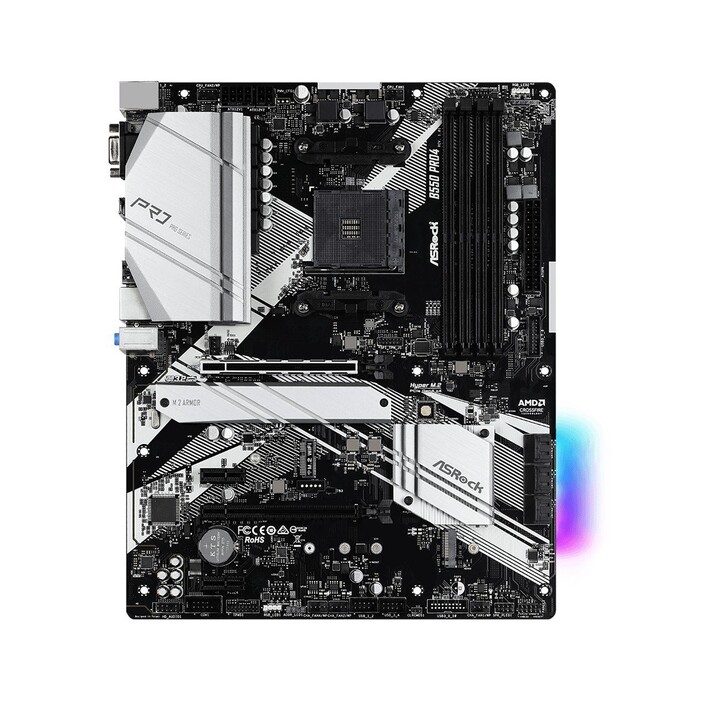

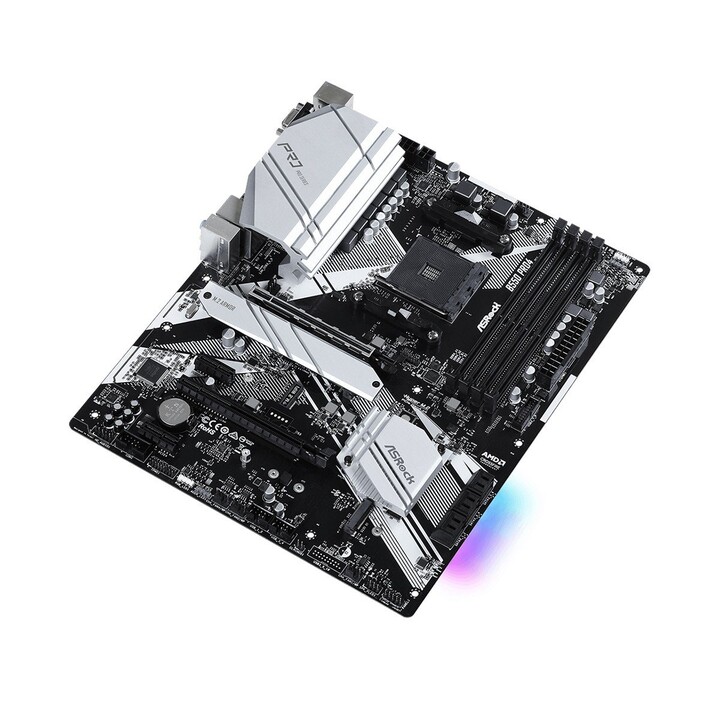

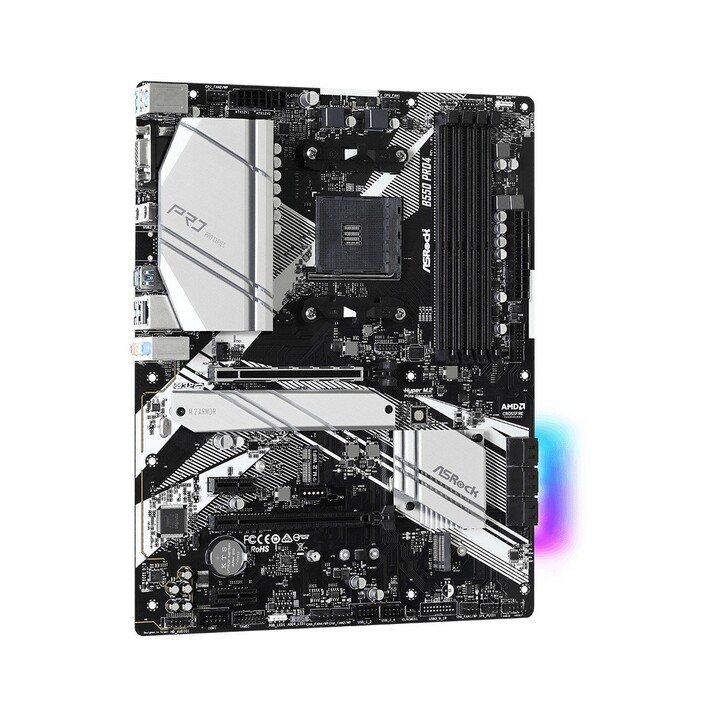

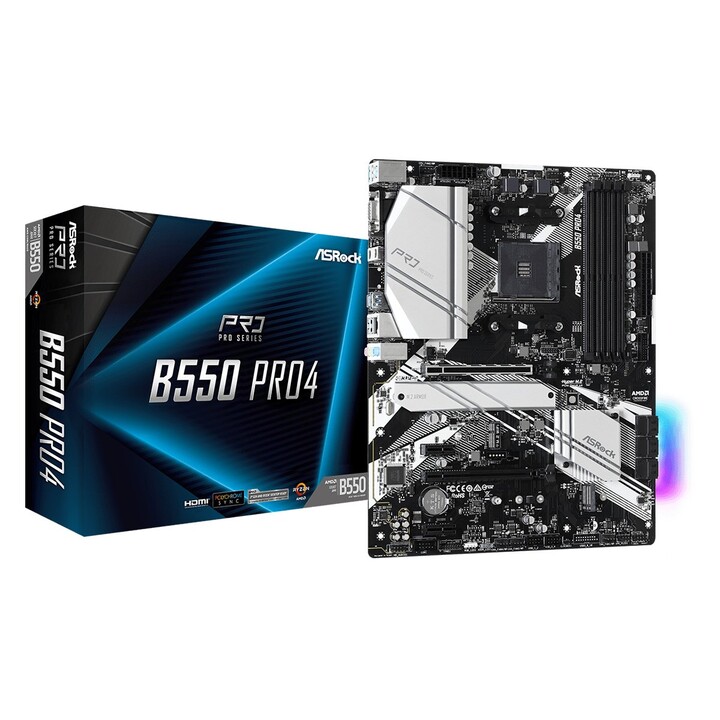

Asrock B550 Pro4 AMD B550 AM4 ATX Socket

The ASRock B550 Pro4 is a high-performance ATX motherboard designed for AMD Ryzen 3000 series processors using the Socket AM4 platform. Featuring the AMD B550 chipset, it supports dual-channel DDR4 memory with speeds up to 4533 MHz and a maximum capacity of 128 GB, ensuring smooth multitasking and gaming experiences.

Equipped with PCI Express 4.0 and 3.0 slots, including one PCIe 4.0 x16 slot and one PCIe 3.0 x16 slot, this motherboard supports CrossFireX and Quad-GPU CrossFireX technologies for enhanced graphics performance. Storage options include multiple M.2 slots and six SATA III connectors, supporting both HDD and SSD drives with RAID levels 0, 1, and 10 for data protection and speed.

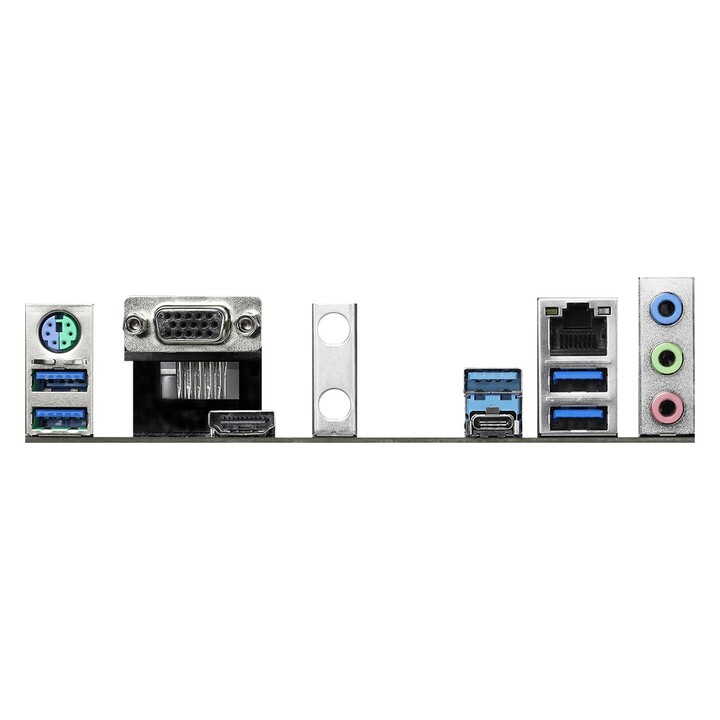

Connectivity features include one Gigabit Ethernet LAN port powered by the Realtek RTL8111H controller, multiple USB 3.2 Gen 1 Type-A ports, USB 3.2 Gen 2 Type-A and Type-C ports, HDMI and VGA outputs for versatile display options, and front panel audio connectors supporting 7.1 channel audio via the Realtek ALC1200 chip.

The motherboard supports advanced system monitoring for CPU, fan, temperature, voltage, and water cooling, ensuring stable operation. Additional features include TPM connector, RGB LED header, and multiple fan connectors for customizable cooling solutions. The UEFI AMI BIOS with 256 Mbit memory offers easy system configuration and management.

With its robust build, extensive connectivity, and support for the latest AMD processors and technologies, the ASRock B550 Pro4 is an excellent choice for gamers, content creators, and PC enthusiasts seeking reliability and performance.
