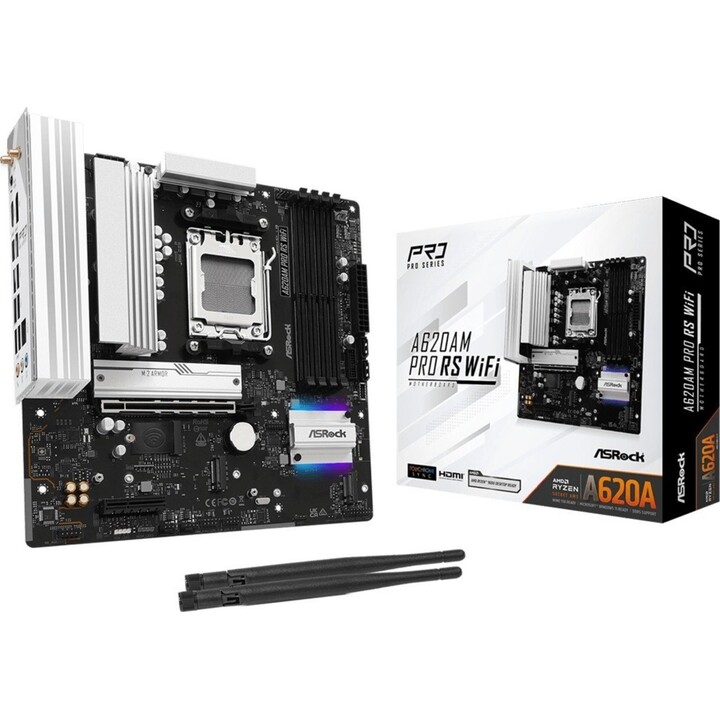

Asrock A620AM PRO RS WIFI, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, RGB, 3x M.2

Specification

• Motherboard Type:?Desktop
• Form Factor:?Micro ATX
• Socket:AMD AM5
• Chipset:AMD A620A
• DDR Type: DDR5
• RAM Technology: DDR5 (Dual Channel)
  Supports ECC/non-ECC, un-buffered memory
  Supports XMP and EXPO?
• RAM Slots:?4 x DIMM
• RAM Speeds:?Up to 7200+(OC)
• Maximum Memory:?256GB
• Graphics:?Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports:±1 x HDMI
  1 x DisplayPort
• PCI/PCI Express:±1 x PCIe 4.0 x16 (supports x16 mode)
  1 x PCIe 3.0 x16 (supports x2 mode)
• Storage:?2 x SATA III
  1 x M.2 (2260/2280) PCIe 4.0 x4
  1 x M.2 (2260/2280) PCIe 4.0 x4
  1 x M.2 (2260/2280) PCIe 3.0 x4
• RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices?
• Wireless:?802.11ax Wi-Fi 6E Module
  Supports IEEE 802.11a/b/g/n/ac/axe
  Supports Dual-Band 2?2 with ext 6GHz band support
  2 antennas 2 (Transmit) x 2 (Receive) diversity tech
  Supports Bluetooth 5.2 + High speed class II
  Supports MU-MIMO
• LAN:?2.5GB LAN
• Audio:?7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported:?Rear:
  1 x USB 5Gbps Type-C
  3 x USB 5Gbps Type-A
  4 x USB 2.0

  Front:
  1 x USB 5Gbps Type-C
  2 x USB 5Gbps Type-A
  4 x USB 2.0

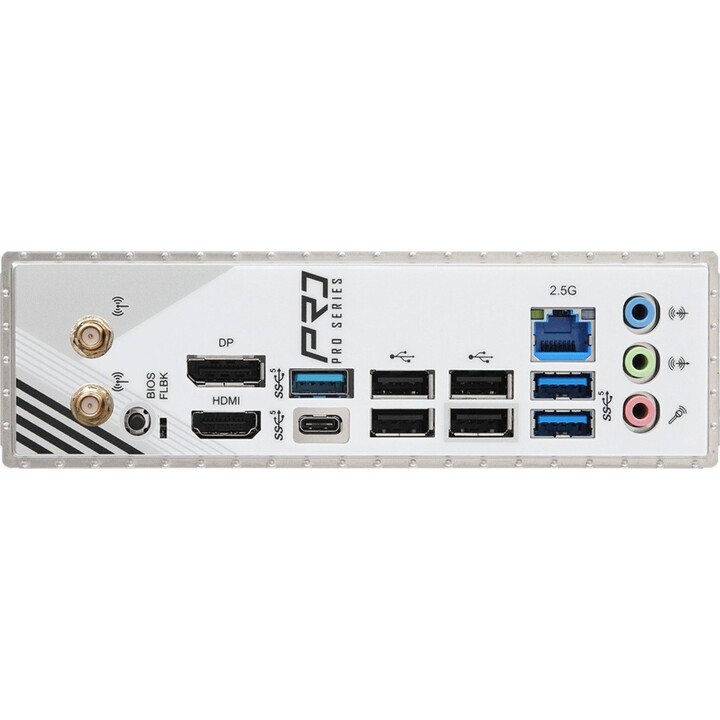

• Back Panel I/O Ports:?2 x Antenna
  1 x HDMI
  1 x DisplayPort 1.4
  3 x USB 3.2 Gen1 Type-A
  1 x USB 3.2 Gen1 Type-C
  4 x USB 2.0
  1 x RJ-45 LAN
  1 x BIOS Flashback Button
  HD Audio Jacks
• Internal I/O Connectors:±1 x SPI TPM
  1 x Power LED and Speaker
  1 x RGB LED
  3 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  3 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  2 x USB 2.0
  1 x USB 3.2 Gen1
• .:±1 x Front Panel Type-C USB 3.2 Gen1
• Accessories:±1 x User Manual
  2 x SATA Data Cables
  2 x ASRock WiFi 2.4/5/6 GHz Antennas
  3 x Screws for M.2 Sockets
  1 x Standoff for M.2 Socket
• Additional Features:?See Overview
• Package Type:?Retail
• Package Weight:?To be confirmed
• Warranty:?3 Year Replacement Warranty
• M.2 Slot(s):?Yes (M.2)
• No. LAN Ports:±1 x LAN
• Max LAN Speed:?2.5GB LAN
• Wi-Fi:?Yes (Wi-Fi)
• RGB Lighting:?Out of the box RGB lighting
