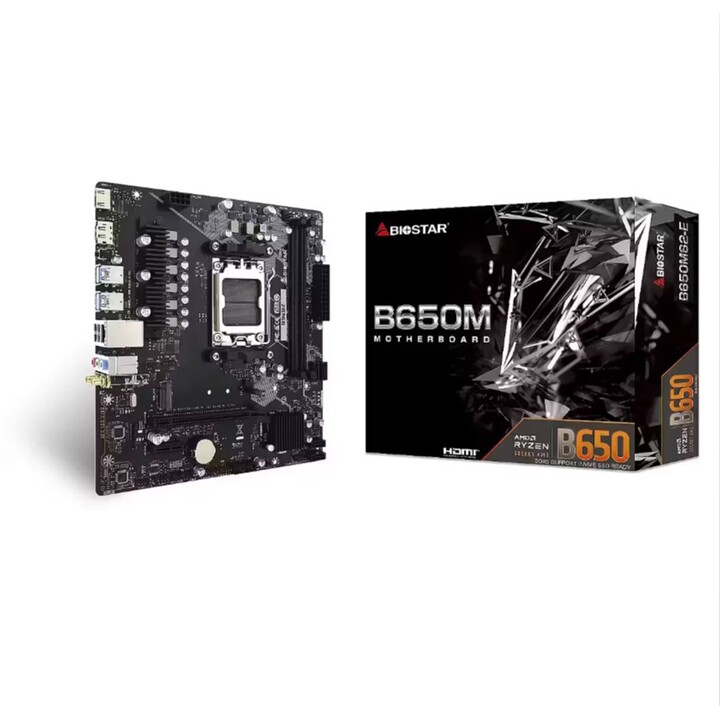

BIOSTAR B650MS2-E Motherboard
- Socket AM5 for AMD Ryzen 7000/8000 series processors
- DDR5 memory support up to 6400MHz (OC)
- PCIe 4.0 x16 slot for graphics cards
- M.2 Gen4 x4 slot for ultra-fast SSDs
- USB 3.2 Gen2 Type-C and Type-A ports
BIOSTAR B650MS2-E Motherboard
The BIOSTAR B650MS2-E is a micro-ATX motherboard built on the AMD B650 chipset, designed for the latest AMD Ryzen 7000 and 8000 series processors. It supports dual-channel DDR5 memory with speeds up to 6400MHz (OC), delivering exceptional performance for gaming and content creation. The board features a PCIe 4.0 x16 slot for high-end graphics cards and an M.2 Gen4 x4 slot for lightning-fast NVMe SSDs, ensuring rapid data access and system responsiveness.
Connectivity options include USB 3.2 Gen2 Type-C and Type-A ports, HDMI 2.1 and DisplayPort outputs for integrated graphics, and 2.5GbE LAN for high-speed networking. The motherboard also provides multiple SATA III ports for additional storage, along with HD audio and a user-friendly UEFI BIOS. With robust power delivery and comprehensive cooling support, the BIOSTAR B650MS2-E is a reliable foundation for a powerful AMD-based system.
| Socket | AM5 |
| Chipset | AMD B650 |
| Form Factor | Micro-ATX |
| Memory Support | 2x DDR5 DIMM, up to 6400MHz (OC), max 64GB |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| Storage | 1x M.2 Gen4 x4, 4x SATA III |
| USB Ports (Rear) | 1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1, 2x USB 2.0 |
| Video Outputs | 1x HDMI 2.1, 1x DisplayPort 1.4 |
| LAN | Realtek 2.5GbE |
| Audio | Realtek ALC897 7.1-channel HD Audio |
| Internal I/O | 1x USB 3.2 Gen1 header, 2x USB 2.0 headers, 1x COM header |
