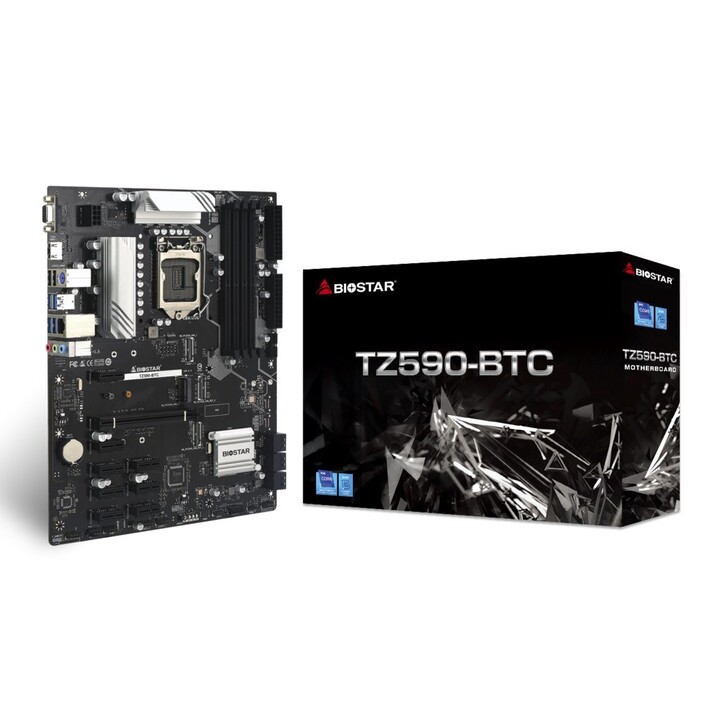

Biostar TZ590-BTC Motherboard
- Intel Z590 chipset with LGA 1200 socket for 10th/11th Gen Intel processors
- 8 PCI Express x1 (Gen 3.x) slots for multiple GPUs or expansion cards
- Dual-channel DDR4 memory support up to 3600 MHz
- Supports up to 6 HDDs and features 4 USB 3.2 Gen 1 Type-A ports
- Gigabit Ethernet and 7.1-channel audio for reliable connectivity
Biostar TZ590-BTC Motherboard
The Biostar TZ590-BTC is a robust motherboard built on the Intel Z590 chipset and LGA 1200 socket, designed for Intel processors. It stands out with an impressive array of 8 PCI Express x1 (Gen 3.x) slots, making it an excellent foundation for multi-GPU setups such as cryptocurrency mining rigs or high-expansion workstations.
With dual-channel memory architecture supporting speeds up to 3600 MHz, this board ensures responsive performance for demanding applications. Storage flexibility is provided by support for up to 6 HDDs, while the rear I/O includes 4 USB 3.2 Gen 1 Type-A ports and an HDMI port for display output. Integrated Gigabit Ethernet and 7.1-channel audio deliver solid networking and sound capabilities.
Additional internal connectors include two USB 2.0 headers, an 8-pin EPS power connector, a CPU fan connector, a front panel connector, and a TPM connector, offering convenient system building and security options. The board is Windows 11 x64 ready and comes in a sleek black color.
Características principales
- Intel Z590 chipset with LGA 1200 socket
- 8 PCI Express x1 (Gen 3.x) slots for extensive expansion
- Dual-channel DDR4 memory, max speed 3600 MHz
- Supports up to 6 HDDs
- 4 USB 3.2 Gen 1 Type-A ports on rear panel
- Gigabit Ethernet and 7.1-channel audio
- Windows 11 x64 supported
Especificaciones técnicas
| Processor socket | LGA 1200 (Socket H5) |
| Motherboard chipset | Intel Z590 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 3600 MHz |
| Number of HDDs supported | 6 |
| PCI Express x1 (Gen 3.x) slots | 8 |
| USB 2.0 connectors | 2 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64 |
| Product colour | Black |
| Width | 305 mm |
Preguntas frecuentes
What processor socket does this motherboard use?
It features an LGA 1200 (Socket H5) socket, compatible with Intel processors designed for that socket.
How many PCIe x1 slots are available?
There are 8 PCI Express x1 (Gen 3.x) slots, ideal for adding multiple expansion cards.
What is the maximum memory speed supported?
The board supports dual-channel memory with a maximum clock speed of 3600 MHz.
Does it support Windows 11?
Yes, it supports Windows 11 x64.
Es para ti si...
- Necesitas una placa base con muchas ranuras PCIe x1 para minería o expansión.
- Buscas compatibilidad con procesadores Intel LGA 1200 y chipset Z590.
- Quieres soporte para hasta 6 discos duros y memoria DDR4 de alta velocidad.
- Valoras conectividad Gigabit Ethernet y audio 7.1 canales.
-
