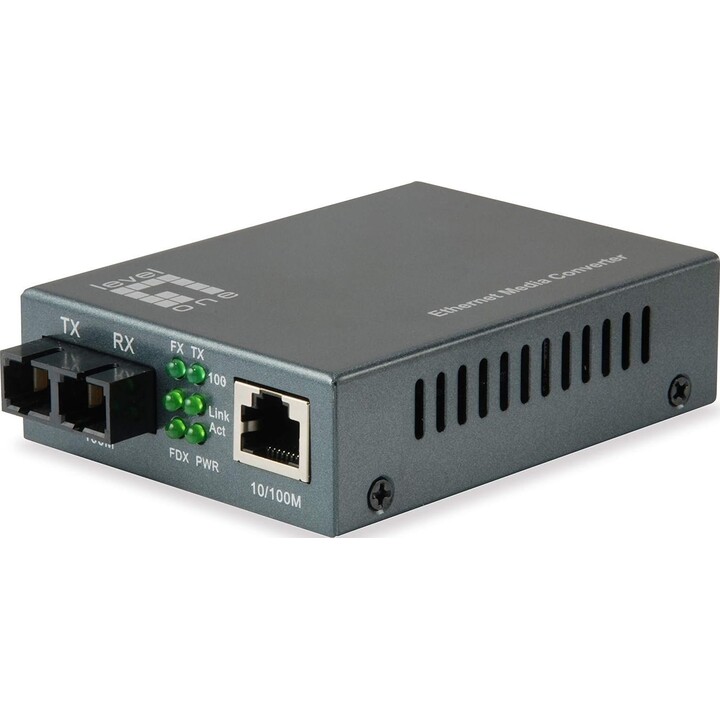

RJ45 to SC Fast Ethernet Media Converter, Multimode Fiber, 1310nm, 2km
Reference:
FVT-1101
EAN:
4015867208038
Condition:
New
Price:
€31.90
VAT included
Without tax:
€26.36
- Converts 10/100Base-TX to 100Base-FX multimode fiber
- SC connector, 1310nm wavelength, up to 2km distance
- Auto MDI/MDIX on RJ45 port
- External power supply (5V DC, 1A)
- Plug-and-play installation, no configuration required
Ports and Connectivity
-
Ethernet port: 1x RJ45 10/100Base-TX with full/half duplex support and automatic MDI/MDIX detection.
-
Fibre port: 1x SC for multimode (MM) fibre, compatible with 50/125 µm or 62.5/125 µm cables.
-
Standards: IEEE 802.3 (10Base-T) and 802.3u (100Base-FX), plug-and-play without drivers.
Optical Specifications
-
Wavelength: 1310 nm with typical transmit power of -15 to -8 dBm and receive sensitivity up to -38 dBm.
-
Maximum distance: 2 km in multimode, perfect for campus or building-to-building connections without significant loss.
-

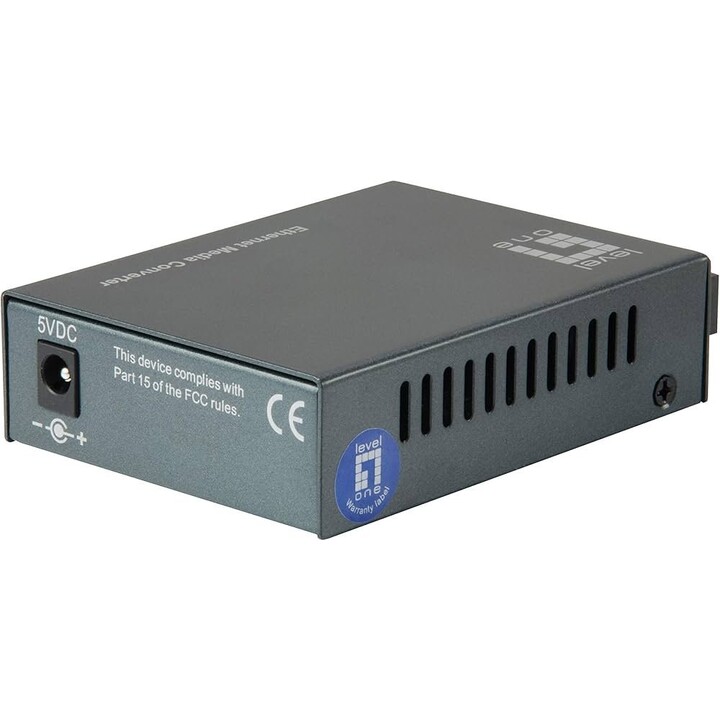

Power supply: DC 5V, low power consumption (~2.5W), metal housing for heat dissipation.
-
Brand
-
ReferenceFVT-1101
-
In stock16 Items
-
ConditionNew
-
EAN134015867208038
-
MPNFVT-1101
| Brand | LEVEL ONE |
|---|---|
| Country | Netherlands |
| Address of origin | Krijgsman 1, 1186 DM Amstelveen |
| EU responsible person | Digital Data Communications (DDC) Group |
| Address | Krijgsman 1, 1186 DM Amstelveen |
| [email protected] | |
| Phone | +49 (0) 231 9075 - 0 |
