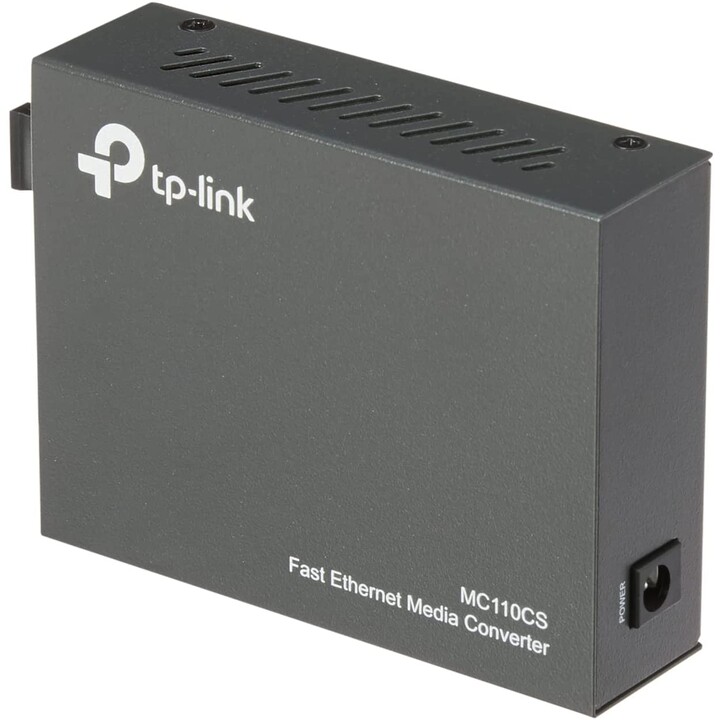

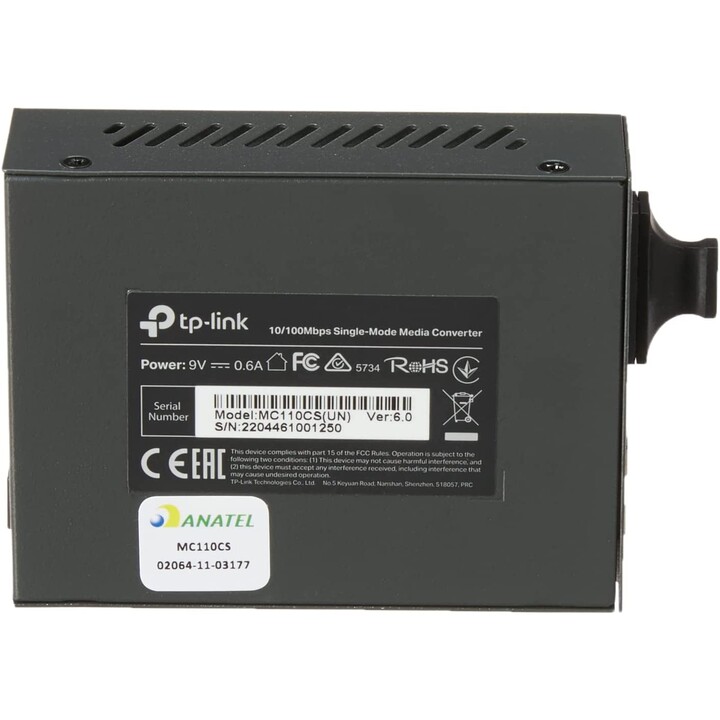

Media Converter TP-Link MC110CS/ 1 Port/ RJ-45 10/100

MC110CS

• 10/100Mbps Single Mode Multimedia Converter
• Compatible with 802.3u 10/100 Base-TX, 100Base-FX standards.
• The fault and error link step timely minimize the loss caused by the link failure
• Provides Half Duplex/Full Duplex Transfer Mode switch configuration for the FX port.
• Extend the fiber distance up to 20-60km

• MEDIA CONVERTER AND MODULE
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Basic Function: Half/Full-Duplex transfer mode for FX port
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Backpressure)
• Extends fiber distance up to 20km
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
• Ports: 1 100M SC/UPC port
• 1 100M RJ45 port (Auto MDI/MDIX)
• Wave Length: 1310nm
• Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Network Media 100BASE-T: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Network Media 100BASE-FX: Single-mode Fiber

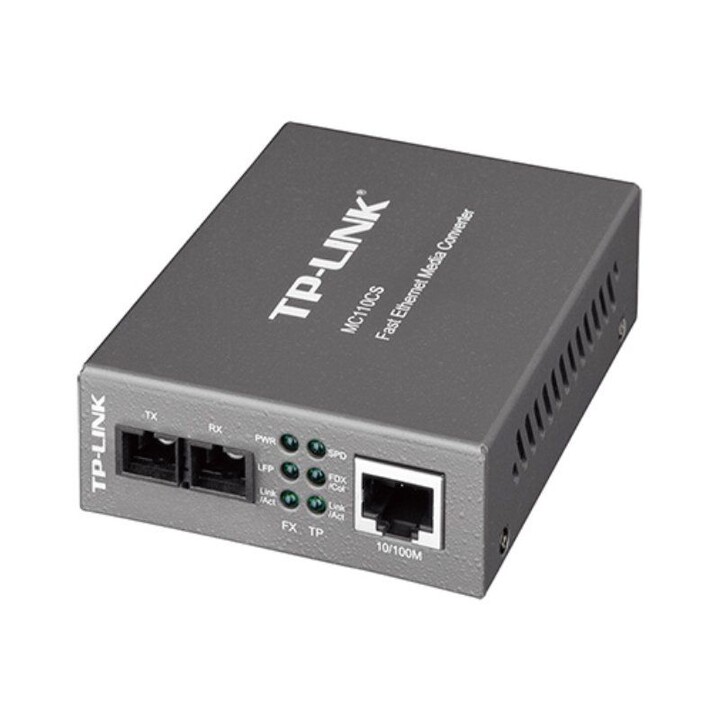

• LED Indicators: PWR, FDX/Col, Link/Act, SPD
• Dimensions (W*D*H): 3.7*2.9*1.1in. (94.5*73.0*27.0mm)

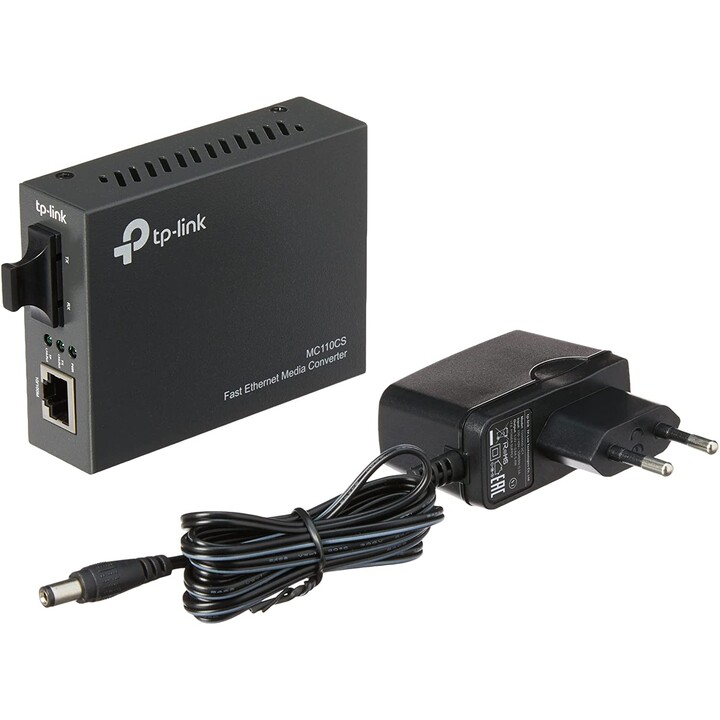

• Power Supply: External power supply
• Max Power Consumption: 1.52W
• Safety & Emission: FCC, CE, RoHS
• Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
