10/100 Mbps Multimode Media Converter
- Converts 10/100BASE-TX to 100BASE-FX multimode fiber
- SC connector, 2km max distance over multimode fiber
- Auto MDI/MDIX on RJ45 port
- External 5V DC power adapter included
- Plug-and-play, no configuration required
10/100 Mbps Multimode Media Converter

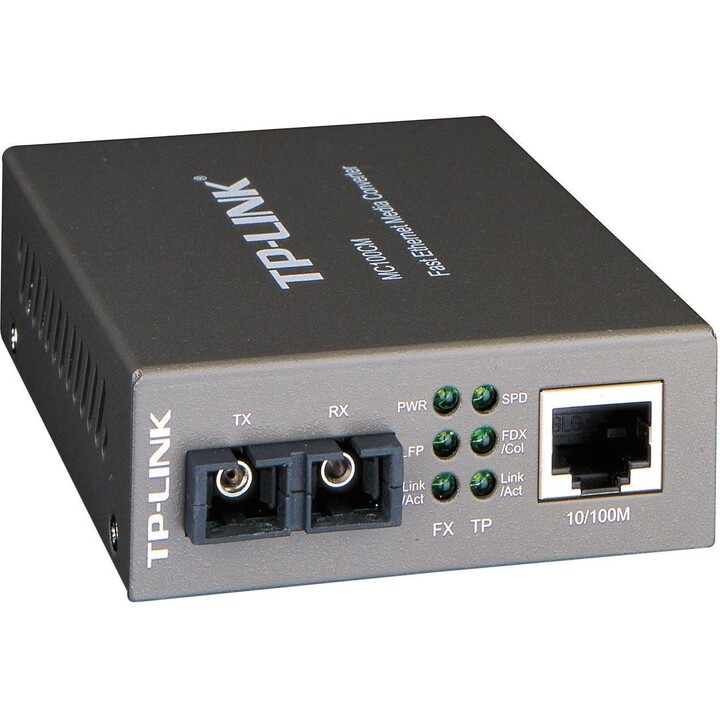

The TP-LINK MC100CM is a compact media converter designed to extend network distances by converting copper Ethernet to fiber optic. It supports 10/100 Mbps speeds on the RJ45 port and 100 Mbps on the fiber port, using a multimode SC connector. With a maximum transmission distance of 2 kilometers, it is ideal for connecting devices across buildings or in industrial environments where electrical isolation is needed.
This converter features auto MDI/MDIX on the copper port, eliminating the need for crossover cables. It operates in half-duplex or full-duplex mode and includes an external power supply for reliable performance. The plug-and-play design requires no software configuration, making it easy to deploy in any network setup.
| Standards | IEEE 802.3u 100BASE-TX/FX, IEEE 802.3 10BASE-T |
| Ports | 1x 10/100Mbps RJ45, 1x 100Mbps SC multimode fiber |
| Fiber Type | Multimode (62.5/125μm or 50/125μm) |
| Max Distance | 2 km (full-duplex) |
| Wavelength | 1310 nm |
| Power Supply | External 5V DC, 0.6A |
| Dimensions | 94.5 x 73.0 x 27.0 mm (3.7 x 2.9 x 1.1 in) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
