• Próxima reposición MC220L

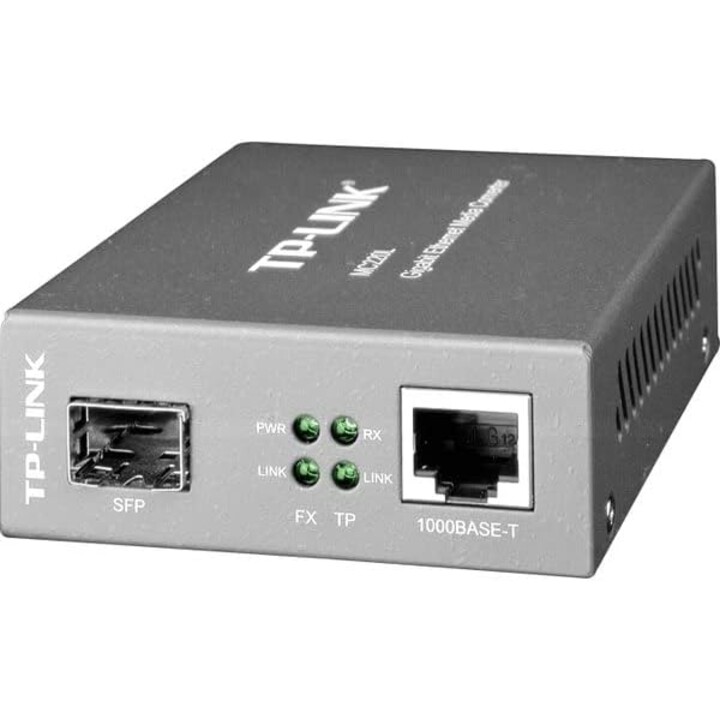

TP-LINK MC220L media converter 1000 Mbit / s

TP-LINK MC220L media converter 1000 Mbit / s

TP-LINK
Reference: MC220L
EAN: 6935364030476
Condition: New
€28.88
VAT included
Without tax: €23.87
  • Converts 1000BASE-SX/LX/LH fiber to 1000Base-T copper
  • Supports multi-mode (up to 0.55 km) and single-mode (up to 10 km) fiber
  • SC/LC connector, operates at 850 nm (multi-mode) or 1310 nm (single-mode)
  • Auto MDI/MDI-X on TX port, standalone or 19" chassis compatible
  • Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX/LH
Próxima reposición MC220L
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Up to 3 years warranty 100% secure payment 14 days return

Design
Certification
FCC, CE
Industry standard compliances
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
LED indicators
Link
Other features
Input and output ports (I / O)
1x 1000M SC 1x 1000M RJ45
Bidirectional full (Full duplex)
Yes
Dimensions (Width x Depth x Height)
94.5 x 73 x 27 mm
Weight and measurements
Depth
73 mm
Height
27 mm
Width
94.5 mm
Connection
Network standards
IEEE 802.3x, IEEE 802.1ab, IEEE 802.3z
Maximum data transfer range
1000 Mbit / s
Ethernet LAN, data transfer speed
1000 Mbit / s
Cabling technology
UTP 5e, 5
Auto MDI / MDI-X
Yes
Ethernet interface type
Gigabit Ethernet
Environmental conditions
Relative humidity range during storage
5 - 90%
Relative humidity range for operation
10 - 90%
Operating temperature range
0 - 40 C
Storage temperature range
-40 - 70 C
Packaging
Package width
204 mm
Package weight
420 g
Package height
65 mm
Package depth
165 mm
Ports and Interfaces
Fiber channel ports
one
Ethernet LAN (RJ-45) number of ports
one
Fiber optic connector
SFP
Connectivity technology
Wired
Power control
Power consumption (max)
3.95 W
Performance
Maximum transfer distance
10,000 m

  • Brand
  • Reference
    MC220L
  • Condition
    New
  • EAN13
    6935364030476
  • MPN
    MC220L

Brand TP-LINK
Country Spain
Address of origin Am Trippelsberg 100, Dusseldorf, DE, 40589
EU responsible person TP-Link Technologies Co., Ltd.
Address Feldring 9, Hofheim am Taunus, Germany, 65719
Email [email protected]
Phone 34912000727
