Startech Professional KVM Switch 2-Port DisplayPort USB Video Switch with Audio

Control two computers from a single console with high-resolution DisplayPort video, USB, keyboard, mouse, and audio. The SV231DPUA 2-Port DisplayPort USB KVM Switch provides KVM control for two computers, making it ideal for high-definition multimedia applications. It supports DisplayPort connections with a native resolution of 2560 x 1600 and 7.1 HD digital audio (when connected to compatible displays/sources) and 3.5mm analog stereo audio/mic.

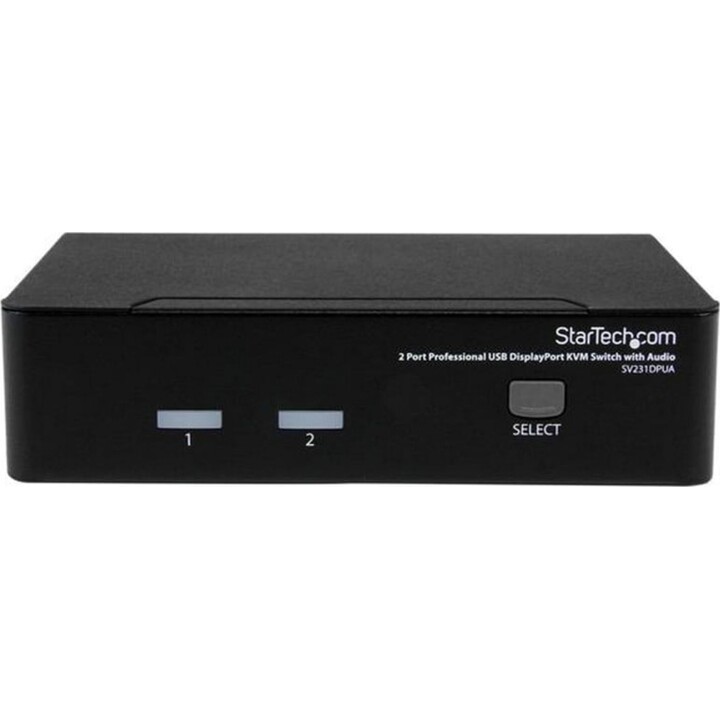

A simple yet comprehensive solution, this compact 2-port switch features rear-panel connection ports and a front-panel switching system with pushbuttons and shortcut keys. A plug-and-play USB 2.0 hub allows you to share an additional USB peripheral between two connected computers, eliminating the need to purchase duplicate peripherals.

A suitable solution for medical applications (MRI, X-rays, etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a lower refresh rate.

Characteristics:

• Compatible with Mini-DisplayPort adapters, making it suitable for use with Apple MacBook
• It supports both analog and digital audio sources, offering versatility to use either connection depending on preference/availability.
• It allows sharing USB peripherals, eliminating the expense of buying duplicate devices (printers, scanners, etc.)

Specs:

• Exhibition
  • Built-in screen: No
  • On-screen display (OSD): No

• Ports and Interfaces
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • Console ports: 3.5mm headphone jack, 3.5mm microphone jack, DisplayPort, USB A
  • USB Hub: Yes
  • USB connector: USB Type-A
  • Audio connection: Yes
  • Headphone outputs: 3
  • Number of microphone inputs: 3
  • DC input socket: Yes

• Weight and dimensions
  • Width: 220 mm
  • Depth: 130 mm
  • Height: 44 mm
  • Weight: 1.1 kg

• Energy control
  • AC input voltage: 110 - 240 V
  • Input current: 0.8 A
  • Output voltage: 12 V
  • Output current: 2 A
  • Energy consumption: 24 W
  • External power adapter: Yes
  • Plug type: Type M
  • Compatible power plug types: AU, EU, UK, US

• Environmental conditions
  • Operating temperature range: 0 - 40°C
  • Storage temperature range: -20 - 60 °C
  • Relative humidity range for operation: 0 - 80%

• Connection
  • Ethernet: No

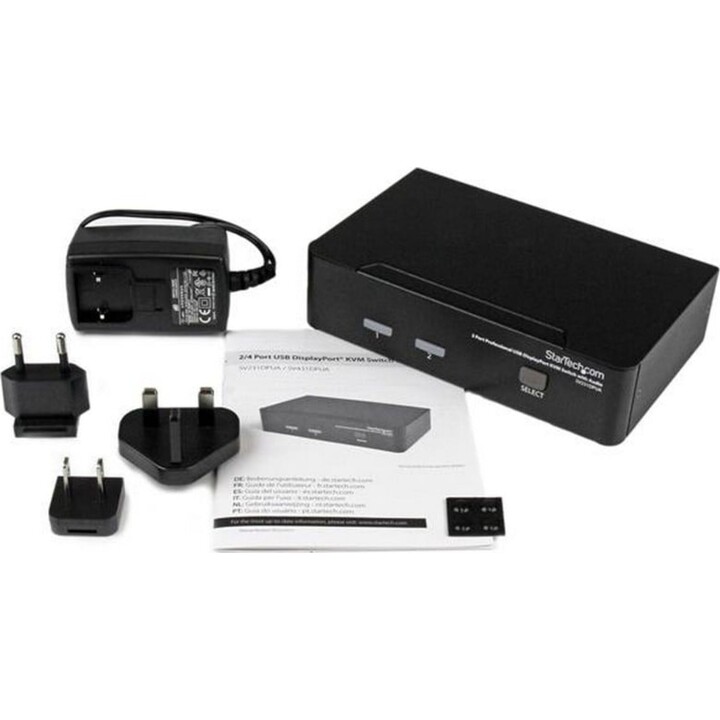

• Package contents
  • User manual: Yes
  • AC adapter included: Yes
  • Rubber foot: Yes

• Other features
  • Audio support: No
  • IP Control: No

• Design
  • Rack mount: No
  • Product color: Black
  • Case material: Steel
  • LED Indicators: Yes
  • Button to press: Yes
  • Shortcut keys: Yes
  • RoHS Compliance: Yes
  • Certification: CE, UL, FCC, CEA

• Performance
  • HD Type: 4K Ultra HD
  • Maximum resolution: 3840 x 2400 Pixels
  • DDC2B supported: Yes
  • Hot-Plug Compatibility: Yes
  • Plug and Play: Yes
  • Daisy-chain connection: No
  • Audio channels: 7.1
