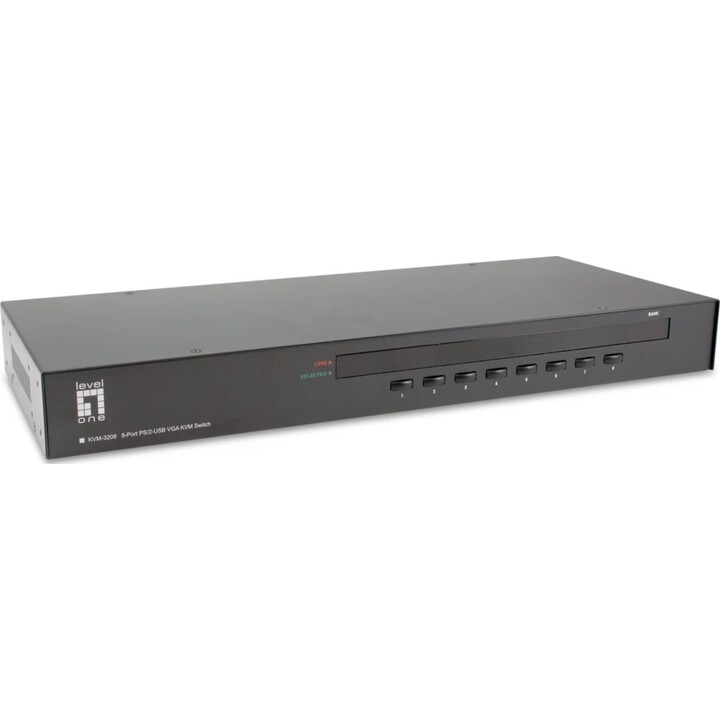

KVM-3208 8-Port PS/2-USB VGA KVM Switch

Description

LevelOne KVM-3208 Black Rack Mount KVM Switch

LevelOne KVM-3208, 2048 x 1536 pixels, 1U rack mount, black

Key Product Features

1U Rack Mount, Black

Number of controlled computers: 8

Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA

2048 x 1536 pixels resolution

Housing material: Metal

Hotkeys

External DC power adapter

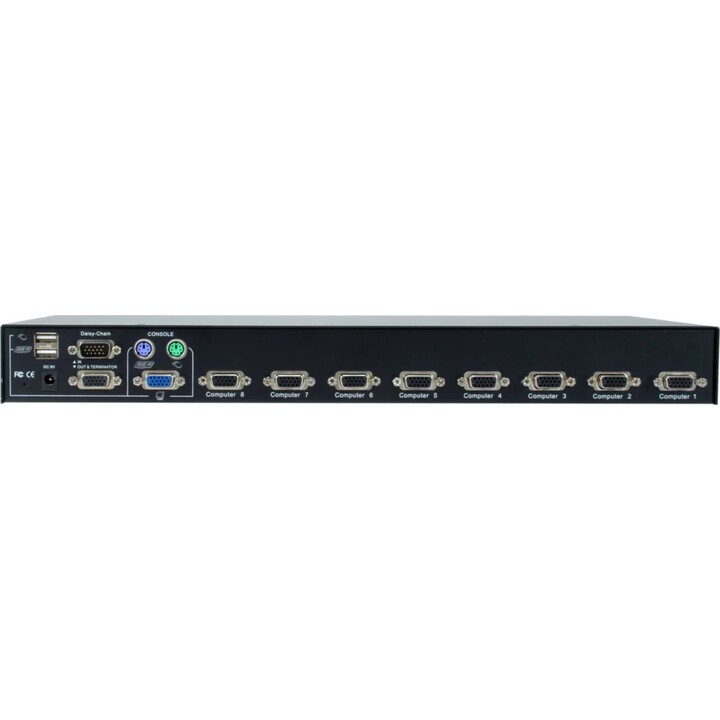

Ports and Interfaces

Number of controlled computers: 8

Keyboard port type: USB, PS/2

Mouse port type: USB, PS/2

Video port type: VGA

Number of VGA (D-Sub) ports: 8

Console ports: PS/2, USB A, VGA (D-Sub)

Number of console USB ports: 2

PS/2 mouse ports: 2

DC input jack: Yes

Performance

Maximum resolution: 2048 x 1536 pixels

Scan interval: 10,15,20,25,30,35,40,45,50,55,60,70,80,90 s

Minimum auto-scan delay: 10 s

Maximum auto-scan delay: 95 s

Daisy chain support: Yes

Maximum operating distance: 30 m

Design

Rack mountable: Yes

Rack capacity: 1U

Product color: Black

Housing material: Metal

Daisy chain capability: Yes

LED indicators: Power (LED)

Push button: Yes

Hotkeys: Yes

Display

Built-in display: No

On-screen display (OSD): Yes

Power Management

Power supply: DC

Input voltage: 9 V

Input current: 1 A

External power adapter: Yes

System Requirements

Compatible Windows OS: Windows 2000, Windows 7 (all editions and x64 versions), Windows 95, Windows 98, Windows 98SE, Windows ME, Windows Vista (all editions and x64 versions), Windows XP (all editions and x64 versions)

Compatible Linux OS: Yes

Compatible MAC OS: Yes

Sustainability

Sustainability compliance: Yes

Compliance certificates: CE, US Federal Communications Commission (FCC), UKCA, WEEE

Environmental Conditions

Operating temperature: 0 - 40°C

Storage temperature: -10 - 70 °C

Operating relative humidity range: 0 - 85%

Storage relative humidity range: 0 - 90%

Weight and Dimensions

Width: 410 mm

Depth: 165 mm

Height: 44.5 mm

Weight: 2.2 kg
