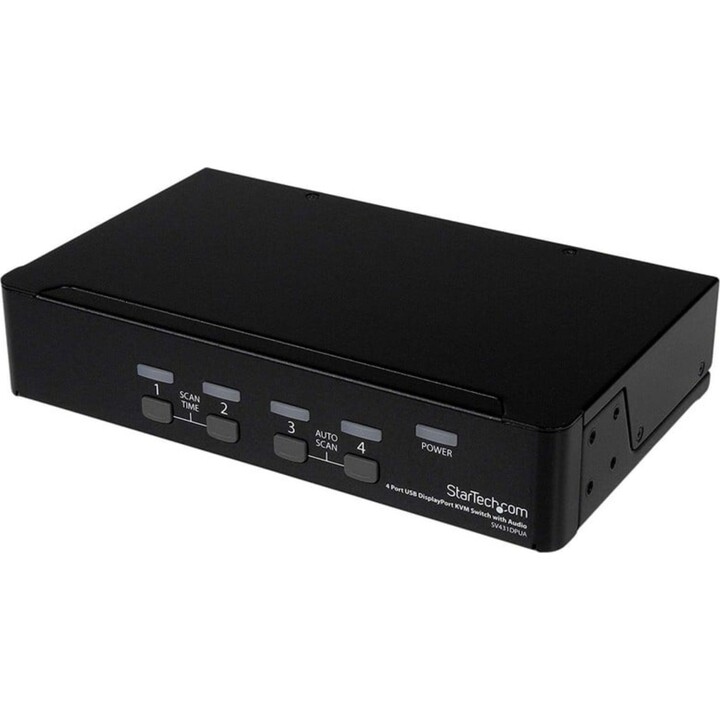

Startech KVM Switch 4 Ports DisplayPort USB Hub

About the product

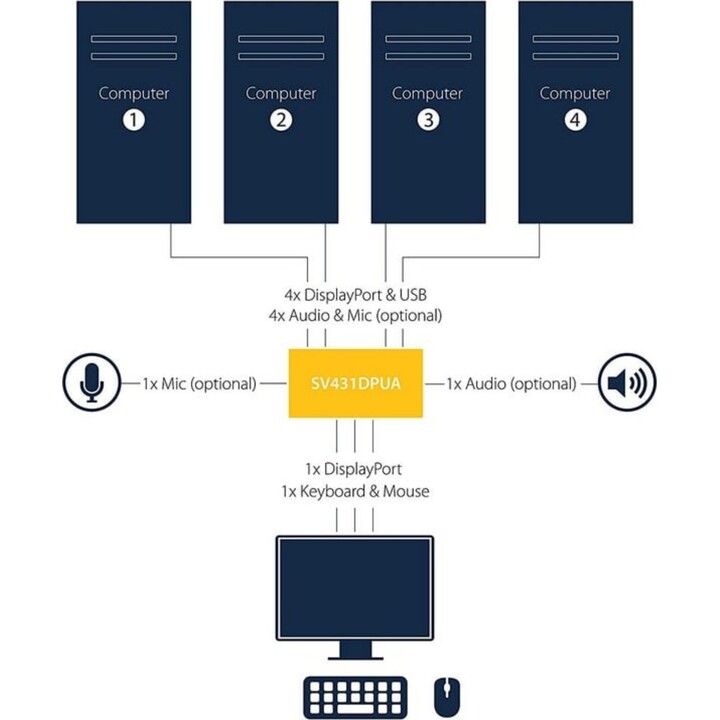

Share a keyboard, mouse, and DisplayPort display between four high-resolution multimedia systems.

The SV431DPUA 4-Port USB DisplayPort KVM Switch with Audio combines next-generation display standards with seamless KVM control of up to four connected PCs or Macs . It offers DisplayPort resolutions of 2560x1600 at 60Hz, as well as 7.1 HD digital audio (compatible with displays and sources) and 3.5mm stereo audio. An integrated USB 2.0 hub allows you to share two additional peripherals between connected computers, as if they were directly connected. Ideal for high-quality static imaging applications, such as those used in medical environments (MRI, X-ray, etc.), it supports a maximum resolution of 3840x2400 at reduced scan rates.

Characteristics:

• The integrated hub allows sharing USB peripherals, eliminating the expense of buying duplicate devices (printers, scanners, etc.).
• Compatible with Mini-DisplayPort adapters, making it suitable for use with Apple Macbook
• It supports separate DisplayPort 7.1 HD digital audio connections or 3.5mm analog audio for greater versatility.

Specs

• Exhibition
  • Built-in screen: No

• Ports and Interfaces
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • Console ports: DisplayPort, 3.5mm headphone jack, 3.5mm microphone jack, USB A
  • USB Hub: Yes
  • Audio connection: Yes
  • Headphone outputs: 4
  • Number of microphone inputs: 4
  • DC input socket: Yes

• Weight and dimensions
  • Width: 220.7 mm
  • Depth: 130.6 mm
  • Height: 44 mm
  • Weight: 1.1 kg

• Energy control
  • AC input voltage: 110-240 V
  • Input current: 0.8 A
  • Output voltage: 12 V
  • Output current: 1.5 A
  • External power adapter: Yes
  • Plug type: Type M
  • Compatible power plug types: AU, EU, UK, US

• Environmental conditions
  • Operating temperature range: 0 - 40°C
  • Storage temperature range: -20 - 60 °C
  • Relative humidity range for operation: 0 - 80%

• Package contents
  • User manual: Yes
  • AC adapter included: Yes
  • Rubber foot: Yes

• Other features
  • Audio support: Yes
  • IP Control: No

• Design
  • Product color: Black
  • Case material: Steel
  • LED Indicators: Yes
  • Button to press: Yes
  • Shortcut keys: Yes
  • RoHS Compliance: Yes
  • Certification: CE, FCC, UL, VESA, CEA

• Performance
  • Maximum resolution: 3840 x 2400 Pixels
  • Resolution (maximum digital): 2560 x 1600 Pixels
  • DDC2B supported: Yes
  • Hot-Plug Compatibility: Yes
  • Plug and Play: Yes
  • Daisy-chain connection: No
  • Number of users: 1 user(s)
  • Audio channels: 7.1
