Startech KVM Switch 4 Ports VGA Rack

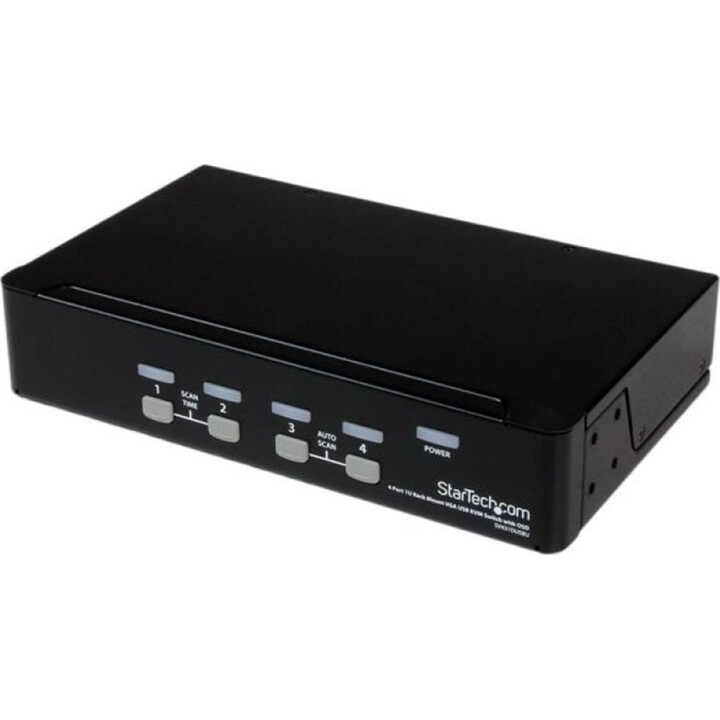

This 1U rackmount 4-port USB KVM switch with OSD, model SV431DUSBU, lets you control multiple USB-based computers from a single console (USB keyboard and mouse, monitor).

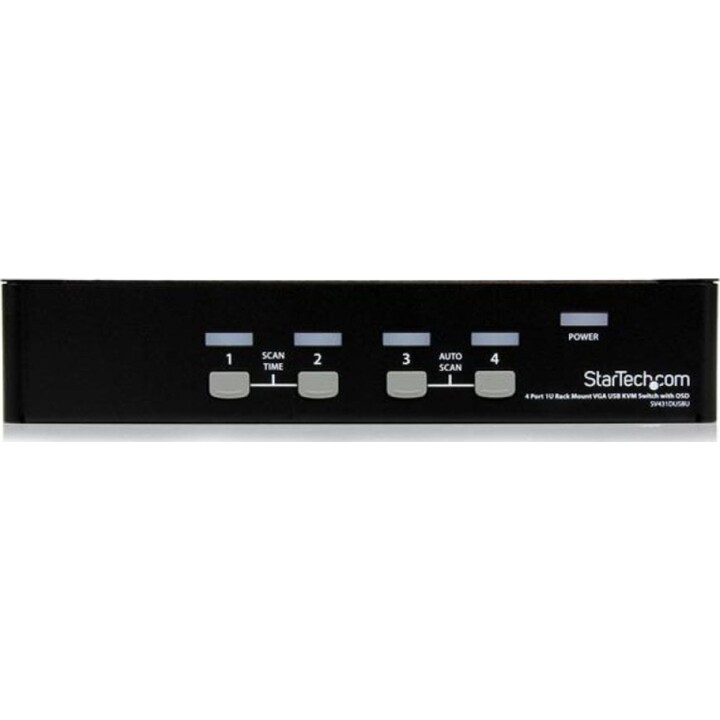

Convenient push-button controls and hotkeys enable fast and reliable switching between connected computers, while auto-scan and manual switching modes, along with an on-screen display (OSD), provide additional control options.

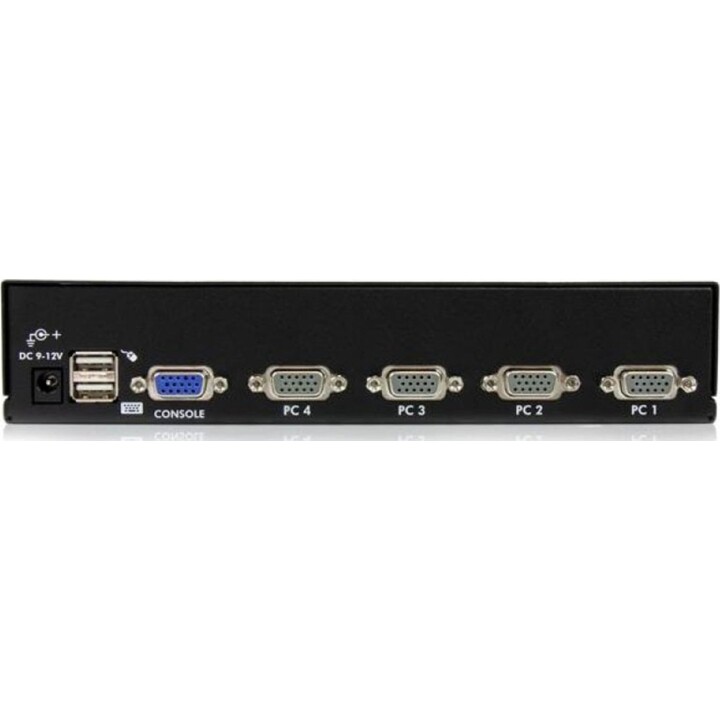

Designed for maximum space efficiency, this USB KVM switch features a slim 1U design that fits seamlessly into any server rack or cabinet (with optional SV431RACK mounting bracket) and allows for rear cable connections, eliminating cable clutter and minimizing space requirements.

Specs:

• Ports and Interfaces
  • Number of computers controlled: 4
  • Keyboard port type: No
  • Mouse port type: No
  • Video port type: VGA
  • Number of VGA (D-Sub) ports: 5
  • Console ports: USB A, VGA (D-Sub)
  • Number of USB ports on the console: 2
  • Number of USB 2.0 ports: 2
  • Audio connection: No
  • DC input socket: Yes

• Performance
  • Maximum resolution: 1920 x 1440 pixels
  • Resolution (maximum analog): 1920 x 1440 Pixels
  • Plug and Play: Yes
  • Chaining: If

• Design
  • Rack mount: Yes
  • Rack capacity: 1U
  • Product color: Black
  • Case material: Steel
  • LED Indicators: Power
  • Shortcut keys: Yes
  • Mean time between failures: 143,000 h
  • Certifications: CE, FCC, TAA, REACH

• Exhibition
  • Built-in screen: No
  • On-Screen Display (OSD): Yes

• Energy control
  • AC input voltage: 110 - 240 V
  • Input current: 0.2 A
  • Output voltage: 9 V
  • Output current: 0.6 A
  • Energy consumption: 5.4 W
  • External power adapter: Yes
  • Plug type: Type M
  • Compatible power plug types: AU, EU, UK, US

• Environmental conditions
  • Operating temperature range: 5 - 40°C
  • Storage temperature range: -20 - 60 °C
  • Relative humidity range for operation: 0 - 80%

• Weight and dimensions
  • Width: 220 mm
  • Depth: 130 mm
  • Height: 43 mm
  • Weight: 957 g

• Packaging
  • Package width: 411 mm
  • Package depth: 215 mm
  • Package height: 89 mm
  • Package weight: 1.6 kg

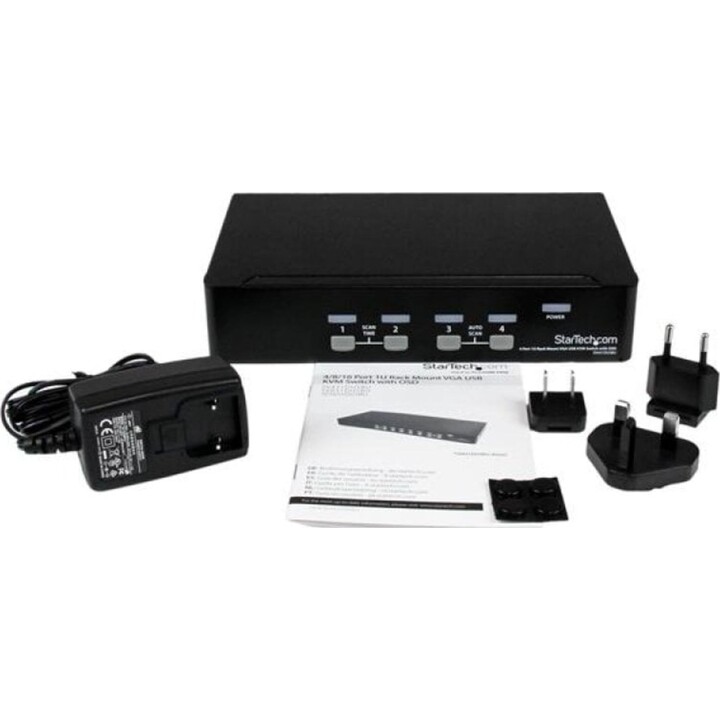

• Package contents
  • User manual: Yes
  • AC adapter included: Yes
  • Rubber foot: Yes

• Technical details
  • Sustainability certifications: RoHS

• Other features
  • Audio support: No
  • IP Control: No
