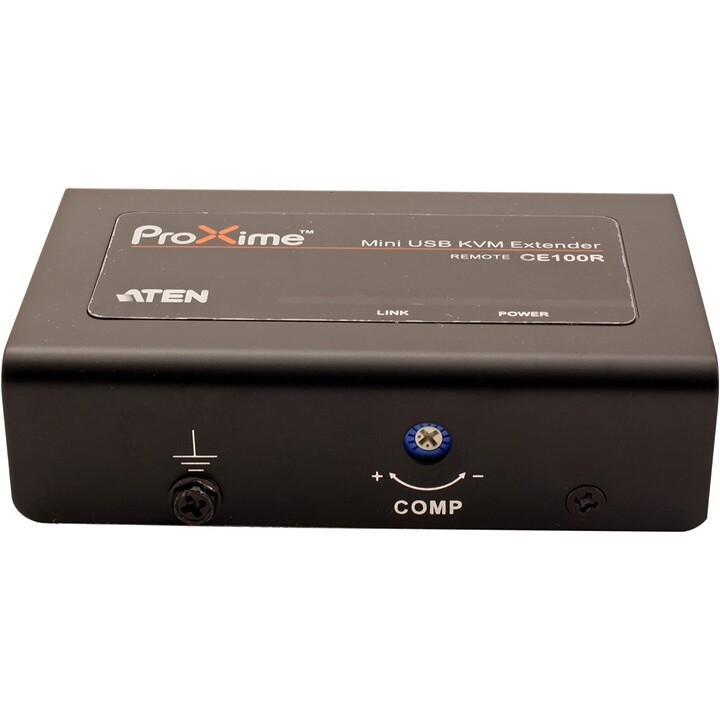

Aten Extend USB KVM Switch

The Aten KVM Extender Kit (Model 09005510) allows you to extend VGA and USB signals over a Cat 5e cable up to 150 meters apart, providing flexible workstation setups. It supports dual console operation, enabling control from both local and remote USB keyboard, monitor, and mouse consoles. The extender delivers high resolution video up to 1920 x 1200 at 60Hz for distances up to 30 meters, 1600 x 1200 at 60Hz up to 100 meters, and 1280 x 1024 at 60Hz up to 150 meters.

Designed for reliability, it features built-in 8KV/15KV ESD protection and 2KV surge protection to safeguard connected devices. The unit includes pushbutton operating mode selection for easy switching between local and auto modes. Automatic gain control adjusts signal strength to compensate for cable length, ensuring stable video quality.

Installation is straightforward with no software requiredsimply connect the cables to your devices. The extender is rack mountable and supports multiple platforms including Windows and Linux. Its metal housing and compact dimensions (12.50 x 8.15 x 2.50 cm) make it durable and space-efficient.

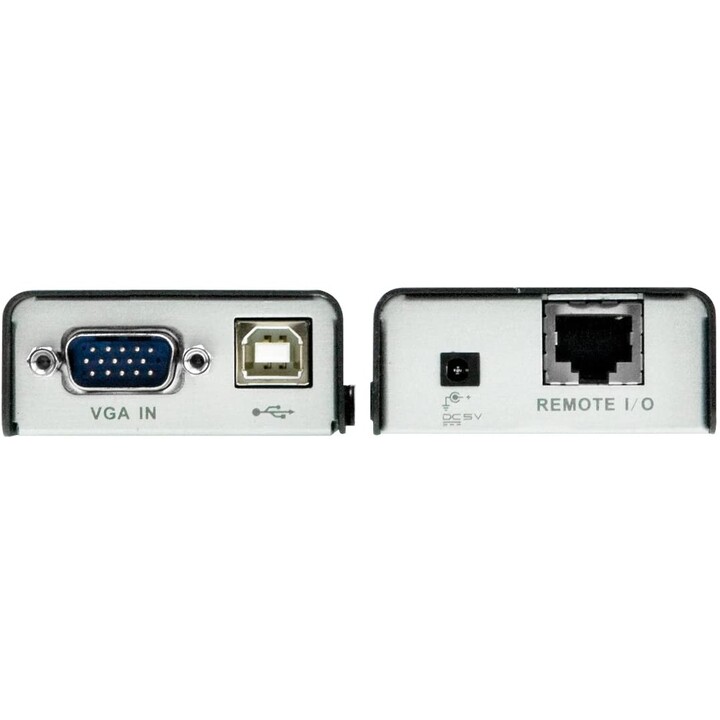

Connectivity includes USB Type A ports for keyboard and mouse, HDB-15 for video, SPHD-17 for KVM, RJ-45 for unit-to-unit connection, and a DC power jack. Operating temperature ranges from 0 to 50°C with storage temperature from -20 to 60°C, suitable for various environments.

This Aten KVM Extender Kit is ideal for extending your workstation setup while maintaining high video quality and reliable peripheral control over long distances.
