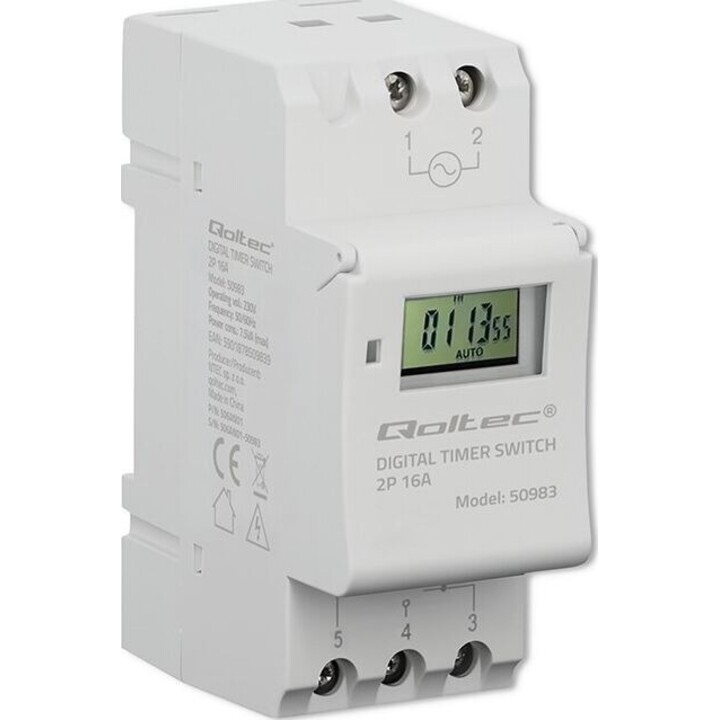

Electronic timer switch for DIN rail with battery

Electronic timer switch for DIN rail with battery

The Qoltec electronic timer switch is a versatile DIN rail-mounted device designed to automate the operation of electrical equipment according to your schedule. With a maximum load of 16A/3600W, it is suitable for a wide range of applications, from small home systems to advanced industrial installations. The built-in rechargeable battery ensures that your programmed settings are retained for up to 180 days without power, protecting you from losing configurations during outages.

Featuring an advanced microprocessor system, this timer provides stable measurement, precision, and reliable switching. The clear, backlit LCD display with a protective cover simplifies configuration and parameter reading. You can set up to 16 daily or weekly programs, 18 pulses with 1-minute accuracy, and benefit from automatic time correction of 30 seconds per week. The manual override function allows you to set the timer to always on or off, while the random setting can simulate occupancy by switching lights on and off at random times.

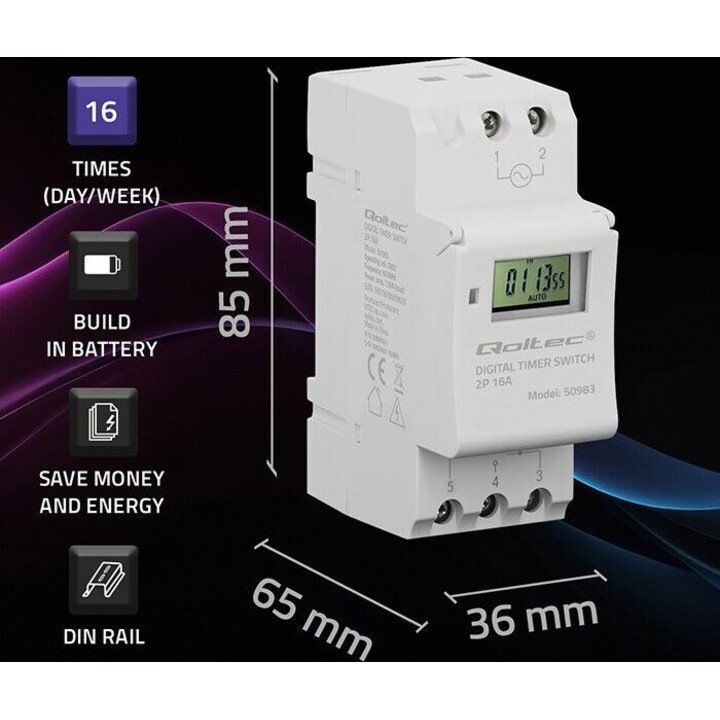

Installation is straightforward thanks to DIN35 rail mounting. The device operates in temperatures from -10°C to +40°C and comes in a white housing with dimensions of 65 x 36 x 85 mm. Whether you need to control lighting, heating, air conditioning, motors, pumps, or home audio/video equipment, the Qoltec timer switch offers a reliable and energy-efficient solution.

Características principales

• Maximum load: 16A / 3600W
• DIN35 rail mounting for easy installation
• Built-in rechargeable battery retains settings up to 180 days without power
• Backlit LCD display with protective cover
• Up to 16 daily or weekly settings, 18 pulses with 1-minute accuracy
• Manual override and random mode
• Automatic time correction: 30 seconds per week

Especificaciones técnicas

Preguntas frecuentes

Does the timer have a battery?

Yes, it has a built-in rechargeable battery that recharges during operation and retains settings for up to 180 days without power supply.

What is the maximum load?

The maximum load is 16A / 3600W, making it suitable for a variety of electrical devices.

How many programs can I set?

You can set up to 16 daily or weekly programs, and up to 18 pulses with 1-minute accuracy.

What is the operating temperature range?

The device operates in temperatures from -10°C to +40°C.

Es para ti si...

• You want to automate lighting, heating, or industrial equipment on a schedule.
• You need a DIN rail-mounted timer with battery backup to retain settings during power outages.
• You value precise control with multiple programs and manual override.
• You are looking for a reliable and energy-efficient solution for home or office automation.
