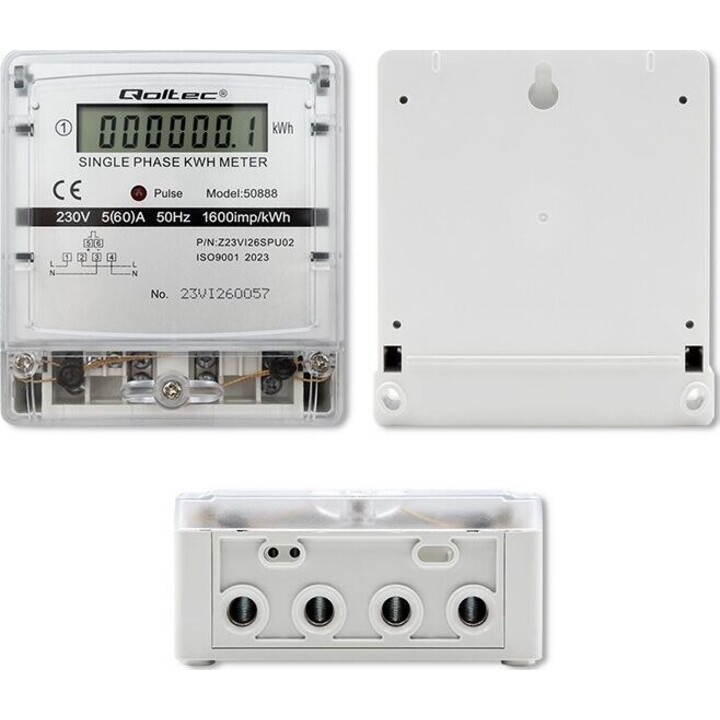

Single phase electronic meter 230V LDC

The Qoltec 50888 single-phase electronic meter is designed for real-time monitoring of electricity consumption in residential, commercial, and industrial installations. It measures energy usage of single-phase consumers supplied with 230V AC at 50Hz, displaying the data on a clear LCD screen.

The device features an LED indicator that flashes at a rate proportional to energy consumption (1600 imp/kWh), while the LCD shows the accumulated energy in kWh. With a direct measurement range of 5(60)A and accuracy class 1.0, it complies with IEC 62053-21 and DIN EN50022 standards. Its compact dimensions (46 x 100 x 114 mm) and wide operating temperature range (-25°C to +70°C) make it suitable for various environments.

Características principales

• Single-phase, two-wire, unidirectional energy measurement
• 6+1 digit LCD display for kWh readings
• Direct measurement: 5(60)A, base current 5A, max current 60A
• Accuracy class 1.0, pulse constant 1600 imp/kWh
• Operating temperature: -25°C ~ +70°C
• Dimensions (D/L x W x H): 46 x 100 x 114 mm
• Connectivity: 4G LTE

Especificaciones técnicas

Preguntas frecuentes

What is the measurement range of this meter?

The meter has a base current of 5A and a maximum current of 60A, with direct measurement up to 60A.

Does it support bidirectional energy measurement?

No, it is unidirectional and counts energy regardless of the direction of flow.

What is the accuracy class?

The accuracy class is 1.0, compliant with IEC 62053-21.

Can it be used outdoors?

It operates in temperatures from -25°C to +70°C, but installation should follow standard indoor practices unless specified otherwise.

Es para ti si...

• Necesitas monitorear el consumo eléctrico en tiempo real en instalaciones monofásicas
• Buscas un medidor compacto y fácil de instalar
• Requieres precisión clase 1.0 y cumplimiento con estándares internacionales
