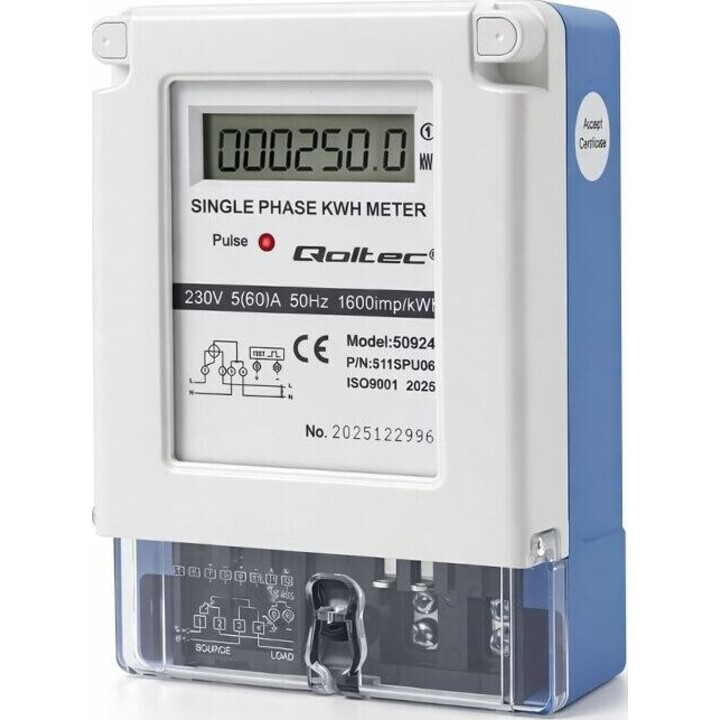

Single phase electronic meter 230V 60A LCD

The Qoltec single-phase electronic meter is a compact and precise device for monitoring electricity consumption in single-phase installations powered by 230V AC at 50Hz. It provides real-time measurement of energy usage, making it an ideal tool for households, workshops, small industrial facilities, and photovoltaic systems where auxiliary energy measurement is needed.

Equipped with a clear 6+1 LCD display, the meter shows energy consumption in kWh, calculated from the pulse output. The LED indicator flashes at a frequency proportional to the energy consumed, with a pulse rate of 1600 pulses/kWh, allowing quick visual feedback of power usage. The meter is unidirectional and measures energy regardless of the direction of flow, ensuring reliable readings in standard installations.

With a direct measurement range of 5(60)A, a base current of 5A, and a maximum current of 60A, this meter suits a wide range of residential and light commercial applications. It complies with IEC 62053-21 and DIN EN50022 standards, features accuracy class 1.0, and includes a transparent terminal cover for safe operation. Its compact dimensions of 111 x 58 x 158 mm and white color facilitate easy installation in standard electrical panels.

Características principales

• Single-phase electronic meter for 230V AC, 50Hz
• Unidirectional measurement, works regardless of energy flow direction
• 6+1 LCD display showing energy consumption in kWh
• Direct measurement 5(60)A, base current 5A, maximum current 60A
• LED indicator with 1600 pulses/kWh
• Accuracy class 1.0, complies with IEC 62053-21 and DIN EN50022
• Transparent terminal cover for safe use
• Compact size: 111 x 58 x 158 mm, white color
• Operating temperature: -25°C ~ +70°C
• Not MID-certified

Especificaciones técnicas

Preguntas frecuentes

What is the maximum current this meter can handle?

The meter supports a direct measurement range of 5(60)A, with a base current of 5A and a maximum current of 60A.

Does this meter require an external power supply?

No, the meter is powered directly from the 230V AC circuit it measures. It does not require batteries or an external power source.

Can this meter measure energy in both directions?

No, it is a unidirectional meter. It measures energy consumption regardless of the direction of flow, but it is designed for standard single-phase installations.

Is this meter MID-certified for billing purposes?

No, this meter is not MID-certified. It is intended for monitoring and sub-metering applications, not for official billing.

Es para ti si...

• Necesitas monitorear el consumo eléctrico en una instalación monofásica de 230V.
• Buscas un medidor compacto y fácil de instalar en cuadros eléctricos estándar.
• Quieres visualizar el consumo en kWh con una pantalla LCD clara.
• Necesitas medir el consumo de electrodomésticos específicos, talleres o sistemas fotovoltaicos.
• Valoras la precisión de clase 1.0 y el cumplimiento de normas IEC 62053-21 y DIN EN50022.
