The PRO series helps users work smarter by offering an efficient and productive experience. With stable functionality and high-quality assembly, PRO series motherboards provide not only streamlined professional workflows, but also less troubleshooting and longevity.
Characteristics:
- Supports 3rd Generation AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
- Admits DDR4 memory, up to 4600 (OC) MHz

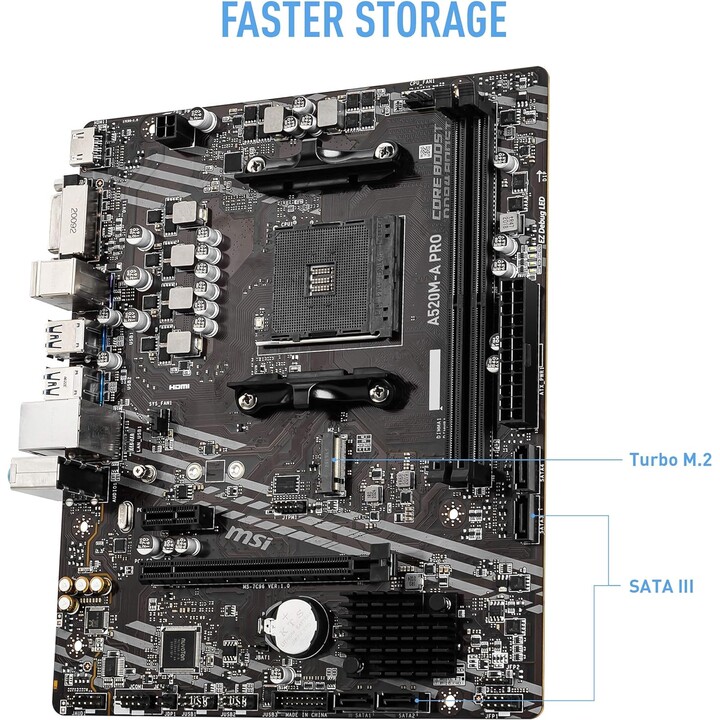

- Turbo M.2: Running on PCI-E Gen3 x4 maximizes performance for NVMe-based SSDs

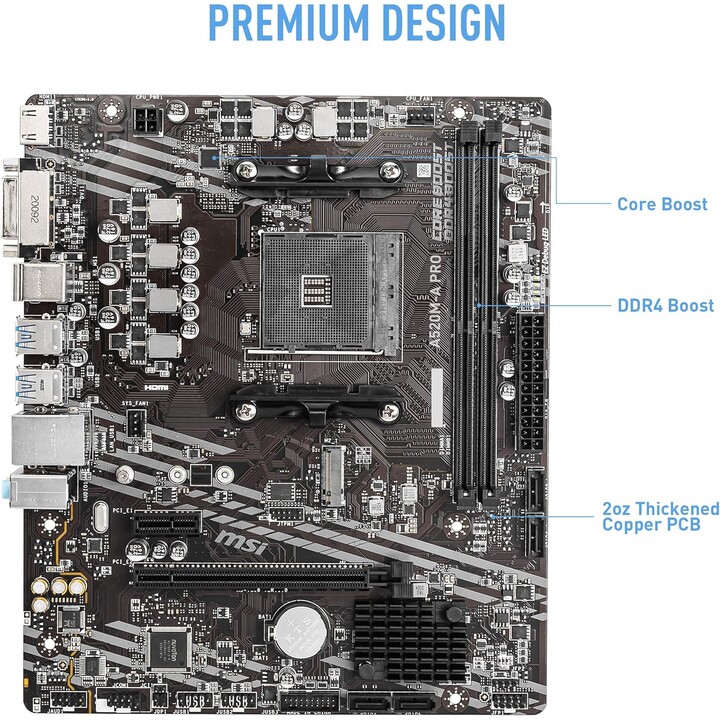

- Core Boost: With premium design and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An improved PCB design improves heat dissipation and performance reliability.

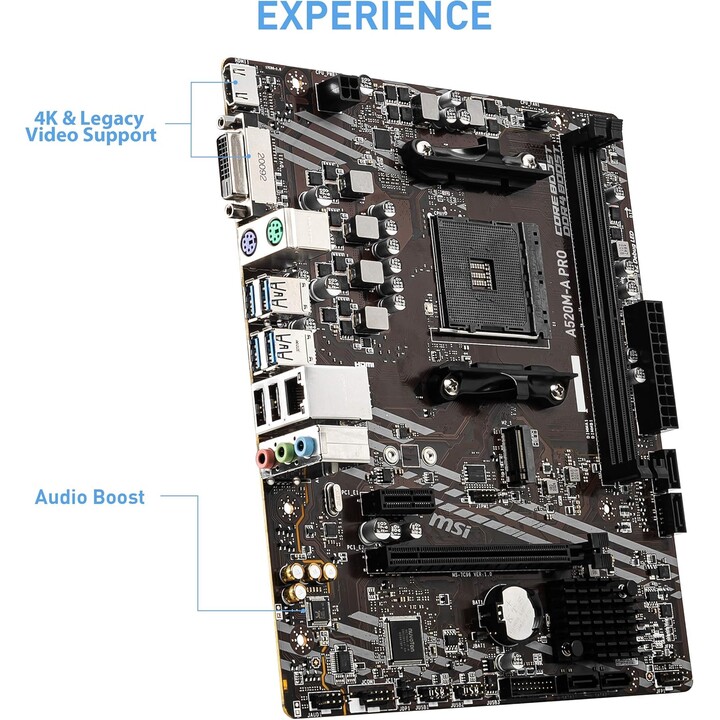

- Audio Boost Reward your ears with studio sound quality
- Dragon Center A completely new software that integrates all MSI eMSIusive tools with an easy-to-use user interface.
Specifications:
- Socket AMD Socket AM4
- CPU (Max Support) Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen4000 G-Series Desktop Processors
- Chipset AMD? A520 Chipset
- DDR4 Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
- Memory Channel Dual
- DIMM Slots 2
- Max Memory (GB) 64
- PCI-E x16 1
- PCI-E Gen 3
- PCI-E x1 1
- SATAIII 4
- M.2 Slot 1
- RAID 0/1/10
- TPM (header) 1

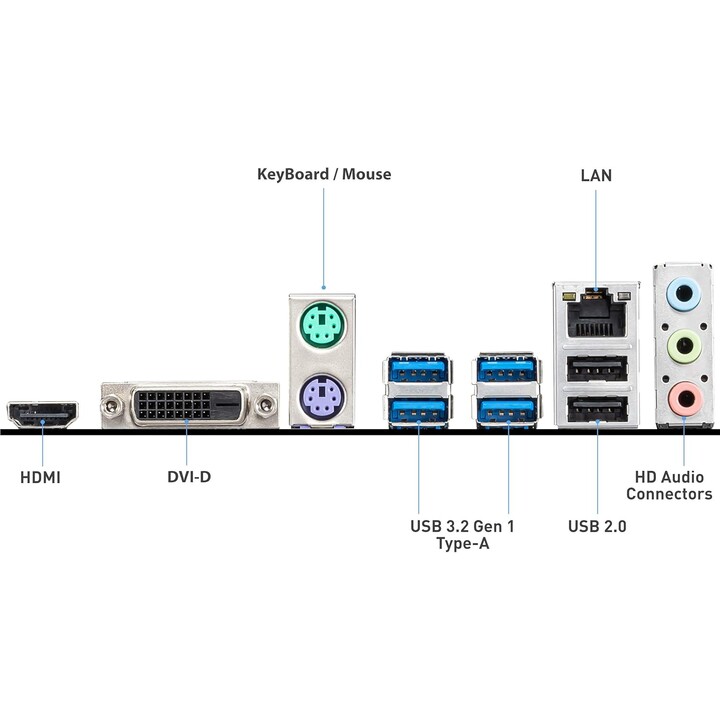

- LAN 1x Realtek? RTL8111H Gigabit LAN
- USB 3.2 ports (Front) 2(Gen 1, Type A)
- USB 3.2 ports (Rear) 4(Gen 1, Type A)
- USB 2.0 ports (Front) 4
- USB 2.0 ports (Rear) 2(Type A)
- Serial ports(Front) 1
- Audio ports (Rear) 3 HD audio connectors
- DVI-D 1
- HDMI 1
- DirectX 12
- Form Factor MATX
- Operating System Support for Windows 10 64-bit
