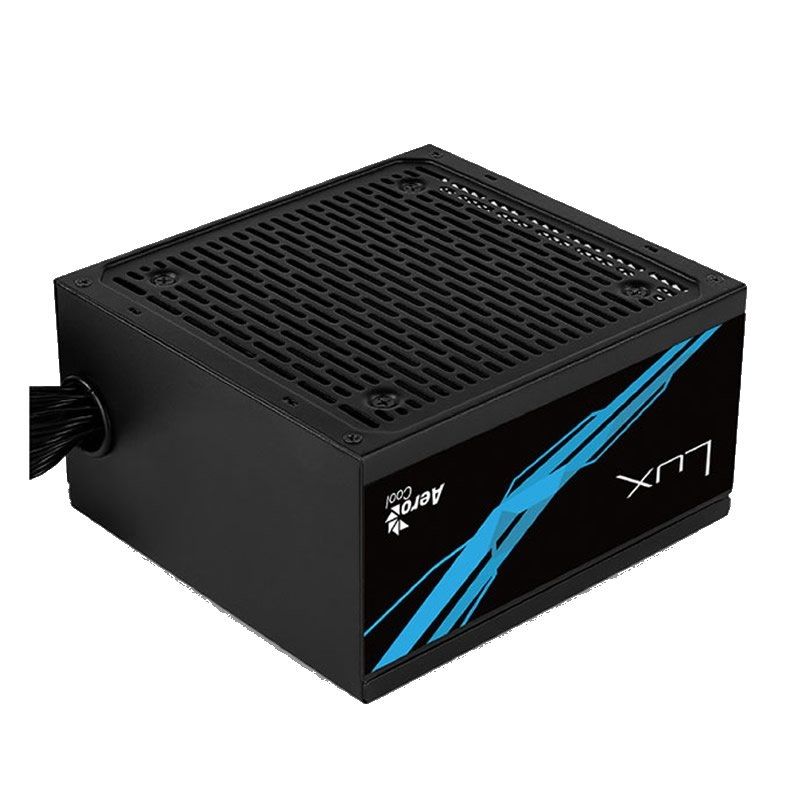

Aerocool Lux 550W 80 Plus Bronze Black

Aerocool Lux bronze certified EU 80Plus 230V power supply for high efficiency performance.

Characteristics:

• Stylish, elegant design: With a sleek and stylish design, the LUX power supply is the perfect balance between power and luxury. This power supply highlights the appearance of your equipment while delivering maximum efficient power.
• Enhanced Air Ventilation - 30% increased ventilation area on the power supply body allows increased airflow and circulation, preventing the system from overheating.
• Optimized fan speed: Silent 12cm black fan with optimized thermal fan speed control. The fan runs at start speed (less than 800 RPM) before reaching 60% load at 25 ° C ambient temperature.
• Improved Cable Management: Soft, black and flat cables allow for more convenient cable management and easier installation.
• Compatibility: Compatible with all Intel form factors up to ATX12V Ver. 2.4.
  • Certified to Bronze EU 80Plus 230V for high efficiency performance
  • Silent 12cm black fan with optimized thermal fan speed control. Fan runs at start speed (less than 800 RPM) before reaching 60% load at 25 ° C ambient temperature
  • Soft, black, flat cables allow for more convenient cable management and easier installation
  • Compatible with all Intel form factors up to ATX12V Ver. 2.4

Aerocool Lux Specifications:

• Ports and Interfaces
  • Motherboard power supply: 20 + 4 pin ATX
  • Motherboard power cable length: 50cm
  • Number of SATA Power Connectors: 4
  • Number of PATA power connectors: 2
  • SATA Power Cable Length: 550mm
  • PCI Express power connectors (6 + 2 pin): 1
  • PCI Express power cable length: 45cm
  • CPU power connector (4 +4 pins): Yes
  • CPU power cable length: 55 cm
  • ATX power connector (20 + 4 pin): Yes
  • PCI Express connector: Yes

• Power control
  • Total power: 550 W
  • AC input voltage: 220 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 4 A
  • Power factor: 0.9
  • Power factor correction type (PFC): Active
  • Combined Power (3.3V): 100W
  • Combined power (+ 12V): 504 W
  • Combined power (+5 V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5 VSB): 12.5 W
  • Maximum output current (+ 3.3V): 20 A
  • Maximum output current (+ 12V): 42 A
  • Maximum output current (+ 5V): 20 A
  • Maximum output current (-12V): 0.3 A
  • Maximum output current (+ 5Vsb): 2.5 A
  • Efficiency: 88%

• Design
  • Color of product: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of Fans: 1 Fan (s)

• Performance
  • Use with: PC
  • Power supply form factor (PSU): ATX
  • 80 PLUS Certification: 80 PLUS Bronze
  • ATX version: 2.4

• Logistics data
  • Main box width: 25cm
  • Case Length: 49.5cm
  • Height of main box: 21.5 cm
