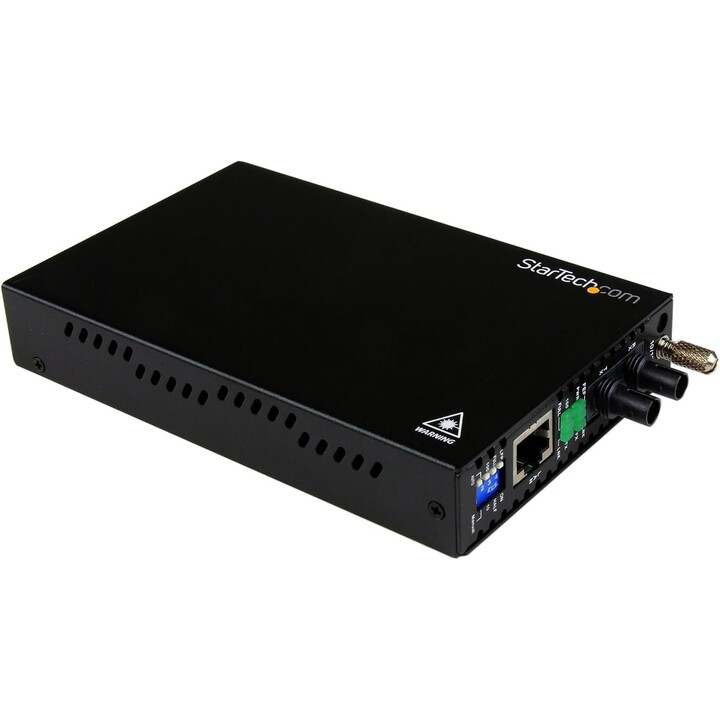

The STARTECH ET90110ST2 is a media converter designed to bridge copper Ethernet networks with fiber optic cabling. It converts 10/100Base-TX (RJ45) to 100Base-FX (ST) over multi-mode fiber, extending network distances up to 2km. This device is ideal for connecting remote workstations, surveillance cameras, or extending network segments beyond the 100m limit of copper Ethernet.
Featuring a compact metal housing, the ET90110ST2 ensures reliable performance in industrial or office environments. It supports full-duplex operation and is plug-and-play, requiring no software configuration. The unit includes LED indicators for power, link/activity, and fiber status, simplifying troubleshooting. With its robust design and straightforward installation, this media converter is a cost-effective solution for integrating fiber into existing copper networks.
| Product Type | Media Converter |
| Copper Interface | 1x RJ45 (10/100Base-TX) |
| Fiber Interface | 1x ST (100Base-FX) |
| Fiber Type | Multi-mode |
| Max Distance | 2 km (at 100 Mbps) |
| Wavelength | 1310 nm |
| Data Rate | 10/100 Mbps (auto-negotiation) |
| Duplex Mode | Full-duplex |
| Power Supply | External AC adapter (included) |
| LED Indicators | Power, Link/Activity (Copper), Link/Activity (Fiber) |
| Housing Material | Metal |
| Dimensions (WxDxH) | 67 x 75 x 22 mm |
| Weight | 85 g |
| Operating Temperature | 0°C to 50°C |
| Compliance | IEEE 802.3u, IEEE 802.3 |
