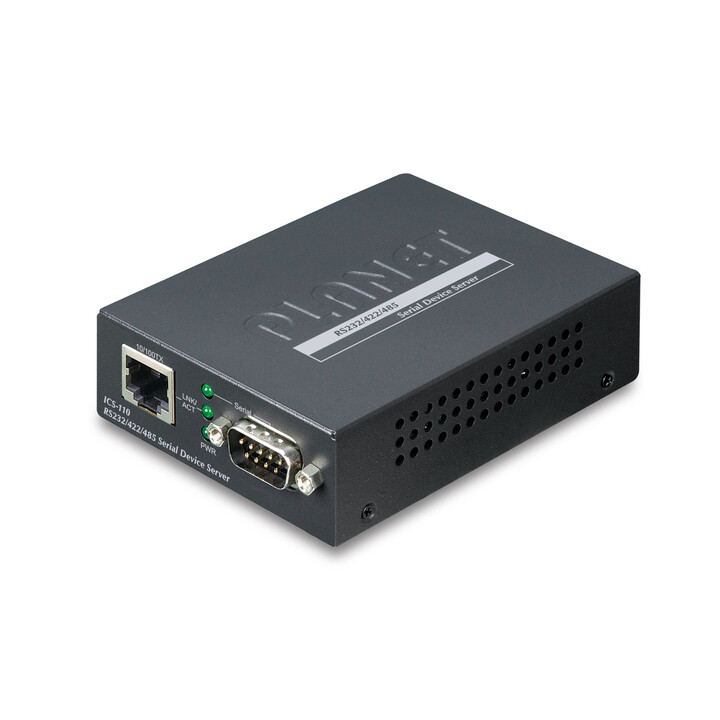

PLANET ICS-110 serial server
Reference:
ICS-110
EAN:
4711605285001
Condition:
New
Price:
€125.05
VAT included
€101.67
Without tax
- 1-port RS-232 serial to 10/100Base-TX Ethernet conversion
- Supports baud rates up to 921.6 Kbps
- TCP Server/Client, UDP, and Pair Connection modes
- Wide power input range: 12-48V DC with reverse polarity protection
- DIN-rail and wall-mountable design for industrial environments
Technical details
Certification
FCC Part 15 Class A, CE Certification Class A
Flow control type
DTR/DSR, RTS/CTS, XON/XOFF
serial port
1
data bits
7, 6, 5, 8
network standards
IEEE802.3, IEEE802.3u
Flow control support
Yes
parity bits
Optical Disc Drive (ODD), Space, No, Mark, Even
stop bit
1, 1.5, 2
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports
1
wiring technology
10/100Base-T(X)
Design
product color
Black
Environmental conditions
Operating temperature range
-10 - 60°C
Relative humidity range for operation
5 - 95%
Storage temperature range
-10 - 70°C
Indication
Link/Act LED
Yes
LED indicators
System
Weight and measurements
Dimensions (Width x Depth x Height)
97 x 70 x 26mm
Weight
184g
-
Battery includedNo
