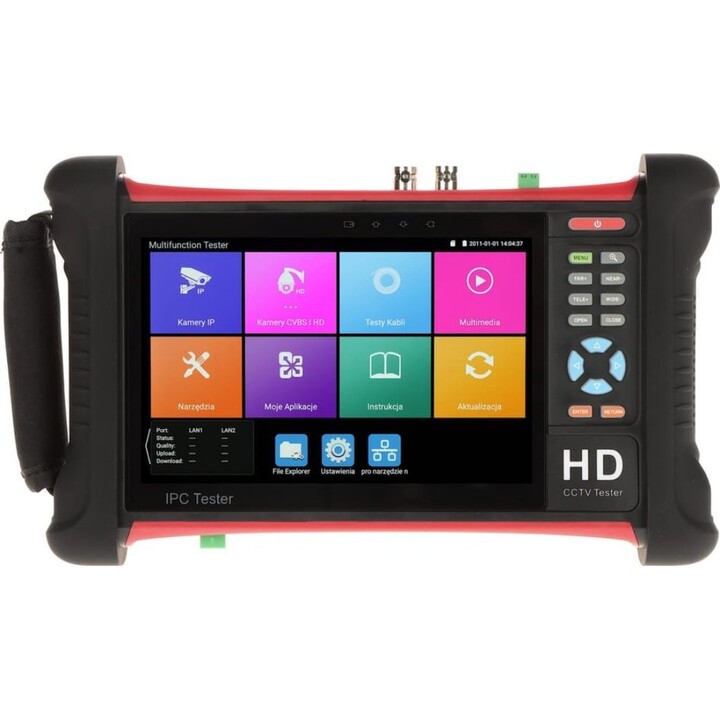

Cs-H8-70H Cctv Multifunction Tester Delta Tester
- 7-inch high-brightness LCD touch screen
- Supports 8MP H.265/H.264 camera test
- Built-in PoE (48V/24V) power output
- PTZ control via RS485/RS232 and coaxial
- Cable tracing and network cable test functions
CS-H8-70H CCTV MULTIFUNCTION TESTER DELTA TESTER
The CS-H8-70H is a professional CCTV multifunction tester designed for security system installers and maintenance technicians. It features a 7-inch high-brightness LCD touch screen that delivers clear image preview even under direct sunlight. The tester supports up to 8MP resolution for H.265/H.264 cameras, ensuring compatibility with the latest IP and analog surveillance equipment.
Equipped with built-in PoE (48V/24V) output, the CS-H8-70H can power cameras directly during installation and testing. It offers comprehensive PTZ control via RS485, RS232, and coaxial protocols, along with advanced cable tracing and network diagnostics. The device also includes a digital multimeter for voltage and resistance measurements, making it an all-in-one tool for CCTV system deployment.
| Display | 7-inch LCD, 1024x600, touch screen |
| Camera Test | 8MP H.265/H.264, CVBS, AHD, TVI, CVI |
| PoE Output | 48V/24V, max 25W |
| PTZ Control | RS485, RS232, coaxial (Pelco-D/P, Samsung, etc.) |
| Cable Tracing | Coaxial cable and network cable tracing |
| Network Test | IP address scan, ping, port test, DHCP |
| Multimeter | DC/AC voltage, resistance, continuity |
| Power Supply | DC 12V 2A (adapter included) |

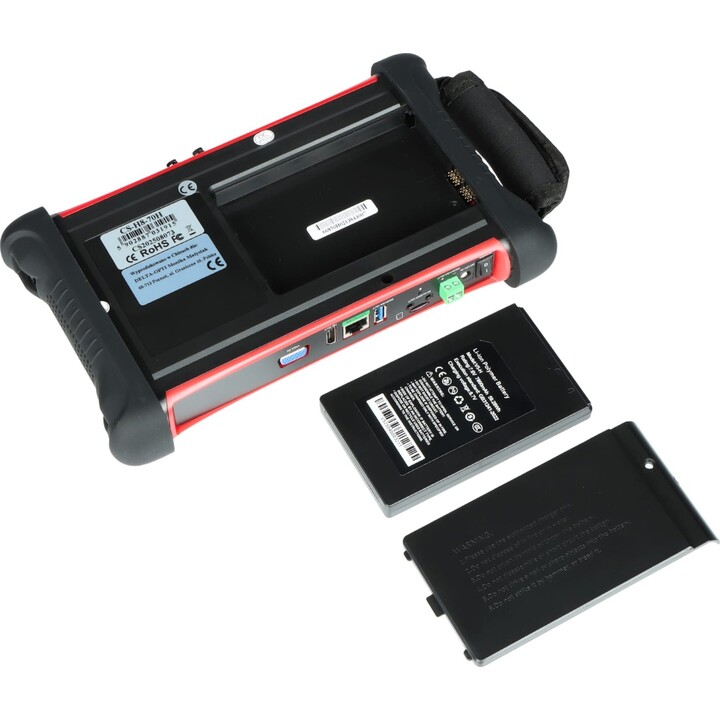

| Battery | Built-in rechargeable Li-ion, 7.4V 5000mAh |
-
Brand
-
ReferenceCS-H8-70H
-
In stock3 Items
-
ConditionNew
-
EAN135902887031915
-
MPNCS-H8-70H
| Brand | Dipol |
|---|---|
| Country | Poland |
| Address of origin | Dipol Sp.j., ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| EU responsible person | Dipol Sp.j. |
| Address | ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| [email protected] | |
| Phone | +48 12 644 29 13 |
