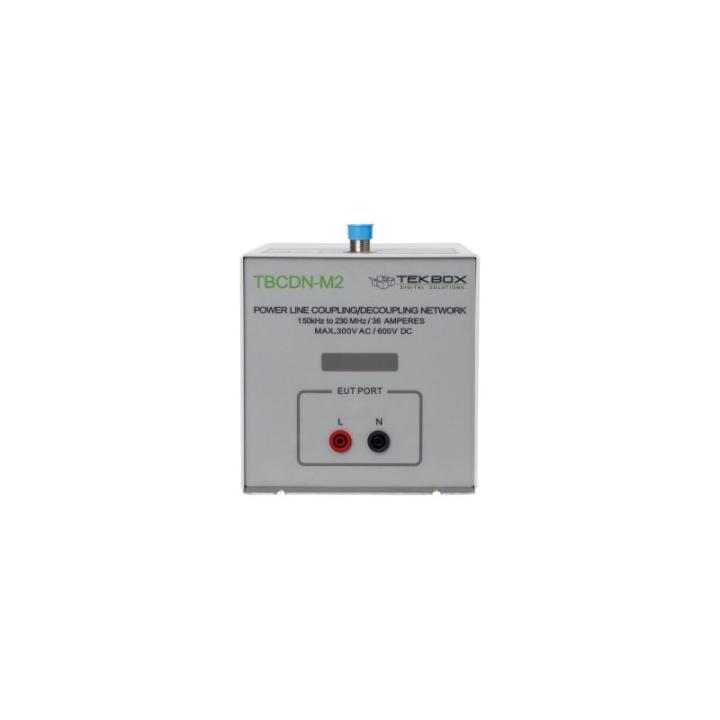

TekBox TBCDN-M2 Coupling-Decoupling Networks (CDN) M2

TBCDN-M2 Coupling of Decoupling Networks M2 The TBCDN-M2 is a coupling-decoupling network for conducted immunity testing in accordance with IEC 61000-4-6.The TBCDN-M2 complies with IEC 61000-4-6 Annex D2. It was developed to inject common-mode interference signals in the frequency range from 150 kHz to 230 MHz into unshielded AC and DC power supply lines.SPECIFICATIONS Maximum supply voltage: 300 V AC, 600 V DC Maximum current: 36 A Frequency range: 150 kHz – 230 MHz Maximum RF input power: 6.5 W CW Maximum RF input voltage: 32 V Common-mode impedance: 150 kHz – 24 MHz: 150 Ω 20 Ω 24 MHz – 80 MHz: 150 Ω + 60 Ω / – 45 Ω 80 MHz – 230 MHz: 150 Ω 60 Ω Voltage division ratio: 150 kHz – 80 MHz: 9.5 dB ± 1 dB 80 MHz – 230 MHz: 9.5 dB ± 3 dB RF input: N-type female EUT/AE connectors: 4 mm banana-style fuse sockets, 4 mm slots in the base plate for GND connection Housing material: powder-coated aluminum, stainless steel
