Optical Reflectometer with CCTV Tester CS-R8-80H

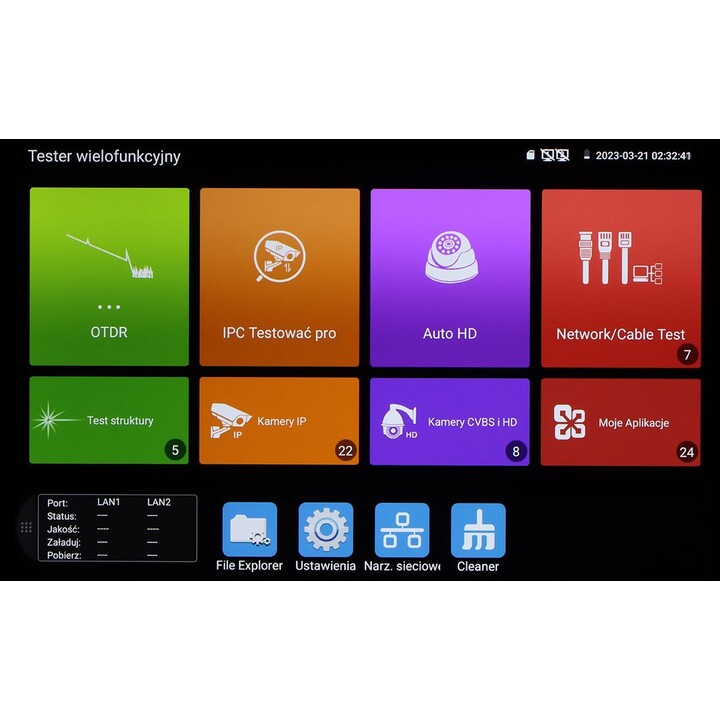

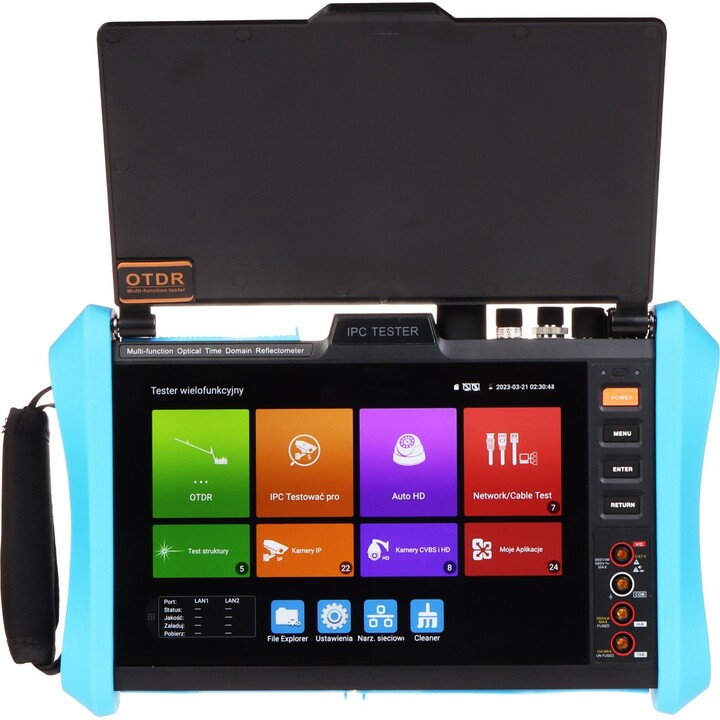

The CS-R8-80H is a multifunctional field instrument that combines an Optical Time Domain Reflectometer (OTDR) with a comprehensive CCTV tester. Designed for fiber optic network installation and maintenance, it offers precise fault location and characterization for single-mode fibers up to 80km. The OTDR operates at 1310nm and 1550nm wavelengths with a dynamic range of 28/26dB, ensuring accurate detection of events and attenuation. Its compact design integrates a 7-inch LCD touchscreen for easy operation and data analysis.

In addition to OTDR functions, the CS-R8-80H includes a full CCTV tester supporting IP camera testing, PTZ control, and PoE output (48V). It also features a visual fault locator (VFL) with 10mW output for identifying breaks and bends. The device stores up to 1000 test traces and supports multiple data formats for reporting. With its rugged build and rechargeable battery, it is ideal for field technicians working on fiber and surveillance systems.
