CS-H9-70E CCTV Tester

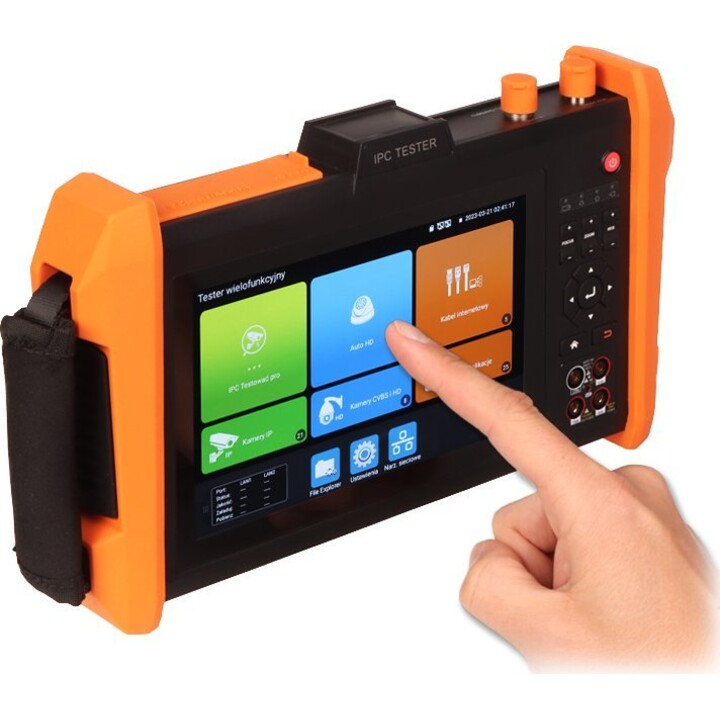

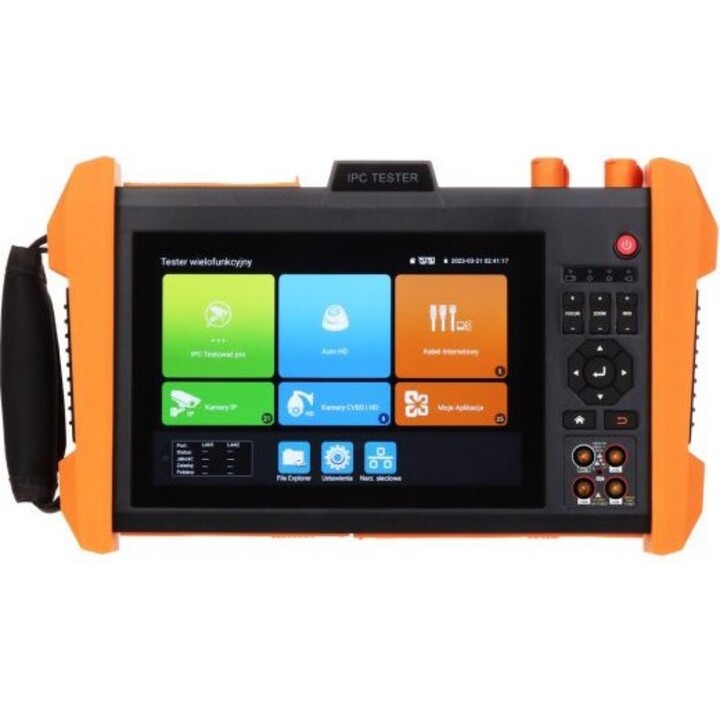

- 7-inch IPS touchscreen display (1024x600)
- Supports H.265+/H.265/H.264 IP cameras up to 4K
- Built-in PoE (48V/24W) for powering cameras
- Coaxial camera testing (CVBS, AHD, CVI, TVI)
- WiFi connectivity and cable tracing function
CS-H9-70E CCTV Tester
The CS-H9-70E is a professional all-in-one CCTV tester designed for security system installers and maintenance technicians. It features a 7-inch IPS touchscreen with 1024x600 resolution, providing clear image preview for both IP and coaxial cameras. The tester supports H.265+ compression and can test IP cameras up to 4K resolution, ensuring compatibility with the latest surveillance equipment.
With built-in PoE (48V/24W), the CS-H9-70E can power cameras directly during installation, eliminating the need for separate power adapters. It also includes WiFi connectivity for wireless camera testing, a cable tracing function to identify and test coaxial cables, and a variety of test patterns for monitor calibration. The device is powered by a rechargeable lithium battery for field use.
| Display | 7-inch IPS touchscreen, 1024x600 |
| IP Camera Support | H.265+/H.265/H.264, up to 4K (3840x2160) |
| Coaxial Camera Support | CVBS, AHD, CVI, TVI (up to 8MP) |
| PoE Output | 48V DC, 24W |
| WiFi | 802.11 b/g/n, 2.4GHz |
| Cable Tester | UTP cable tracing and continuity test |

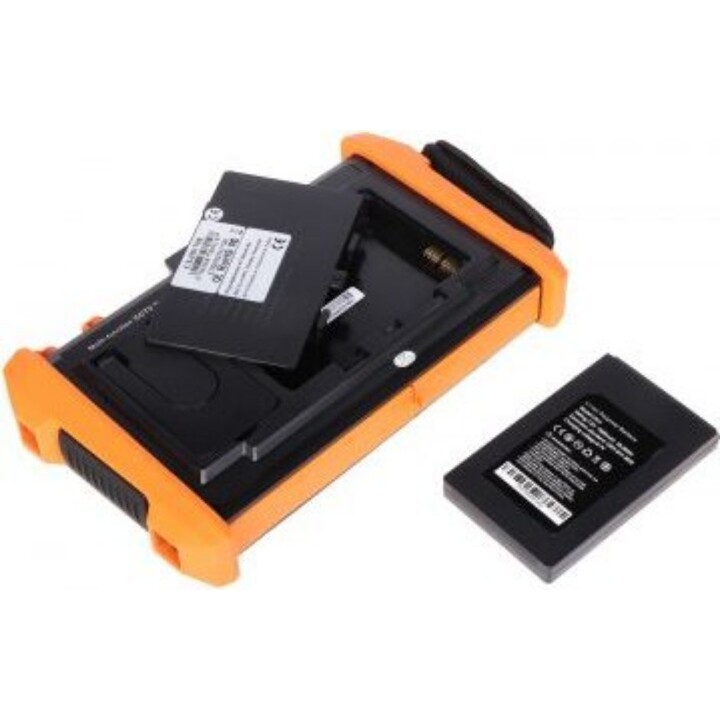

| Battery | Rechargeable Li-ion, 7.4V/5000mAh |
| Video Output | HDMI (up to 1080p) |
| USB Ports | 2x USB 2.0 |
| Network | 10/100/1000Mbps Ethernet |
-
Brand
-
ReferenceCS-H9-70E
-
ConditionNew
-
EAN135902887089107
-
MPNCS-H9-70E
| Brand | Dipol |
|---|---|
| Country | Poland |
| Address of origin | Dipol Sp.j., ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| EU responsible person | Dipol Sp.j. |
| Address | ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| [email protected] | |
| Phone | +48 12 644 29 13 |
