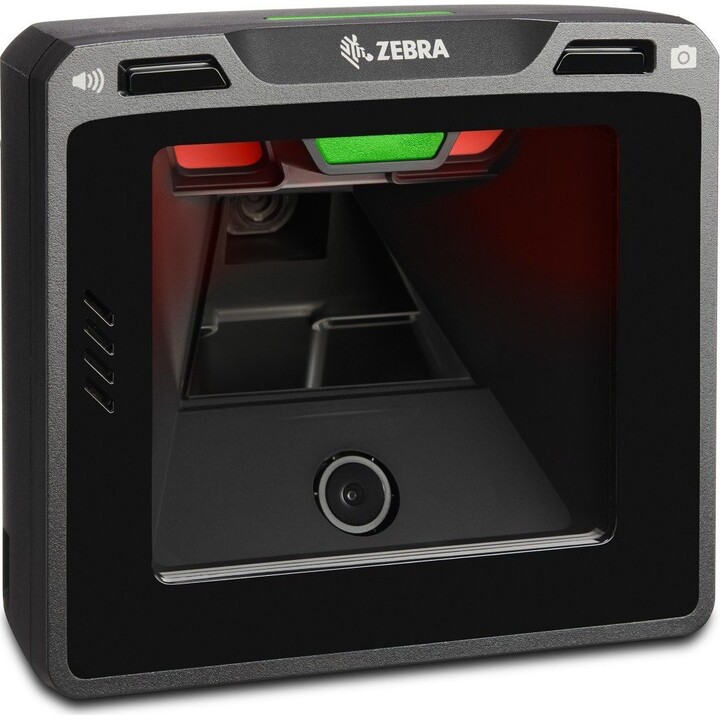

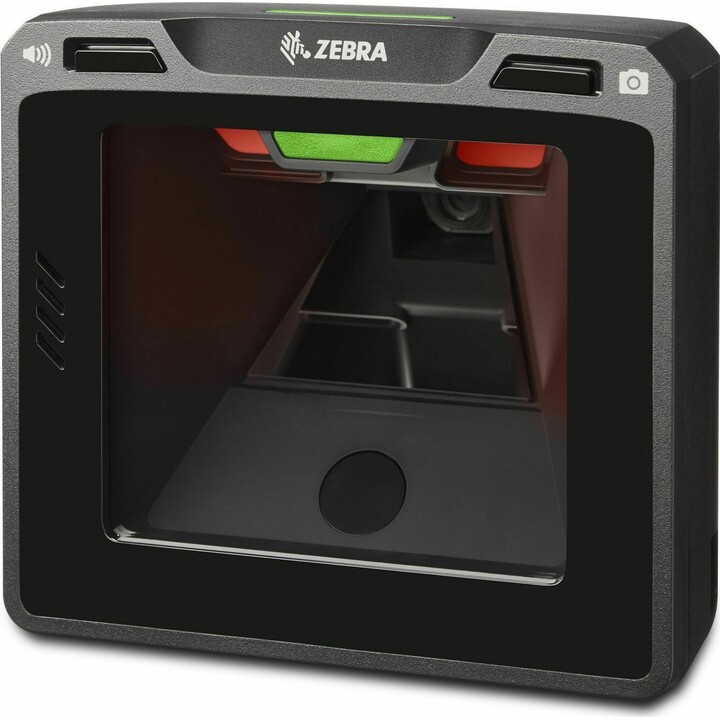

SP72 Series Flatbed Scanner

Key features SP7201-SV00004ZCWWW

• Type and mounting

  • Model SP72-V vertical, single-plane, for mounting on counter, wall or inside SCO/kiosk cabinet.

  • Flat front design, ideal for integration into self-checkout structures and compact enclosures.

• Optics and performance

  • Single Plane configuration , USB Only, Standard Range, high performance 2D imager for 1D, 2D and Digimarc.

  • Fast omni-directional reading of printed and on-screen codes, optimised for high turnover retail.

• Connectivity and power

  • USB 5 VDC only: powered directly from the host via USB cable (no AUX or other interfaces).

  • Compatible with standard USB and high power BC1.2 ports.

• EAS functions and options

  • Version with Checkpoint EAS, includes CBL-CE0072 cable for connection to EAS system and simultaneous deactivation when scanning.

  • No AUX port (does not support secondary scanner connected to main body).

• Usage environment

  • Designed for grocery, convenience, pharmacy and specialty retail, both attended checkout and SCO.

  • Part of the SP72 Single-Plane series, designed to improve checkout experience and reduce shrinkage.
