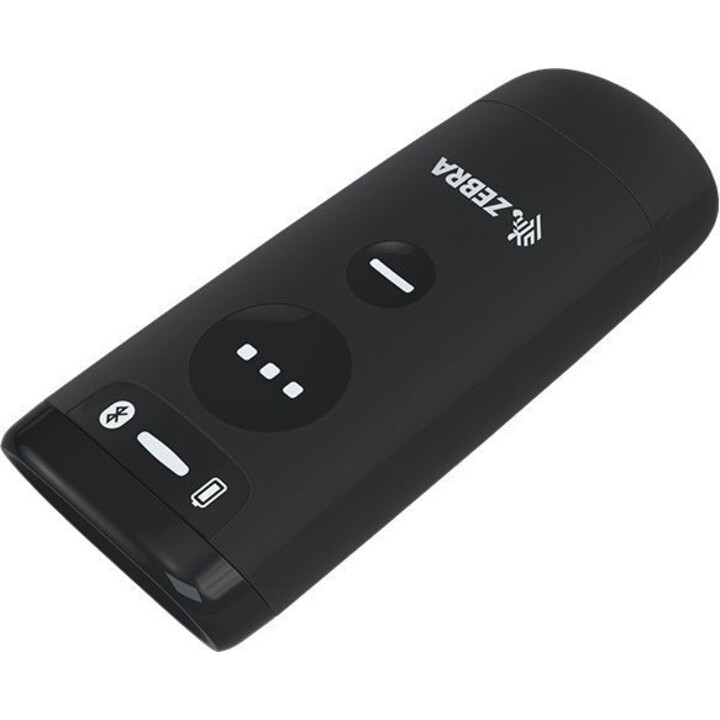

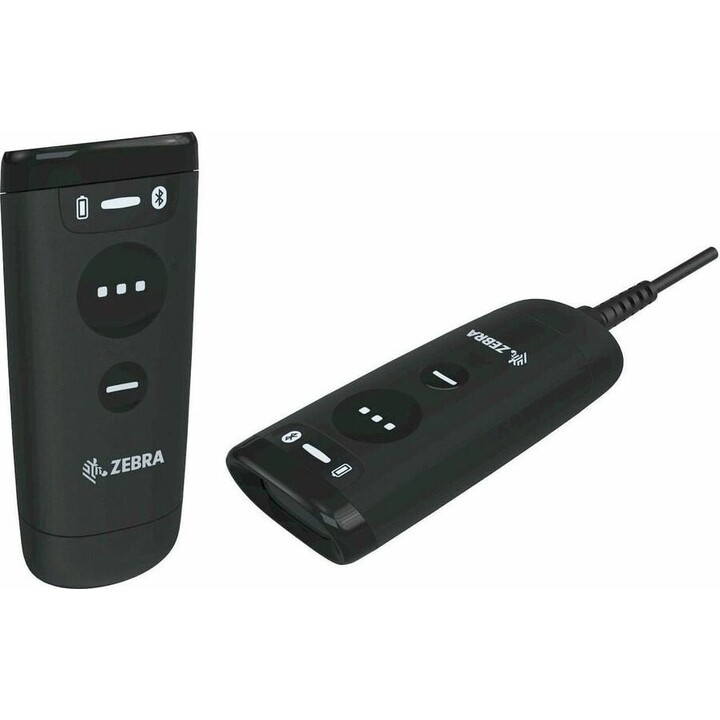

Zebra CS6080 – Barcode Scanner – Cordless

Type and optics

• Series: CS60 Series Companion Scanner, model CS6080 (cordless).

• Variant: CS6080-SR40004VZWW = Standard Range, inductive (contactless) charging, vibration, Midnight Black, without MFi.

• Sensor: 1280 x 960 megapixel with PRZM Intelligent Imaging.

• Reading: 1D, 2D, PDF417, including damaged, dirty, low-contrast and low-contrast codes on dimly lit displays.

• Field of View: ~45° H x 34° V; typical minimum Code 39 resolution of 5 mil.

Wireless and battery

• Radio: Bluetooth 5.0 Class 1, up to 100 m range from host.

• Compatibility: Android, Windows, other BT hosts; this exact model is not MFi and does not work with iOS as an MFi device.

• Battery: 745 mAh Li-Po, up to ~13,000 readings or 18 hours of use per charge.

• Charging:

  • Inductive/contactless (on cradle or Qi/CR6080-QZ1000XWW pad depending on kit).

  • USB-C direct with CBL-CS6-S07-04 cable in some kits.

Design and robustness

• Dimensions: 0.9" x 1.8" x 4.3" (≈ 2.3 x 4.6 x 10.9 cm).

• Weight: 2.9 oz (≈ 83 g) cordless version.

• Protection: IP65, drop resistant to 1.8 m (6 ft).

• Controls/indicators: capacitive trigger with haptic feedback, good readability LEDs, dedicated battery indicator, BT LED, beeper and vibration.

Common kits with this model

Although the part number you indicate is that of the scanner itself, it is usually sold integrated in kits such as:

• Standard Cradle Kit: includes CS6080-SR40004VZWWW scanner + CR6080-SC100F4WW cradle + USB-C cable.

• Qi Pad Charger Kit: includes scanner CS6080-SR40004VZWWW + Qi charger CR6080-QZ1000XWWW + USB-C cable.

• Cordless "Standard Kit": scanner + lanyard (LNYD-000060W-04).
