POEA Accessories TP-LINK TL-POE10R
- Input: 48V DC (PoE) from 802.3af PSE
- Output: 12V DC, 1A max
- Data passthrough: 10/100Mbps Ethernet
- Compliant with IEEE 802.3af standard
- Compact and durable metal housing
POEA ACCESSORIES TP-LINK TL-POE10R

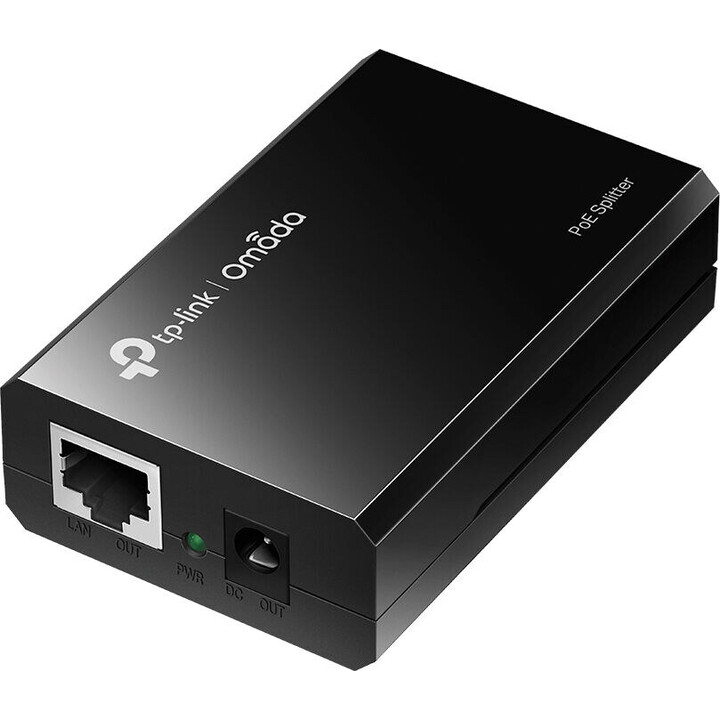

The TP-LINK TL-POE10R is a Power over Ethernet (PoE) splitter designed to extract power from a PoE source and deliver it to non-PoE devices. It accepts 48V DC input from an 802.3af-compliant PSE (Power Sourcing Equipment) and provides a regulated 12V DC output at up to 1A, making it ideal for powering IP cameras, wireless access points, and other network devices that require a separate power supply.
With integrated data passthrough at 10/100Mbps, the TL-POE10R ensures seamless network connectivity while eliminating the need for additional power cables. Its compact metal housing ensures durability and efficient heat dissipation, making it suitable for both indoor and outdoor installations. The splitter is plug-and-play, requiring no configuration, and is compatible with all standard 802.3af PoE switches and injectors.
| Input Voltage | 48V DC (PoE) |
| Output Voltage | 12V DC |
| Output Current | 1A max |
| Data Rate | 10/100 Mbps |
| PoE Standard | IEEE 802.3af |
| Connector Input | RJ45 (PoE in) |

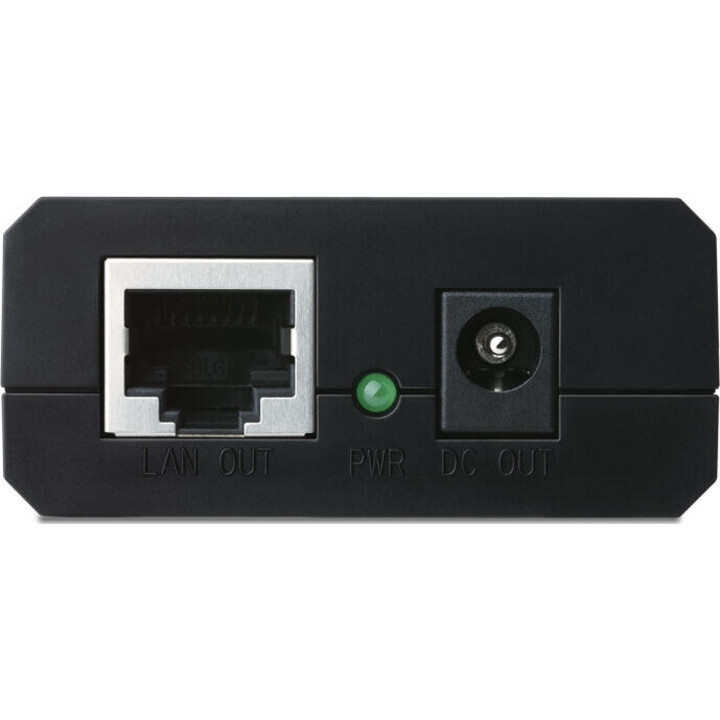

| Connector Output | RJ45 (data) + DC barrel jack (power) |
| Housing | Metal |
| Dimensions | 81 x 52 x 24 mm |
| Weight | 50 g |
| Brand | TP-LINK |
|---|---|
| Country | Spain |
| Address of origin | Am Trippelsberg 100, Dusseldorf, DE, 40589 |
| EU responsible person | TP-Link Technologies Co., Ltd. |
| Address | Feldring 9, Hofheim am Taunus, Germany, 65719 |
| [email protected] | |
| Phone | 34912000727 |
