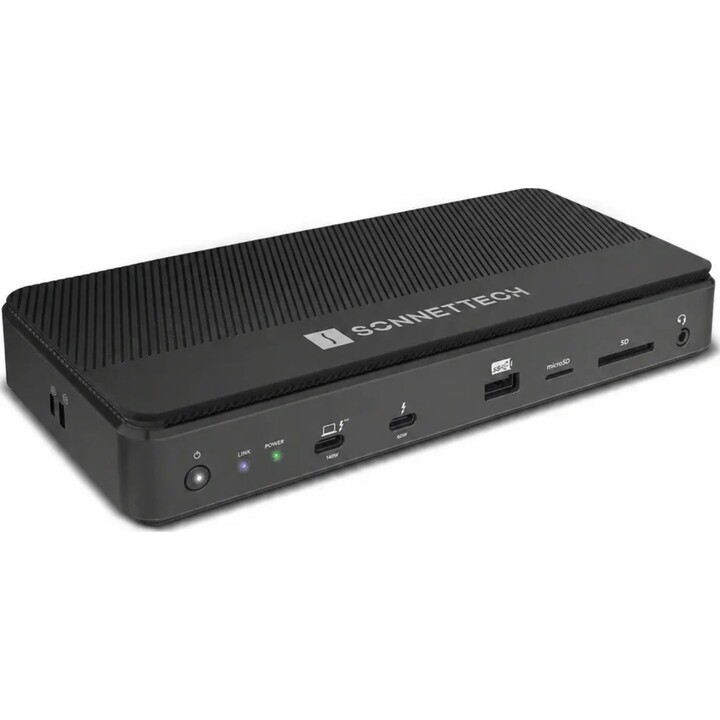

Echo 13 Thunderbolt 5 SSD Dock (No SSD)
- 13-slot Thunderbolt 5 dock with 80Gbps bandwidth
- Internal PCIe Gen4 x4 NVMe SSD slot (SSD not included)
- 10Gb Ethernet, USB-C 10Gbps, USB-A 10Gbps, SD 4.0 card reader
- Dual DisplayPort 1.4 supporting up to 8K@60Hz
- Supports daisy-chaining up to 6 Thunderbolt devices
Echo 13 Thunderbolt 5 SSD Dock (No SSD)
The Sonnet Echo 13 Thunderbolt 5 SSD Dock is a versatile docking station that combines high-speed storage expansion with extensive connectivity. Featuring a Thunderbolt 5 host port with 80Gbps bandwidth, it allows you to connect multiple peripherals and displays while providing an internal PCIe Gen4 x4 NVMe SSD slot for ultra-fast storage (SSD sold separately). This dock is ideal for creative professionals who need to transfer large files quickly and connect multiple devices simultaneously.
With 13 ports including 10Gb Ethernet, USB-C and USB-A at 10Gbps, SD 4.0 card reader, and dual DisplayPort 1.4 outputs supporting up to 8K resolution, the Echo 13 eliminates the need for multiple adapters. It supports daisy-chaining up to six Thunderbolt devices and is backward compatible with Thunderbolt 4 and USB4. The dock also delivers up to 60W of charging power to your laptop via the host connection.
| Brand | Sonnet |
| Model | Echo 13 Thunderbolt 5 SSD Dock (No SSD) |
| Interface | Thunderbolt 5 (80Gbps) |
| SSD Slot | Internal PCIe Gen4 x4 NVMe M.2 (SSD not included) |
| Ethernet | 10GbE (RJ45) |
| USB Ports | 2x USB-C 10Gbps, 2x USB-A 10Gbps |
| Display Output | 2x DisplayPort 1.4 (up to 8K@60Hz) |
| Card Reader | SD 4.0 (UHS-II) |
| Audio | 3.5mm headphone/mic combo |
| Power Delivery | Up to 60W to host |
| Daisy Chain | Up to 6 Thunderbolt devices |
| Compatibility | Thunderbolt 4, USB4, Thunderbolt 3 |
| Dimensions | 8.5 x 3.5 x 1.2 inches |
| Weight | 1.5 lbs |
