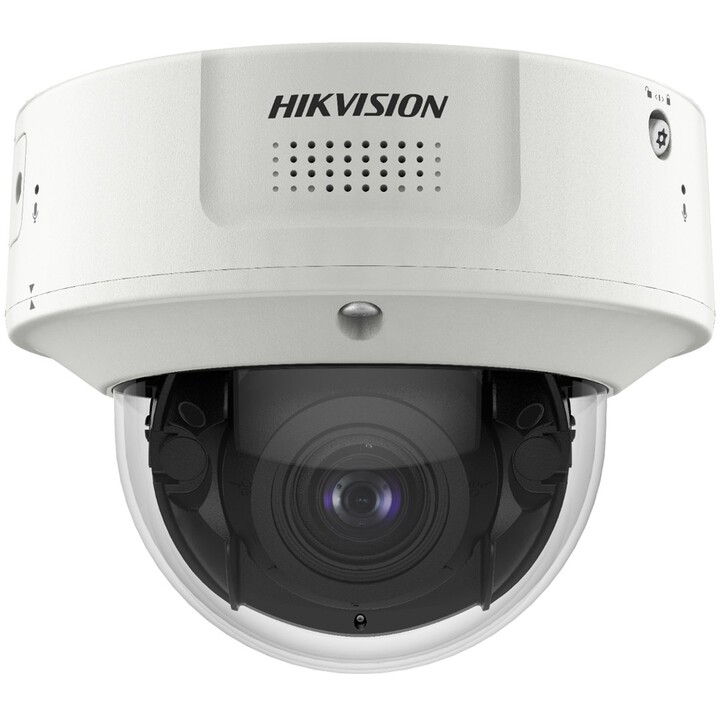

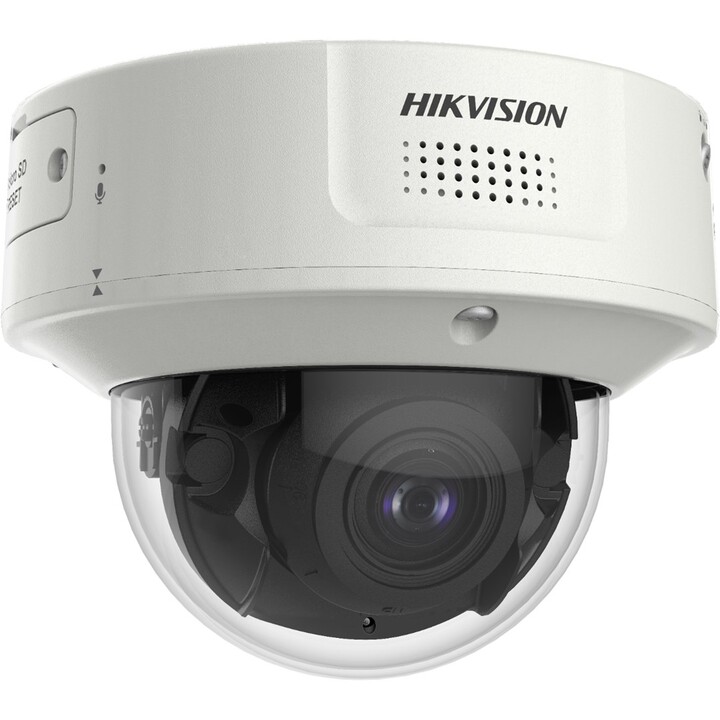

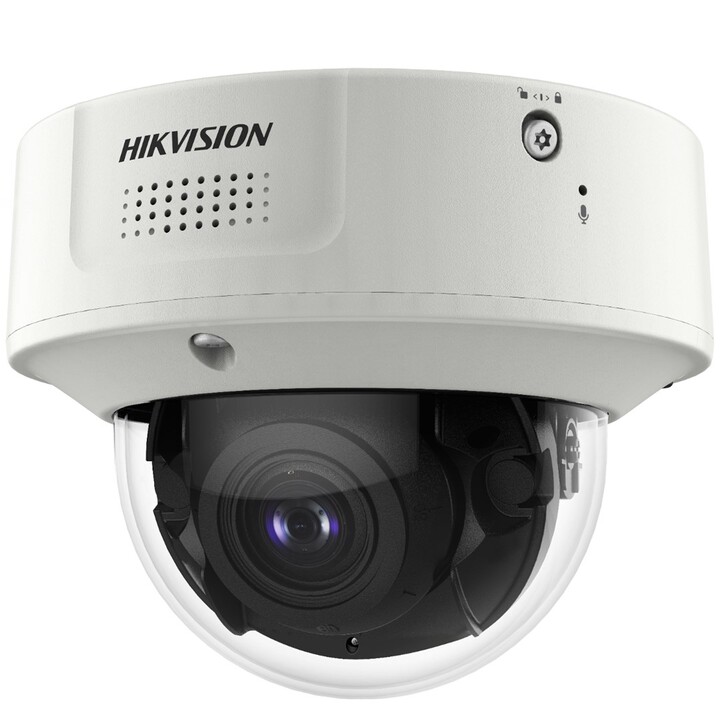

Hikvision iDS-2CD7146G0-IZHSY(8-32mm)(D) Pad Outdoor IP Security Camera 2560 x 1440 Pixels Ceiling/Wall
Hikvision iDS-2CD7146G0-IZHSY(8-32mm)(D) Pad Outdoor IP Security Camera 2560 x 1440 Pixels Ceiling/Wall
Hikvision iDS-2CD7146G0-IZHSY(8-32mm)(D) Pad Outdoor IP Security Camera 2560 x 1440 Pixels Ceiling/Wall

Hikvision iDS-2CD7146G0-IZHSY(8-32mm)(D) Pad Outdoor IP Security Camera 2560 x 1440 Pixels Ceiling/Wall

HikVision
Reference: 311320172
EAN: 6931847169282
Condition: New
€1,322.76
VAT included
Without tax: €1,093.19
The Hikvision iDS-2CD7146G0-IZHSY(8-32mm)(D) is a high-performance outdoor IP security camera featuring 2560 x 1440 pixel resolution, motorized 8-32mm lens, and advanced night vision up to 60 meters. It supports wired connectivity, PTZ control, and intelligent video surveillance with face detection and motion detection. Its robust metal housing with IP67 and IK10 ratings ensures durability for ceiling or wall mounting.
Last items in stock
Share


Buy it now and receive it between Mon 28 and Fri 2 with GLS o Correos Express España €19.90

Up to 3 years warranty 100% secure payment 14 days return

Performance
Certification
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, EN50121-4, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS IP67: IEC 60529-2013;IK10: IEC 62262:2002
Guy
IP security camera
Connectivity technology
Wired
Day/Night Mode
Yeah
Wide Dynamic Range (WDR)
Yeah
Infrared cut filter
Yeah
Number of languages
33
Supported languages
Multi
Entry/Exit Alarm
Yeah
PTZ Control
Yeah
Self-tracking
Yeah
Supported placement
Abroad
PTZ Modes
Preset point
Dynamic range
140 dB
Environmental conditions
Relative humidity range for operation
0 - 95%
Operating temperature range
-30 - 60 °C
Storage temperature range
-30 - 60 °C
Relative humidity range during storage
0 - 95%
Connection
Wifi
No
Bluetooth
No
Number of users
32 user(s)
Network standards
IEEE 802.3at, IEEE 802.1x
Ethernet interface type
Gigabit Ethernet
Ethernet
Yeah
Quality of Service (QoS) support
Yeah
User access level
Administrator, Operator, User
Live view
Yeah
Number of simultaneous live viewing channels
20 channels
Design
Housing material
Metal
Form factor
Pad
Product color
White
IK code
IK10
Mounting type
Ceiling/wall
IP Code (International Protection)
IP67
Packaging
Package depth
174 mm
Package width
244 mm
Package height
173 mm
Package weight
1.42 kg
Energy control
Energy consumption (max)
11.43 W
Feeding
Alternating current, DC, PoE
DC output amperage
0.97 A
Power consumption (Power over Ethernet, PoE)
11.92 W
DC output voltage
12
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports
1
Composite video output
1
RS-485 Ports
1
Security
Supported security algorithms
EAP-TLS, EAP-LEAP, EAP-MD5
Password protection
Yeah
Video motion detection
Yeah
Features of the intelligent video surveillance system (IVS)
Face detection, Scene changes, Blur
Digital watermark
Yeah
Alarm output channels
2
Mirror
Yeah
IP address filter
Yeah
Beat
Yeah
Alarm input channels
2
Video
Privacy mask
Yeah
Supported graphic formats
704 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 704 x 576, 2560 x 1440
Total megapixels
2 MP
Video broadcast
Yeah
High Beam Compensation (HLC)
Yeah
Noise reduction technology
3D Noise Reduction
Noise reduction
Yeah
Backlight compensation (BLC)
Yeah
Video compression formats
H.265, M-JPEG, H.265+, H.264, H.264+
Coding of regions of interest (ROI)
Yeah
Image quality adjustment
Contrast, Sharpness, Brightness, Saturation
Frame rate
60 pps
Smart IR
Yeah
Image stabilizer
Yeah
Maximum resolution
2560 x 1440 Pixels
Bit rate
32 Kbps - 8 Mbps
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Lens system
Recognition distance
80 m
Focal length interval
8 - 32 mm
Approach
Motorized/Manual
Detection distance
400 m
Minimum opening
1.6
Number of lenses
1
Observation distance
158.7 m
Identification distance
40 m
Autofocus
Yeah
Night vision
LED type
GO
Night vision
Yeah
Night vision distance
60 m
Infrared wavelength
850 nm
Storage media
Integrated card reader
Yeah
Compatible memory cards
MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Built-in HDD
No
Maximum memory card size
1 TB
Camera
Shutter speed
1 - 1/100000 s
Angle of inclination
0 - 75°
Rotation angle
355°
Lens viewing angle, diagonal
49.7 - 17°
Lens viewing angle, horizontal
42.5 - 14°
Tray reach
0 - 355°
Camera tilt control
Yeah
Minimum lighting
0 lx
Camera movement control
Yeah
Lens viewing angle, vertical
23.4 - 8°
Weight and dimensions
Diameter
14.1 cm
Height
122.6 mm
Weight
875 g
Package contents
Number of cameras
1
Image sensor
Progressive scanning
Yeah
Sensor type
CMOS
Number of sensors
1
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Audio
Supported audio formats
MP3
Voice codecs
G.711, G.726, MP2L2, AAC, G.722.1
Sampling frequency
48 kHz
Management features
Behavioral analysis
Intrusion detection, Line crossing detection, Zone entry detection, Region exit detection
Restore button
Yeah
