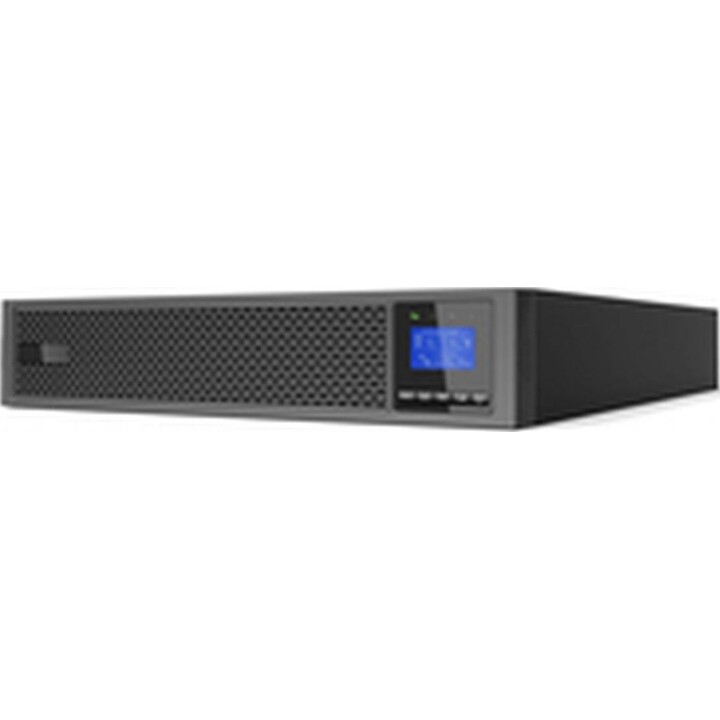

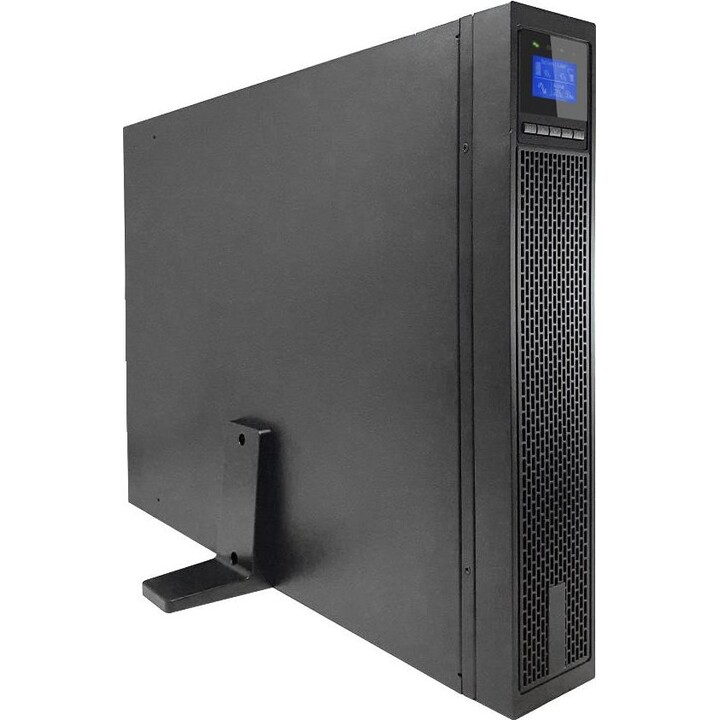

UPS USV Online IOT 3KVA / 3000W schwarz

Power, Topology, and Batteries

• Online double conversion topology, with pure sine wave output 200-240 V / 50-60 Hz, designed to withstand unstable networks and provide clean voltage at all times.

• True power of 3 kVA / 3000 W (PF 1.0), sufficient for multiple servers, switches, storage, and critical electronics; includes 6 batteries of 12 V / 9 Ah (72 V, lead-acid), typically recharging from 0 to 90% in about 3 hours at 220 V / 1.5 A.

Connectivity and Outlets

• 8 IEC C13 outlets and 1 IEC C19 outlet, plus 2 RJ45 ports (protection/network), USB HID, RS-232, HDMI, and terminal block (dry contact), allowing both direct monitoring and integration into industrial/BMS systems.

• Includes built-in Ethernet for cloud monitoring with the Android/iOS mobile app, and free centralized management software to monitor up to 1,000 UPS units.

IoT Functions, Protection, and Management

• Offers an OVCD (Overvoltage Cutoff Device), fan lock, detection of overheating and overload, as well as an EPO (Emergency Power Off) port for emergency shutdown in safety integrations.

• The graphical LCD screen (up to 10 languages) displays input/output status, load, battery, and alarms; allows adjustment of charging current and programmable management of outputs to prioritize critical loads.
