The APC SBP5000RMI2U is a high-quality service bypass panel designed to provide seamless power transfer and maintenance capabilities for uninterruptible power supply (UPS) systems. This 19-inch rack-mountable panel supports 230V input at 32A and features a quick transfer rate to ensure minimal disruption during power switching.

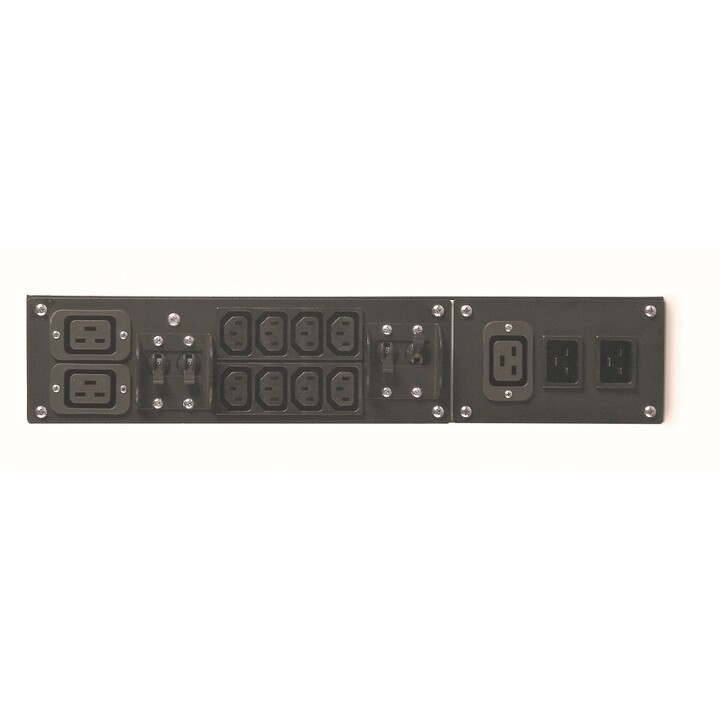

Equipped with eight IEC 320 C13 and two IEC 320 C19 outlets, the SBP5000RMI2U allows for flexible connectivity and efficient power distribution. Its wrap-around system bypass design enables maintenance or replacement of UPS units without interrupting the power supply to connected equipment.
Ideal for controlled environments, this panel operates reliably within a temperature range of -20 to 50 °C and relative humidity of 0 to 95%. It supports operation at altitudes up to 4500 meters and complies with standards including CSA, EN 60950, GOST, IEC 60950, and UL 1778.

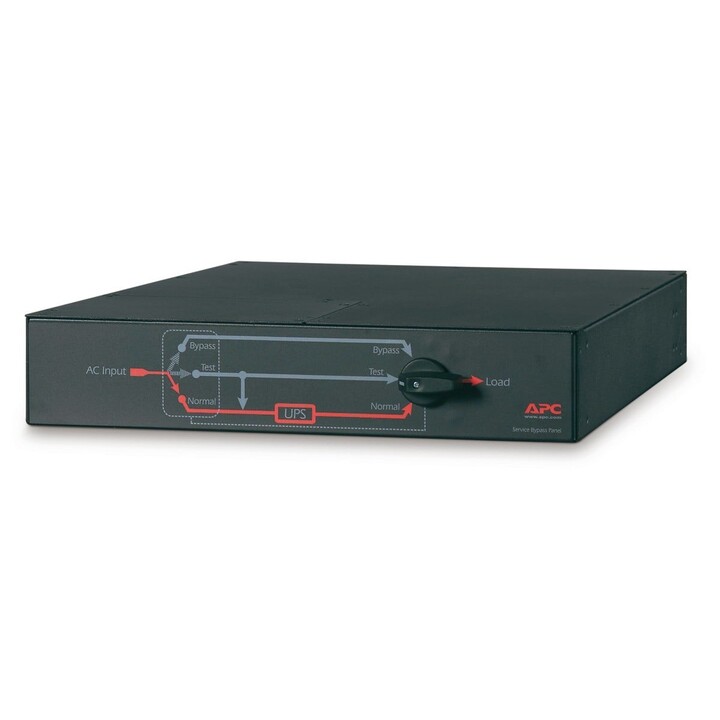

Use the SBP5000RMI2U in conjunction with compatible UPS models such as the SURT3000XLI or SURT5000XLI to ensure continuous power availability during maintenance or testing phases. The panel offers three operational modes: Normal, Test, and Bypass, allowing for flexible power management tailored to your needs.
With a compact size of 432 x 660 x 89 mm and a weight of 11.4 kg, this service bypass panel is an essential component for maintaining uptime and protecting critical infrastructure.
