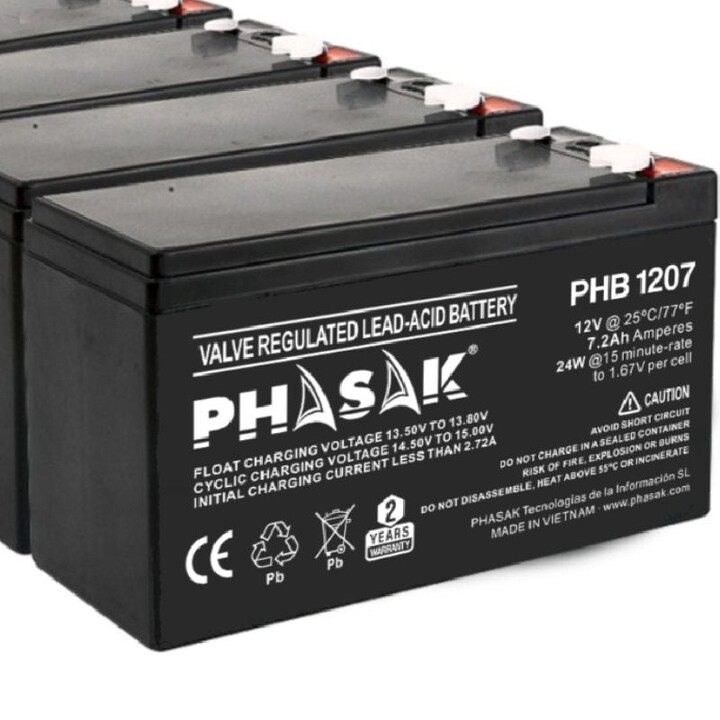

Phasak PHB 1207 battery compatible with PHASAK UPS/UPS according to specifications

Name: Phasak PHB 1207 battery compatible with PHASAK UPS/UPS according to specifications
Brand: PHASAK
SKU: PHB 1207
Price: 15.25 EUR
Availability: InStock

PHASAK

Reference: PHB 1207

EAN: 5605922004423

Condition: New

€15.25

VAT included

Without tax: €12.61

Voltage: 12V
Capacity: 7Ah
Type: AGM VRLA (Valve Regulated Lead Acid)
Terminals: F2 (0.187" quick disconnect)
Dimensions: 151 x 65 x 94 mm

Buy it now and receive it between Tue 22 and Wed 23 with SEUR / NACEX / REDUR €7.14

Up to 3 years warranty

100% secure payment

14 days return

12V PHASAK batteries

Lead-Acid | 12V 7.2 Ah PHASAK sealed lead-acid batteries.
Compatible with PHASAK UPS/UPS models, which incorporate batteries with the same characteristics.
Standard batteries compatible with any product that uses batteries with similar electrical characteristics.

Basic specifications

Nominal Voltage 12V (6 cells/unit)
Nominal Power 24W@15 min 1.67V/Cell (25ºC)
Capacity 7.2 Ah
Dimensions 151 x 65 x 100 mm
Weight 2.20 Kg
ABILITY :
20h/rate/10.5V: 7.2Ah
5h/rate/10.5V: 6.15 Ah
TERMINAL TYPE: T1/T2
INTERNAL RESISTANCE 25ºC APPROX30.0 m
DIMENSIONS
LENGTH: 151±1.5mm
WIDTH: 65±1mm
HEIGHT: 94±1mm
TOTAL HEIGHT: 100 ± mm
WEIGHT: 2.20 Kg
LIFE (STAND-BY): 5 years
EUROBAT @ 20ºC: 3 - 5 years
TEMPERATURE: 25 ± 3ºC
NOMINAL TEMPERATURE: -15ºC ~ 50ºC
TEMPERATURE RANGE: -10ºC ~ 50ºC
MAXIMUM LOAD CURRENT (A): 2.16 A
MAX 5 S DISCHARGE CURRENT: 108 A
SELF DISCHARGE RATE @ 25ºC: 3% MONTH

(TWO YEARS WARRANTY)
