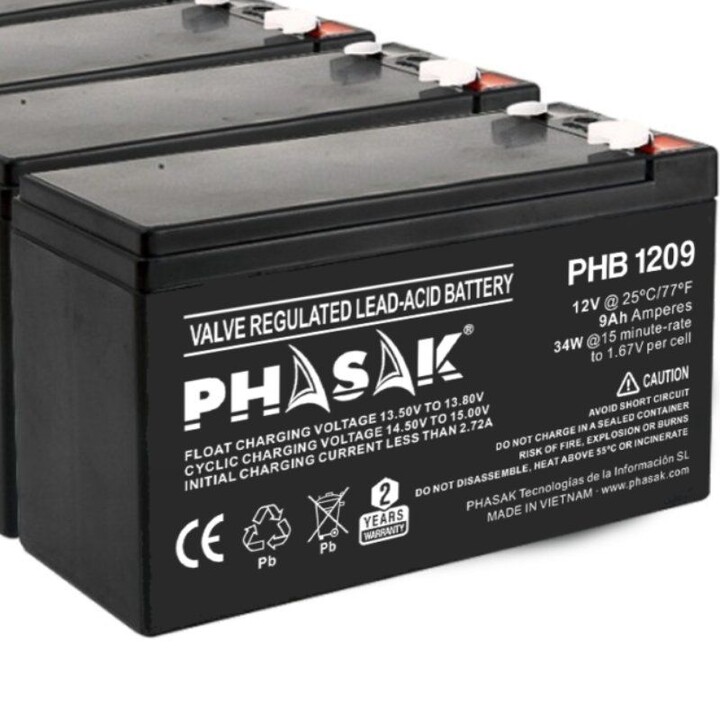

Phasak PHB 1209 battery compatible with SAI/UPS PHASAK according to specifications

Batteries 12V PHASAK

Lead-Acid | PHASAK 12V 9 Ah sealed lead-acid batteries.
Compatible with PHASAK UPS/UPS models that incorporate batteries with the same characteristics.
Standard batteries compatible with any product that uses batteries with similar electrical characteristics.

Basic Specifications

• Nominal Voltage 12 V (6 cells/unit)
• Nominal Power 34W@15 min 1.67V/Cell (25ºC)
• Capacity 9Ah
• Dimensions 151 x 65 x 100mm
• Weight 2.60 Kg
• ABILITY:
• 20h/rate/10.5V: 9Ah
• 5h/rate/10.5V: 7.95Ah
• TERMINAL TYPE: T1/T2
• INTERNAL RESISTANCE 25ºC APPROX14.0 m
• LIFE (STAND-BY): 5 years
• EUROBAT @ 20ºC: 3 - 5 years
• TEMPERATURE: 25 ± 3ºC
• RATED TEMPERATURE: -15ºC ~ 50ºC
• TEMPERATURE RANGE: -10ºC ~ 50ºC
• MAX CHARGE CURRENT (A): 2.72 A
• MAX DISCHARGE CURRENT 5S: 135A
• SELF-DISCHARGE RATE @ 25ºC: 3% MONTH

(TWO YEARS WARRANTY)
