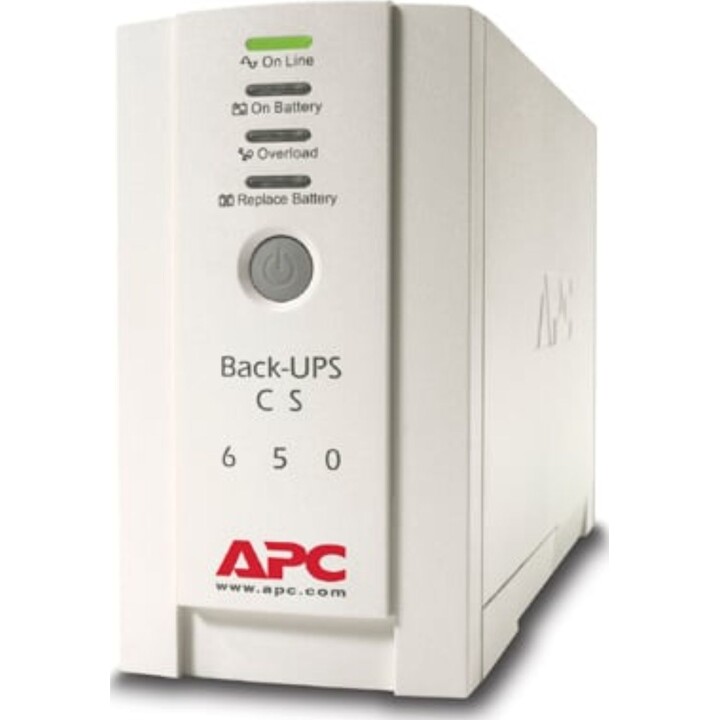

UPS APC Back-UPS CS 650VA 230V

• Audible Signal Option
• Automatic Load Restart After UPS Shutdown
• Automatic Self-Test
• Tool-Free Battery Replacement
• Dedicated Battery-Protected Surge Outlets
• Data Line Surge Protection •
Hot-Swappable Batteries
• LED Status Indicators
• Power Conditioning
• Resettable Circuit Breakers
• Safety Agency Approved
• Transformer Spaced Outlets
• User-Replaceable Batteries

SPECIFICATIONS:
• Output:
- Output Power Capacity: 400 Watts / 650 VA
- Max Configurable Power: 400 Watts / 650 VA
- Nominal Output Voltage: 230V
- Output Connections: IEC 320 C13 (Surge Protection), IEC 320 C13 (Battery Backup)

• Input:
- Nominal Input Voltage: 230V
- Input Frequency: 50/60 Hz +/- 3 Hz (automatic detection)
- Input Connection Type: IEC-320 C14
- Cable Length: 1.83 meters
- Input Voltage Range for Main Operations: 180 - 260V
- Adjustable Voltage Range for Main Operations: 160 - 282V

• Batteries and runtime:
- Battery type: Maintenance-free sealed lead-acid battery with suspended electrolyte: leak-proof
- Typical recharge time: 8 hours
- Spare battery cartridge: RBC17
- Number of RBCs: 1
- Typical standby power time at half load: 11.4 minutes (200 Watts)
- Typical protection time at full load: 2.4 minutes (400 Watts)

• Communications and Management:
- Interface Port: DB-9 RS-232, USB
- Control Panel: Status LEDs with indicators for "Network," "Battery On," "Replace Battery," and "Overload"
- Audible Alarm: Alarm in case of "Battery in Operation," "Low Battery," and "Overload"

• Protection and filtering against voltage spikes:
- Voltage Spike Energy Measurement: 320 Joules

• Physical description:
- Maximum height: 165 mm
- Maximum width: 91 mm
- Maximum depth: 284 mm
- Net weight: 6.03 kg

• Environmental Description:
- Working Temperature: 0 - 40 °C (32 - 104°F)
- Working Relative Humidity: 5 - 95%
- Working Elevation: 0-30000 feet (0-9000 meters)
- Storage Temperature: -15 - 45 °C (5 - 113°F)
- Storage Relative Humidity: 5 - 95%
- Storage Elevation: 0-15000 feet (0-4500 meters)
