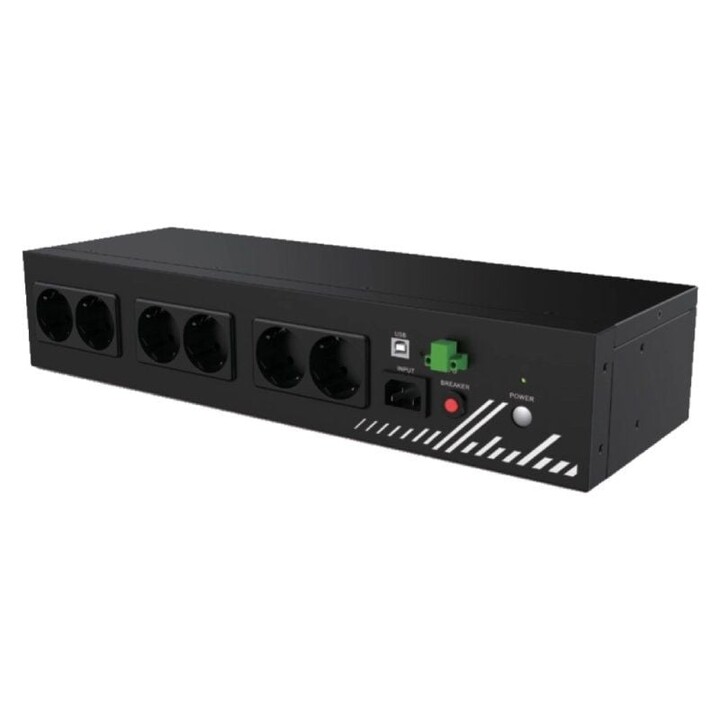

Phasak COMPACT 800 VA/ 9A/ 8x Schuko/ 2U Rack Format Power Distribution Unit

Phasak Compact 800 VA

• Plug & Play
• Suitable for 19” racks
• APFC Compatibility
• High frequency design
• USB HID and EPO
• 8 schuko sockets
• Auto Restart and Reload
• Cold start
• Management software

The PHASAK COMPACT UPS perfectly combines design and functionality. Equipped with 800 VA of power and a compact format (suitable for 19”), the PH 9202 offers protection and backup through its 8 Schuko sockets.

With 6 front and 2 rear sockets, the PH 9202 becomes a perfect ally for all types of installations. It is fully compatible with APFC loads and can be monitored via the USB HID port and the management software provided.

Specs

• Power 800 VA / 480 W
• Entrance
• Nominal voltage 220-240Vac
• Voltage Range 180-270Vac
• Frequency 50 Hz / 60 Hz (Auto detection)
• Exit
• Nominal Voltage (Bat.) 220 – 240 Vac
• Frequency (Bat.) 50 Hz / 60 Hz ± 1%
• Modified Sinosuidal (Bat.) Waveform
• Transfer time 4 ms
• Overload protection Circuit breaker or internal fuse protection
• Battery
• Quantity / Type / No. 1x 12V/ 9Ah
• Charging time (90%) 8 h
• Indicators
• LED Display
• Alarms Battery on / Battery low / Overload / Failure
• Characteristics
• Dimensions (WxHxD) 438 x 86 x 150
• Weight (Kg) 5.32.9
• Operating humidity 0 – 90% non-condensing
• Operating temperature 0 - 40ºC
