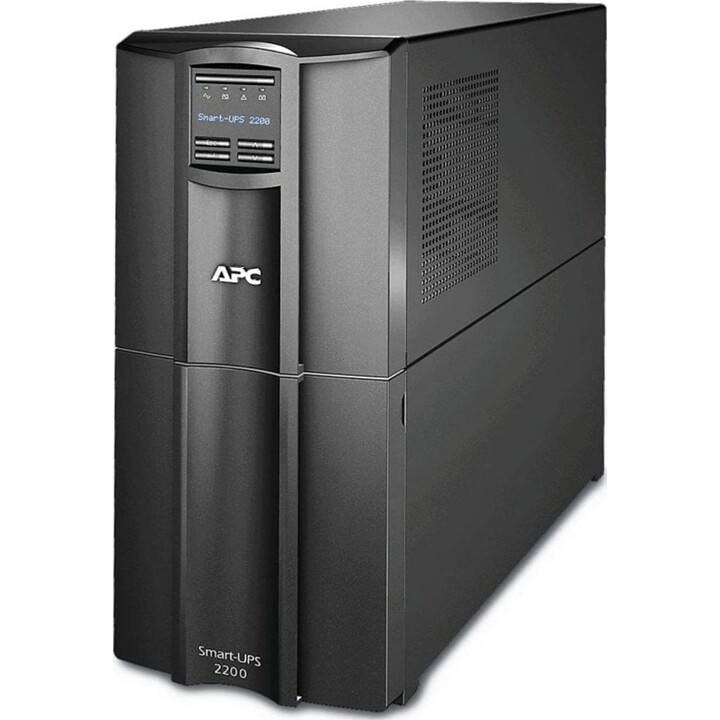

APC - Uninterruptible Power Supply (UPS) Systems

About the product

Intelligent and efficient network power protection from entry-level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs, and more.

Characteristics

Management capacity

Audible alarms Actively notify you if the unit has a battery, if the battery level is low, or if there is an overload situation.

Serial Connectivity Provides control of the UPS via a serial port.

USB Connectivity Allows you to manage the UPS via the USB port.

LED Status Indicators Quickly check drive and power status using optical indicators.

Network Manageable Provides remote UPS power management over the network via Powerchute Business Edition.

Availability

Automatic start-up of loads after UPS shutdown Automatically starts the connected equipment when the power supply is restored.

Battery Disconnect Notification Warns when a battery cannot provide backup power.

Intelligent Battery Management Increase battery performance, life and reliability through intelligent, precision charging.

Automatic self-test The periodic battery self-test ensures early detection of the need for battery service.

Automatic Voltage Regulation (AVR) Provides increased availability by correcting low and high voltage conditions without using battery power.

Power Conditioning Protects connected loads from surges, spikes, lightning, and other electrical disturbances.

Temperature-compensated battery charging Extends battery life by regulating the charging voltage according to the actual battery temperature.

Security

Safety Agency Approved Ensures product testing and approval to operate safely with connected loads and in the specific environment.

Adaptability

Adjustable Voltage Transfer Points Maximize battery life by widening the input voltage range or narrowing the output voltage regulation.

Adjustable voltage sensitivity Provides the ability to tailor Uninterruptible Power Supplies (UPS) for optimal operation in specific electrical environments or generator applications.

Ease of repair and maintenance

Battery Failure Notification Provides early notification of battery errors allowing for timely preventative maintenance

Circuit breakers with reset capability Allows for rapid recovery after overload events.

User-replaceable batteries Increase availability by allowing a knowledgeable user to perform battery upgrades and replacements, reducing Mean Time to Repair (MTTR).

Hot-swappable batteries Ensure clean, uninterrupted power to protect equipment while batteries are being changed

Predictive failure notification. Provides early warning of failure analysis to ensure proactive component replacement.

Specs

Characteristics

UPS Topology: Line Interactive

Output power capacity (VA): 2200 VA

Output power: 1980 W

Waveform: Sine

Operating input voltage (min): 151 V

Operating input voltage (max): 302 V

Input frequency: 50/60 Hz

Output operating voltage (min): 220 V

Output operating voltage (max): 240 V

Energy surge rate: 365 J

Response time: 6 ms

Emergency shutdown: Yes

Voltage output Total Harmonic Distortion: 5%

Noise level: 45 dB

Power protection functions: Overvoltage, Overload

Audible alarm(s): Yes

Audible Alarm Modes: Sounds an alarm when switching to battery, Low battery alarm, Battery change

Auto-restart: Yes

Ports and Interfaces

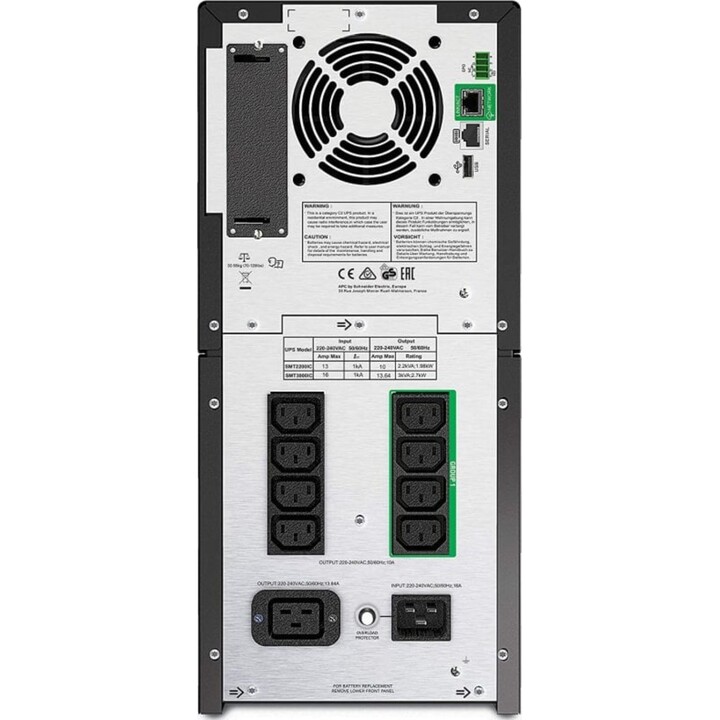

Number of AC outlets: 9 AC outlets

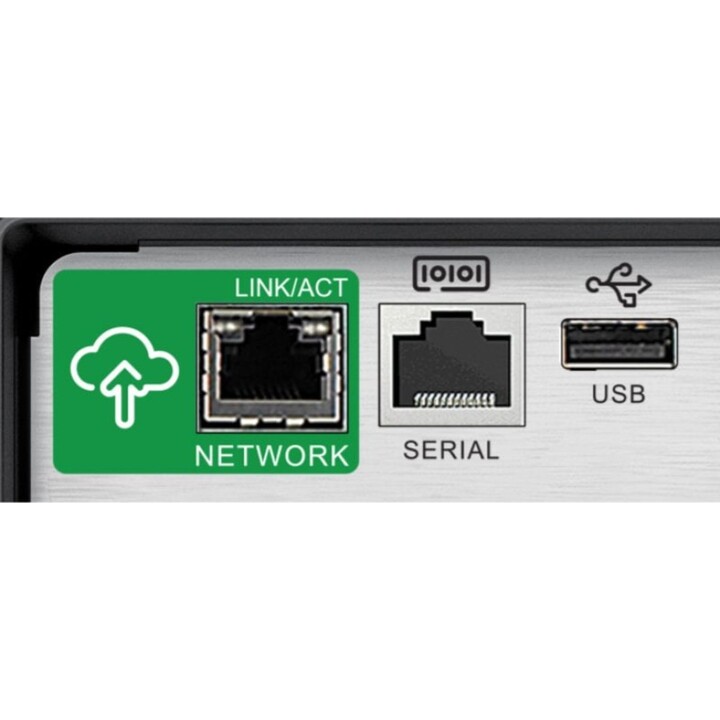

USB port: Yes

Number of USB 2.0 ports: 1

USB port type: USB Type A

Serial interface: Yes

Serial port: 1

Ethernet LAN (RJ-45) ports: 1

SmartSlot: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)

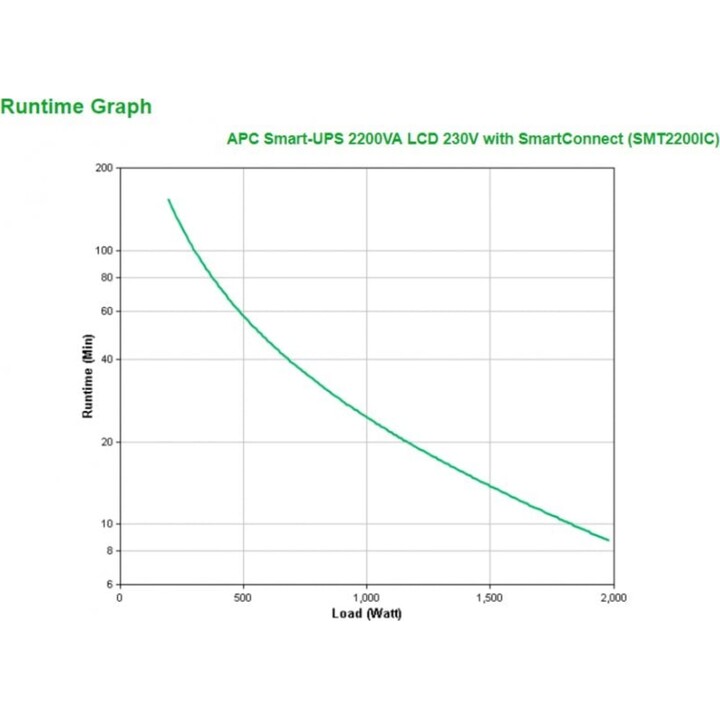

Typical backup time at full load: 8.7 min

Typical backup time at half load: 25 min

Battery life (max): 5 year(s)

Battery recharge time: 3 h

Design

Product color: Black

LED indicators: Yes

Screen: LCD

Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Environmental conditions

Operating temperature range: 0 - 40°C

Storage temperature range: -15 - 45 °C

Relative humidity range for operation: 0 - 95%

Relative humidity range during storage: 0 - 95%

Operating altitude: 0 - 3000 m

Non-operating altitude: 0 - 15000 m

Weight and dimensions

Width: 197 mm

Depth: 544 mm

Height: 435 mm

Weight: 48.8 kg

Packaging

Cables included: RS-232, USB Cable

Software CD: Yes

Package width: 381 mm

Package depth: 762 mm

Package height: 699 mm

Package weight: 61.9 kg
