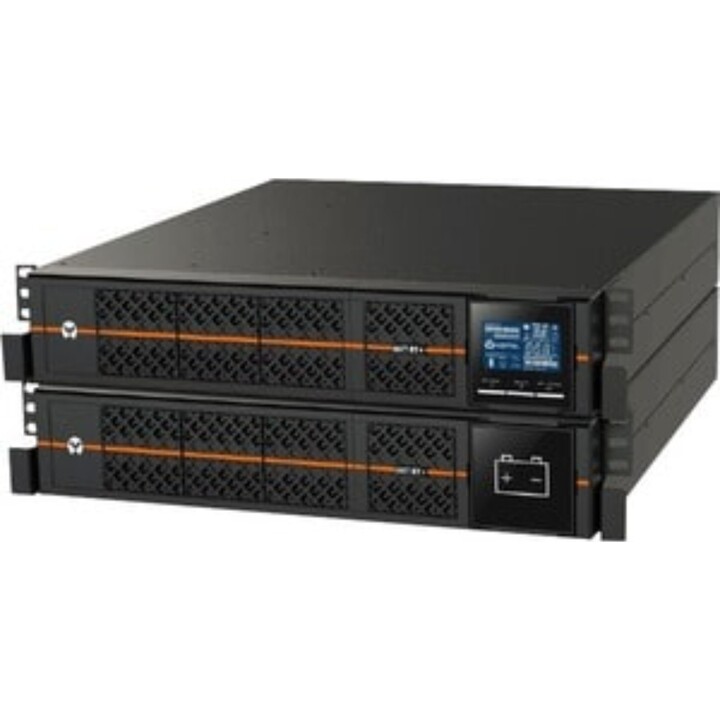

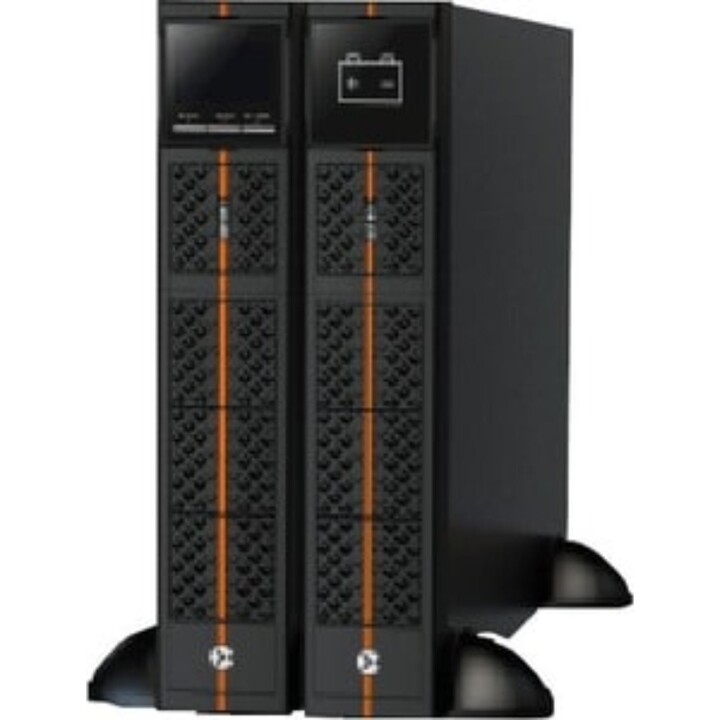

Vertiv gxt rt+ 1ph ups 2kva

About the product

The Vertiv Liebert GXT RT+ UPS is an online double-conversion solution that offers power protection in an efficient and affordable system with deployment and operational flexibility.

The Liebert GXT RT+ single-phase high power factor of 0.9 enables reliable power to more connected devices from a wide range of input voltages while being energy efficient and delivering maximum value.

The already affordable ECO mode of this UPS also saves energy costs for a compelling total cost of ownership (TCO).

Being able to mount the Liebert GXT RT+ in a rack or tower is a convenience that adds to the value story, as is the UPS's ability to utilize up to six connected external battery cabinets for scalable runtimes.

In addition to extended runtime, multiple monitoring options make this compact UPS ideal for providing the best power protection for equipment deployed at the edge of networks or in space-constrained installations.

Compact, flexible form factor

Rack or tower mounting options allow for simplified UPS selection and deployment.

External battery cabinet capacity

Connected modules enable scalable runtime during main grid power failure.

User-friendly interface

The intuitive LCD display provides complete UPS status and configuration information at a glance.

High-efficiency ECO mode

Configurable operating mode for up to 95% efficiency helps achieve energy savings and lower TCO.

Compatibility monitoring

The serial network interface allows remote access to the UPS to monitor power consumption and configure alert notification parameters.

High power factor (0.9)

More usable power allows for more connected loads to save space and costs.

Features

In-line technology with two stages of energy conversion.

Output power factor higher than most comparable competitive models.

Flexible tower/rack form factor.

External battery cabinet support.

Easy-to-use liquid crystal display (LCD).

High-efficiency ECO mode.

Smart battery charger design.

Wide input voltage operation.

Specs

General

UPS Topology: Double Conversion (Online)

Output power capacity (VA): 2000 VA

Output power: 1800 W

Waveform: Pure sine

Operating input voltage (min): 178 V

Operating input voltage (max): 288 V

Input frequency: 40 - 70 Hz

Output operating voltage (max): 240 V

Output frequency: 50/60 Hz

Output voltage regulation: 1%

Number of input phases: 1

Number of output phases: 1

Efficiency: 89%

Efficiency (online mode): 89%

Power factor: 0.9

Input power factor: 0.9

Output power factor: 0.9

Emergency shutdown: No

Noise level: 55 dB

Power protection functions: Overload

Audible alarm(s): Yes

Ports and Interfaces

AC Outlet Type: C13 coupler

Number of AC outlets: 6 AC outlets

Puerto serial: 1

Battery

Battery technology: Sealed Lead Acid (VRLA)

Battery capacity: 9 Ah

Battery voltage: 12 V

Number of batteries supported: 4

Typical backup time at full load: 3.2 min

Typical backup time at half load: 9 min

Hot-swap battery: Yes

Design

Form Factor: Rackmount or Rack Mount

Rack capacity: 2U

Product color: Black

Screen: LCD

Safety: CE

Certification: CE

Environmental conditions

Operating temperature range: 0 - 40 °C

Storage temperature range: -20 - 50 °C

Relative humidity range for operation: 20 - 95%

Relative humidity range during storage: 10 - 90%

Operating altitude: 0 - 2000 m

Technical details

Sustainability certificates: RoHS

Weight and dimensions

Width: 438 mm

Depth: 462 mm

Height: 88 mm

Weight: 18.2 kg
