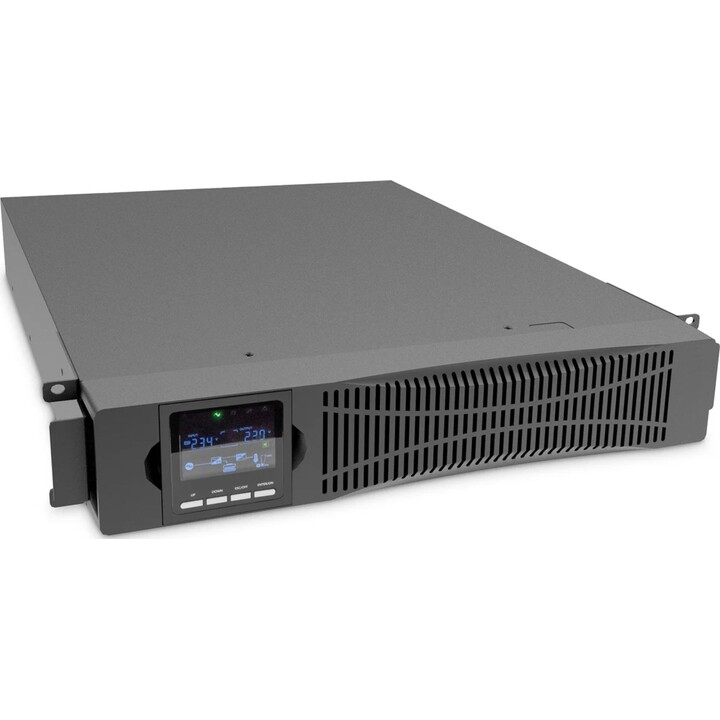

Digitus Online UPS Module, 3000 VA/3000 W

Description

Digitus DN-170096 Uninterruptible Power Supply (UPS) Double Conversion (Online) 3 kVA 3000 W 9 AC Outlets

The OnLine UPS is an ideal backup solution for your demanding power needs, offering high fail-safe performance in a variety of industrial applications.

- High power factor (1.0): higher active power allows more loads to be connected, saving space and reducing costs.

- High efficiency in online mode: higher efficiency means optimized power management and less heat dissipation, resulting in energy savings and increased reliability.

- The easy-to-use LCD display provides UPS status for easy installation, configuration, and operation.

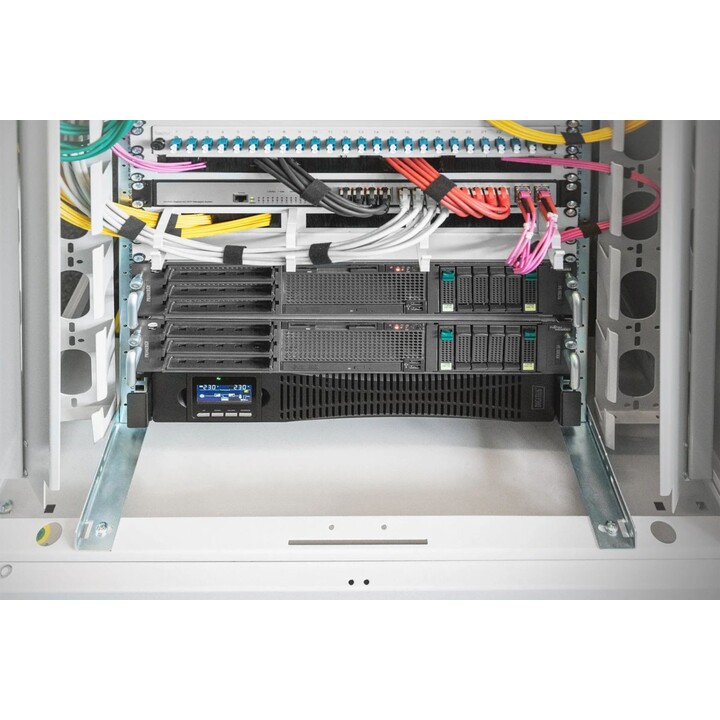

- The compact rack/tower design optimizes rack space and enables flexible installation.

- Minimize device downtime with hot-swappable, user-replaceable battery modules during operation.

- External battery modules allow for extended runtime.

- High number of outlets (8 x C13 and 1 x C19) for optimal power distribution to consumers.

- Multiple communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote system monitoring

. - Automatic battery self-diagnosis and fan speed control increase component lifespan.

- The REPO (Remote Emergency Power Off) function disconnects the UPS in the event of an emergency. In the event of an emergency, the REPO switch disconnects the rectifier and inverter and immediately stops supplying power to the load. The UPS stops charging and discharging the battery.

DIGITUS OnLine UPS systems are extremely reliable solutions for protecting sensitive devices from power interruptions. They are equipped with microprocessor control to ensure maximum performance and protect your business and office systems from data loss and damage. Thanks to the high power factor, wide input voltage range, and powerful charger, the system meets the highest demands. Intelligent charging modes and fan speed control extend the lifespan and increase the reliability of the UPS. All parameter settings can be configured using the UPS's LCD display. An SNMP adapter for remote access to the UPS system is available as an option.

Key product points

Online Double Conversion System (VFI-SS-111)

Input: IEC60320 C20 socket, 208/220/230/240 Vac

Output: 8 x IEC60320 C13, max. 10 A per socket; 1 x IEC60320 C19, max. 16 A per socket

System rated power: 3000 VA / 3000 W, power factor 1.0

AC-AC efficiency (VFI online): 93%, ECO mode efficiency: 98%.

The internal battery can be replaced during operation.

Battery: Non-spillable, valve-protected lead-acid battery

Battery quantity: 6 x 12V x 9.0 Ah

Operating time on full load: 3 min; operating time on half load: 9 min

Charging: 4 hours up to 90% capacity after a full discharge

Network Connection: The optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.

Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)

Emergency Power Off (EPO) contact to turn off the UPS in case of emergency

Maximum operating temperature: 0 - 40 °C

Storage temperature: -25 - 55 °C

Relative humidity: 20 - 90% non-condensing

Operating altitude: < 1500 m

Product Dimensions WxDxH (mm): 440 (19") x 600 x 86.5 (2U)

Product weight: 26 kg

Shipping dimensions WxDxH (mm): 560 x 730 x 200

Shipping weight: 30.2 kg

Safety standards: IEC/EN62040-1,IEC/EN60950-1

EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,

Approval: CE Declaration

Scope of delivery: UPS device, UPS manual, UPS QSG, tower mounting feet, UPS software license, USB cable, power cable (1.8 m grounded (type 7/4) to C20 socket), IEC60320 C13 connection cable, 19" mounting bracket.

Optionally available: mounting kit for 19" UPS (profile rails), item number DN-170109

Characteristics

UPS Topology: Double Conversion (Online)

Output power capacity (VA): 3 kVA

Output power: 3000 W

Operating input voltage (min): 208 V

Operating input voltage (max): 240 V

Automatic Voltage Regulation (AVR): Yes

Maximum current: 16 A

Efficiency (online mode): 93%

Efficiency (ECO mode): 98%

Power factor: 1

Ports and Interfaces

AC Outlet Type: C13 coupler, C19 coupler

Connector: C20 coupler

Number of AC outlets: 9 AC outlets

USB port: Yes

Serial interface: Yes

Serial interface type: RS-232

Emergency shutdown device: Yes

Battery

Battery capacity: 9 Ah

Battery voltage: 12 V

Number of batteries supported: 6

Typical backup time at full load: 3 min

Typical backup time at half load: 9 min

Battery recharge time: 4 h

Design

Form Factor: Rackmount or Rack Mount

Product color: Black

Display type: LCD

Environmental conditions

Operating temperature range: 0 - 40°C

Storage temperature range: -25 - 55 °C

Relative humidity range for operation: 20 - 90%

Operating altitude: 0 - 1500 m

Regulatory approvals

Certification: CE

Safety regulation & standards

Safety: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8

Weight and dimensions

Width: 440 mm

Depth: 600 mm

Height: 86.5 mm

Weight: 26 kg

Packaging

Package width: 555 mm

Package depth: 732 mm

Package height: 200 mm

Package weight: 30.1 kg

Package volume: 82064.5 cm²

Other features

Size (imperial): 48.3 cm (19")
