We present the new UPS
L-LINK LL-7716. This UPS has all the necessary features for an improved protection of computer equipment. They are uninterruptible power supplies with line-interactive technology available in 1600VA. The permanent stabilization of the input voltage causes less use of the batteries to obtain the maximum autonomy if necessary. It also incorporates, for better integration into the protected environment, communication via USB with complete monitoring and control software capable of auto-shutting down computer systems in the event of prolonged outages.

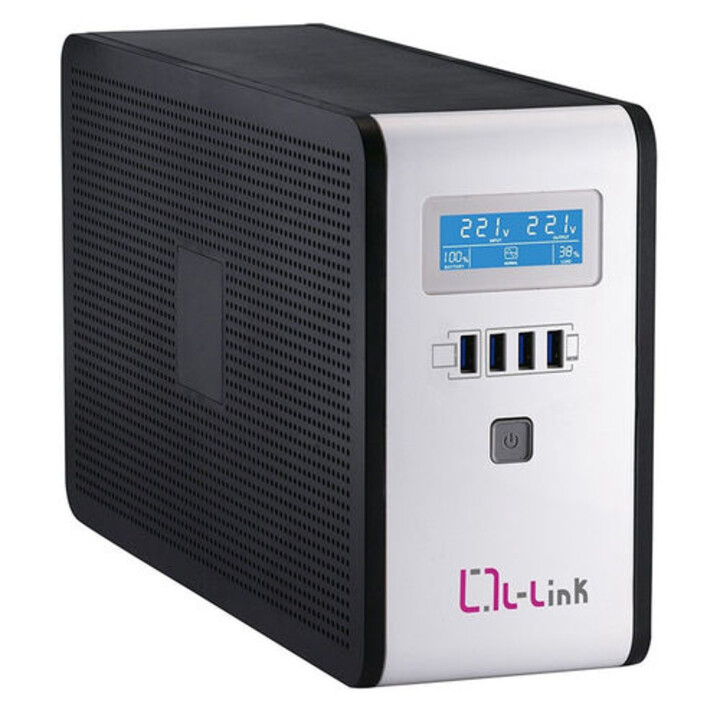

They also include, as standard, a powerful display with information on input voltage, output voltage, charge level, battery level and operating status. And for complete protection it includes a filter for the data line / modem / ADSL. All these characteristics make it the
UPS solution with the best quality / price ratio on the market.
- Controlled by a technologically advanced microprocessor that guarantees high reliability
- Equipped with integrated electronic regulator and 3 regulation stages to guarantee the voltage of the electric current
- Over / under voltage protection against spikes and electrical noise (UPS will go into battery mode)
- Protection against lightning and surges from 175 joules
- Has an automatic start and backup function
- The UPS will shut down when the battery is low The UPS will automatically restart after power recovery (automatic restart)
- Constant current, constant voltage battery charger (CCCV battery charger)
- No-load shutdown function (save mode) * 5VDC USB CHARGING PORT 2.1A for iPad / iPhone / smartphone
- The UPS charges with the power switch turned off (load off mode)
- The management software is designed to monitor and control the status of the UPS
- USB port and cable to manage functions through PC
- RJ-45 protection phone line / modem
FEATURES UPS Topology: Line Interactive
Output Power Capacity (VA): 1600 VA
Output Power: 900W
Operating input voltage (min): 220V
Operating input voltage (max): 240V
Input frequency: 50/60 Hz
Output operating voltage (min): 220V
Output operating voltage (max): 240V
Hold time (max): 6 ms
Number of input phases: 1
Number of output phases: 1
Noise level: 40 dB
Audible alarm (s): Yes
Audible alarm modes: Overload alarm

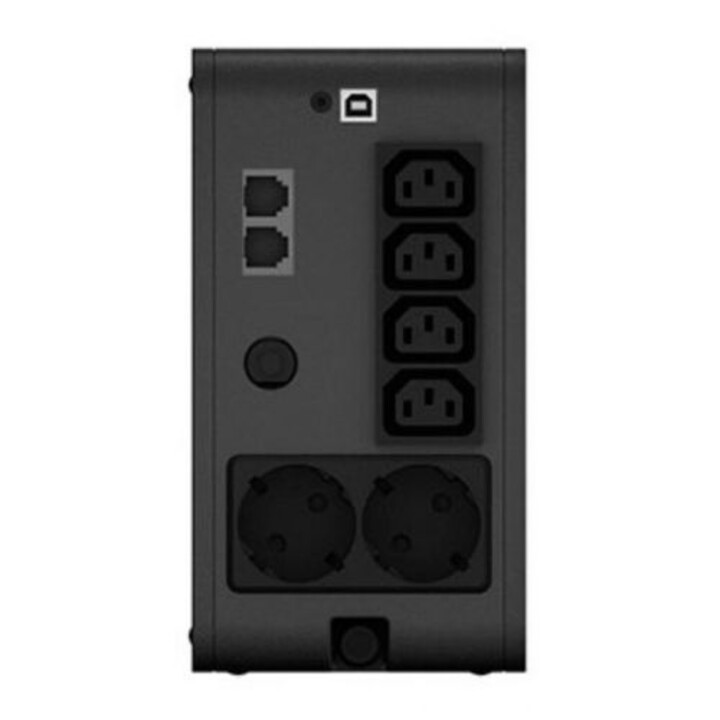

PORTS AND INTERFACES AC output type: F type
Number of AC outputs: 2 AC outputs
USB port: Yes
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) number of ports: 1
DRUMS Battery capacity: 9 Ah
Battery voltage: 12V
DESIGN Form factor: Tower
Product Color: Black, Silver
LCD screen
ENVIRONMENTAL CONDITIONS Operating temperature range: 0 - 40 ° C
Relative humidity range for operation: 0 - 95%
WEIGHT AND MEASUREMENTS Width: 101mm
Depth: 306mm
Height: 200mm
