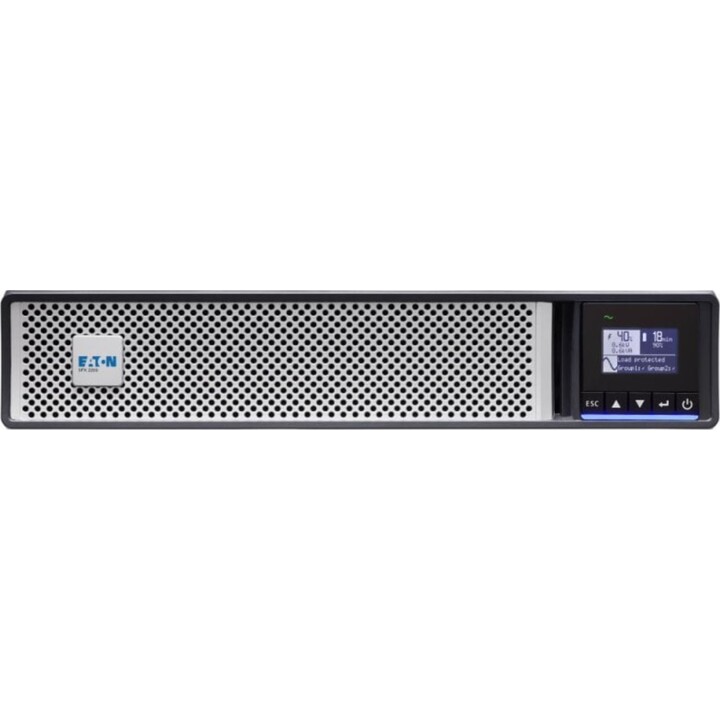

Eaton 5PX Gen2 Interactive UPS 2200kVA 2200 W Gray

TheEaton 5PXis an advanced line-interactive uninterruptible power supply (UPSdesigned to protect sensitive electronic equipment in demanding computing environments. It offers a power rating of 2200 VA, indicating the maximum load capacity it can handle under ideal conditions.

Advanced interactive line, corrects more severe voltage fluctuations than a basic UPS without constantly relying on the battery.

Specs:

• Characteristics
  • UPS Topology: Interactive Line
  • Output power capacity (VA): 2200 kVA
  • Output power: 2200 W
  • Waveform: Pure sine wave
  • Minimum operating input voltage: 160 V
  • Operating input voltage (max): 294 V
  • Input frequency: 47/70 Hz
  • Noise level: 40 dB
  • Power protection functions: Over-discharge

• Ports and Interfaces
  • AC output type: C13 coupler, C19 coupler
  • Connector: C20 coupler
  • USB port: Yes
  • Serial interface: Yes
  • Interface serial type: RS-232
  • Serial port: 1

• Battery
  • Automatic battery test: Yes

• Design
  • Form factor: Rack/Tower or Frame/Tower
  • Rack capacity: 2U
  • Product color: Black
  • Display type: LCD
  • LED Indicators: Yes
  • Safety: IEC/EN 62040-1, UL1778, CSA22.2
  • Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm

• Environmental conditions
  • Operating temperature range: 0 - 40°C

• Technical details
  • Sustainability compliance: Yes
  • Sustainability certificates: CE

• Weight and dimensions
  • Width: 438 mm
  • Depth: 603 mm
  • Height: 85.5 mm
  • Weight: 28.2 kg

• Packaging
  • Includes management card: Yes

• Logistics data
  • Harmonization System (HS) Code: 85078000

• Other features
  • Output connections: 8 x IEC C13 (10A) 2 x IEC C19 (16A)
  • Nominal output voltage: 230 V
