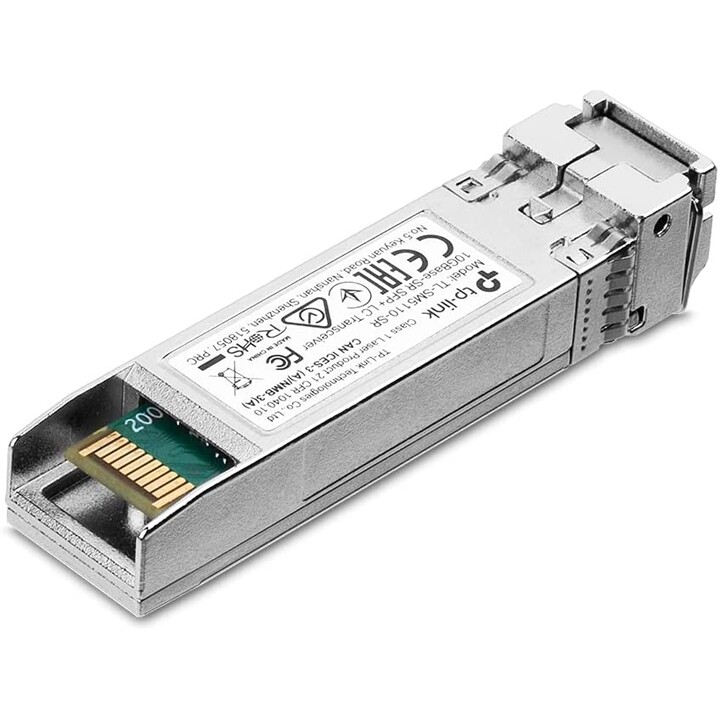

TP-Link TL-SM5110-SR Fiber Optic Transceiver SFP Module

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a high performance 10GBASE-SR 850nm multimode SFP+ transceiver. Supports full duplex 10G Ethernet connections up to 300m or 33m using 50/125 µm or 62.5/125 m fiber cables, respectively.

• LC SFP+ Multimode Transceiver
• Hot pluggable with maximum flexibility
• Supports digital diagnostic monitoring (DDM)
• Supports 10G Small Form Factor Pluggable Multiple Source Agreement (SFP + MSA)
• Compatible with switches with 10G SFP+ ports, such as JetStream TL-SG3428X, TL-SG3428XMP and more.

• HARDWARE FEATURES
• MDD Yes
• SFP-MSA Yes
• Hot Swappable Yes
• TRANSCEIVER
• Standards and Protocols IEEE 802.3ae, TCP/IP, SFF-8472
• Wavelength 850nm
• Power Supply 3.3V
• Fiber Type 50/125um or 62.5/125um Multi-mode
• Maximum Cable Length 300m (OM3)
• Data Rate 10Gbps
• LC/UPC Port Type
• Safety and Emissions FCC, CE
• Environmental Factors Operating temperature: 0?70 (32±158 ?)
• Storage temperature: -40°80? (-40±176?)
• Operating humidity: 10 to 90% relative humidity non-condensing
• Storage humidity: 5?90% relative humidity non-condensing
