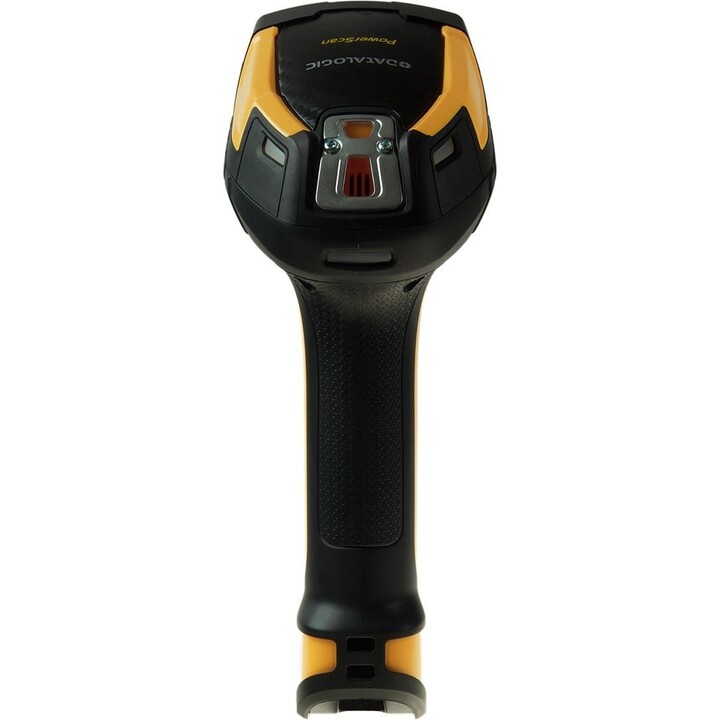

Datalogic PowerScan PD9630 Industrial Barcode Reader

• Scanner: PowerScan PD9630-SR (Standard Range), black/yellow.

• Cable: CAB-549 (RS-232 cable).

Scanning capabilities

• Reader type: 2D standard range area imager.

• Symbologies supported:

  • 1D: all standard linear codes, including GS1 DataBar linear.

  • 2D: Aztec, Data Matrix, QR, Micro QR, MaxiCode, Han Xin, DotCode, etc.

  • Postcards: Australian Post, China Post, IMB, Japan Post, KIX, Planet, Portuguese Post, Postnet, RM4SCC, Swedish Post.

• Pattern: omnidirectional reading.

• Reading distance: up to ≈68.9" (≈1.75 m) depending on symbology and code size.

• Field of view: 38° (H) x 24° (V).

• Angles: pitch ±52°, skew ±52°, roll 360°.

• Minimum resolution (DataMatrix): 10 mil; minimum contrast ≈15%.

Ruggedness and environment

• Ultra-rugged: part of the PowerScan 9600 series; withstands 50 drops from 2.5 m at 20 °C and 50 drops from 2.0 m at -20 °C.

• Environmental protection: IP65/IP67 (depending on series configuration; PD9630 maintains typical industrial PowerScan level).

• Ambient light: up to 100,000 lux.

Connectivity and typical usage

• Connectivity: wired, RS-232 in this kit (multi-interface variants available with USB, Keyboard Wedge, etc.).

• Applications: production lines, picking, cross-docking, industrial traceability and use on RS-232 scales/terminals where a robust and reliable reader is required.
