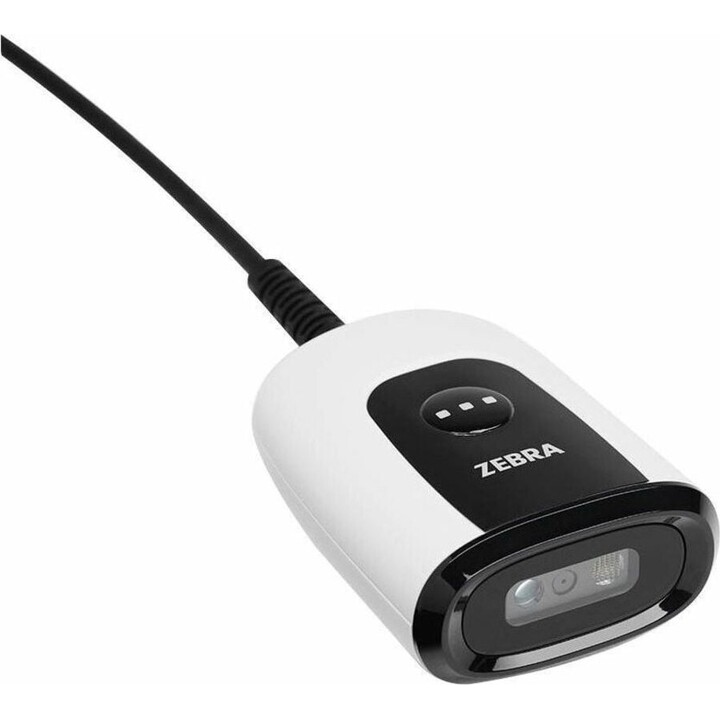

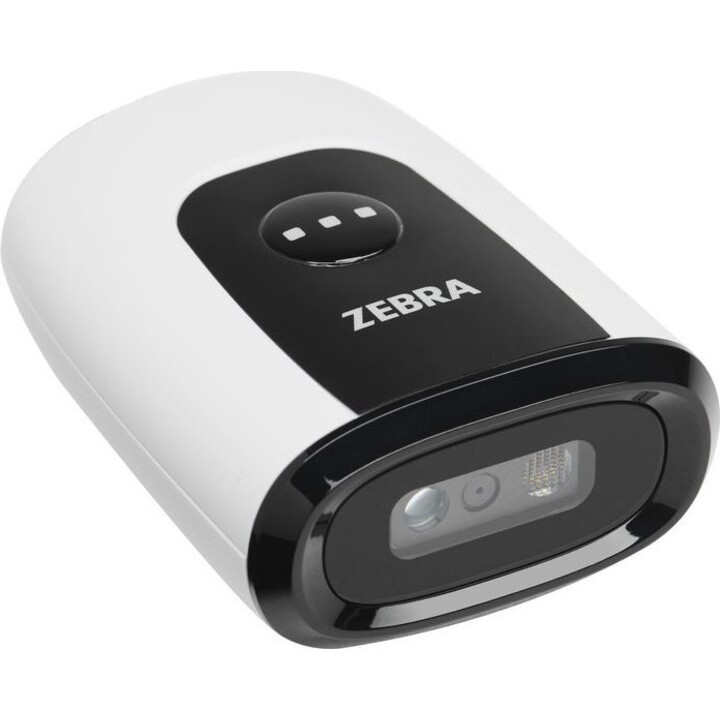

Zebra DS5502-LB4000WZZWW Fixed Barcode Scanner

Type and configuration

• Model: DS5502-LB4000WZZWW, "Digital Scanner, Standard Range, Labs, White (White Illum, Green LED Aimer)".

• Series: DS55 Series / DS5502-LB for medical environments (Labs/Healthcare).

• Reader type: 2D omnidirectional area imager with 1280 x 800 pixel sensor (resolution ≈184% higher than DS457).

• Illumination: White LEDs, optimised for reading codes on colour-coded trays, biopsy cassettes and medical labels; Green LED aimer pointer.

Scanning performance

Typical range examples (trigger/presentation mode).

• Code 39 3 mil: ~7.1-14.2 cm.

• Code 39 5 mil: ~5.1-22.6 cm.

• UPC/EAN 13 mil: ~4.1-62.7 cm (trigger), ~4.1-35.6 cm (display).

• Data Matrix 10 mil: ~4.8-27.4 cm.

• QR 20 mil: ~2.3-43.9 cm.

Other features:

• Reads 1D, PDF417 and 2D codes (QR, Data Matrix, Aztec, etc.), even damaged or poorly printed.

• Field of view approx. 48° (H) x 30° (V).

Physical format and robustness

• Form factor: fixed mount / hands free on counter or flush mounted; "hands free on counter presentation".

• Dimensions: 1.2" x 2.2" x 2.8" (≈ 3.0 x 5.6 x 7.2 cm).

• Weight: ~2.3 oz (≈ 65 g).

• Protection: IP54, design with no exposed openings and wipeable housing for frequent cleaning with disinfectants in labs/hospitals.

• Resistance: drops and splashes, temperature range -20 °C to 50 °C; humidity 5-95% non-condensing.

Connectivity and mounting

• Connectivity: wired (corded); supports USB and serial (USB/Serial/USB-A depending on cable).

• This particular reference is "Scanner Only" (cordless); USB/RS-232 cable choice depending on host.

• Mounting:

  • Standard 1/4-20 thread for third-party arms/brackets.

  • Optional 3-in-1 accessory (monitor mount, wall mount and presentation stand).
