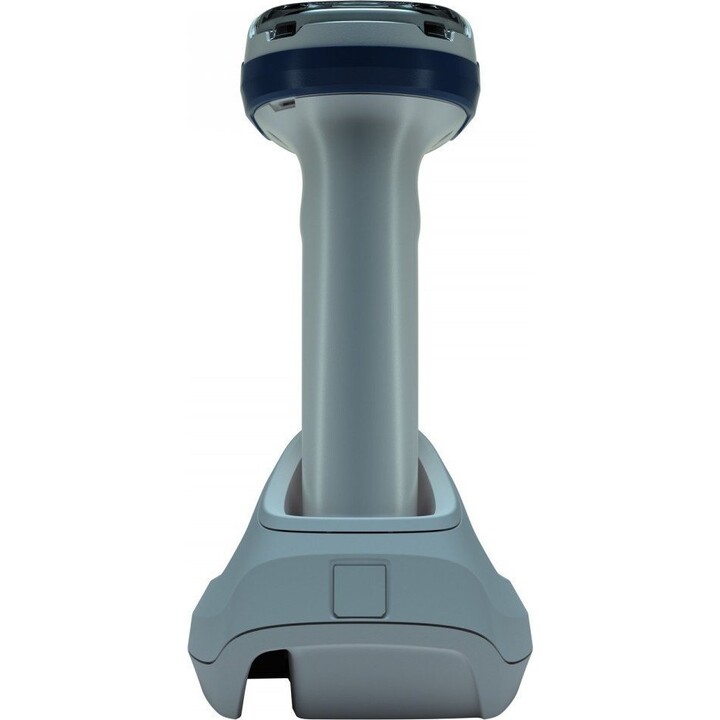

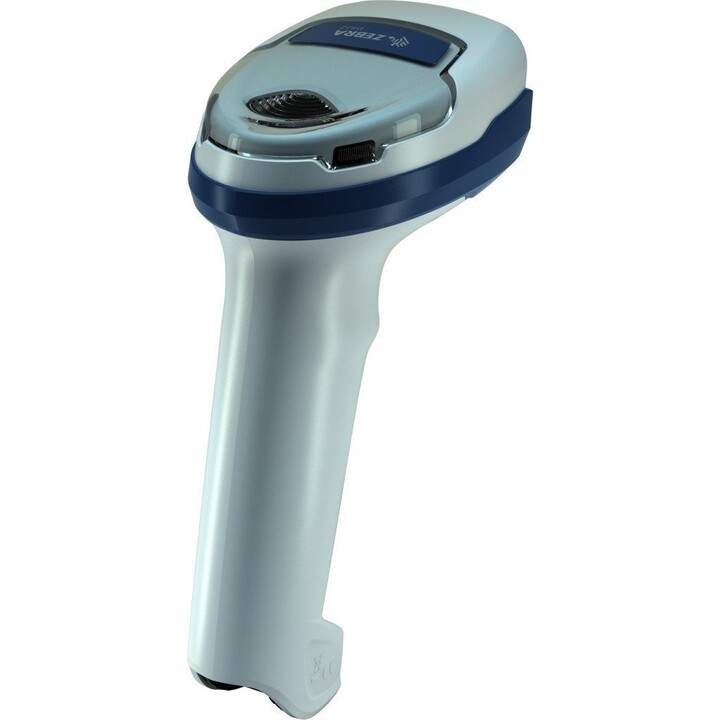

Zebra DS2278-HC Handheld 1D/2D Barcode Scanner with White LED

Scanner type and optics

• Base model: DS2278-HC, 1D/2D standard range (SR) imager, white LED.

• Sensor: 640 x 480 pixels (area imager).

• Supported codes: 1D linear (Code 39/128, EAN/UPC, etc.), GS1 DataBar, PDF417/MicroPDF and 2D (QR, Data Matrix, Aztec, Micro QR, etc.).

• White LED illumination: improves readability of medication labels, blood bags and healthcare documents over red LED.

DS2278-HCBU2100PRR Kit Contents

According to Healthcare USB Kit SKU distributors:

• Scanner: DS2278-HC0000BZZRW (cordless, healthcare, white).

• Presentation cradle: cradle CR2278-PC1000BRW, which allows hands-free counter/bedside mode.

• USB cable: CBA-U21-S07ZBR (USB 2.0 shielded) for connection of cradle to host.

Connectivity and battery

• Connectivity: Bluetooth 4.0 with BLE, HID and Serial Port profiles; Wi-Fi Friendly mode to minimise interference with hospital WLAN.

• Kit interfaces: wireless (scanner-cradle) + USB (cradle-PC/terminal).

• Battery: Li-ion 2,400 mAh, up to 84 hours of use or about 50,000 readings per typical charge; battery designed to last the lifetime of the scanner without replacement.

Sanitary design and robustness

• Disinfectant-ready healthcare housing: withstands frequent cleaning with hospital disinfectants without discolouring or cracking.

• Protection: IP42, withstands repeated drops onto hard surfaces and operating range of 0 to 50°C.

• Scanner weight: ≈214 g; dimensions 66 x 90 x 175 mm.
