DATALOGIC PBT9600-SRRFK10EU PowerScan 9600 Series - Handheld Scanner

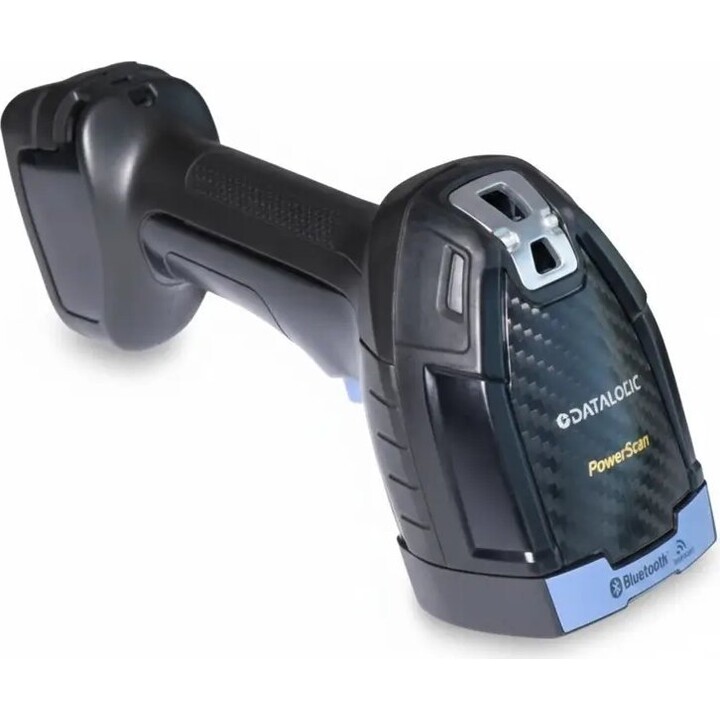

• Scanner: PowerScan PBT9600-SRRF EU (Bluetooth, 2D imager, Standard Range, UHF RFID, black/blue housing).

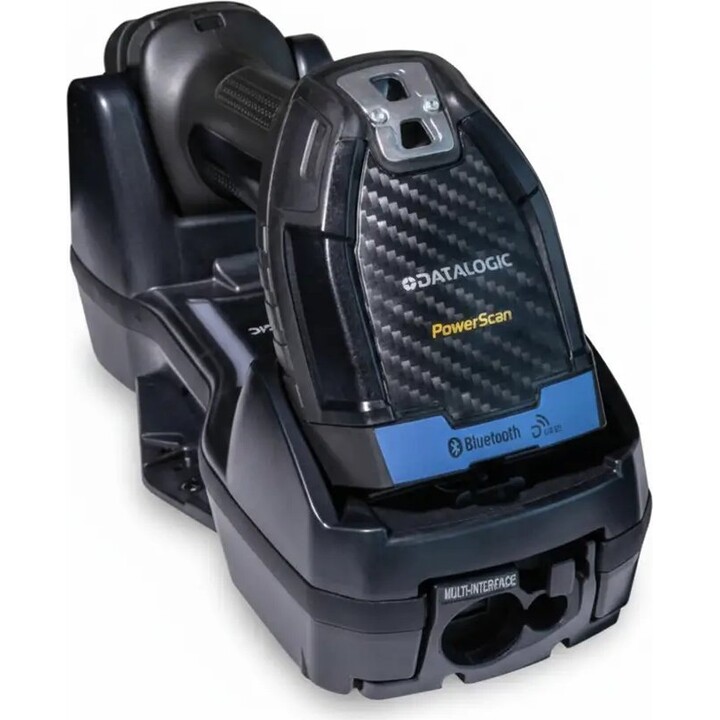

• Cradle: BC9630-BT (Bluetooth charging/communication cradle, multi-interface USB).

• Battery: Removable battery (RB) included with the scanner.

• Cable: USB cable (CAB-552 or equivalent) for connection from cradle to host.

• Power supply: PSU 8-0935 + EU power cable (6003-0940) or equivalent.

Read and RFID capabilities

• Code reading: 1D, stacked and 2D (QR, Data Matrix, etc.) with SR (Standard Range) imager optimised for typical warehouse picking and handling ranges.

• RFID: UHF reader/writer integrated in the scanner, compatible with EU 865-868 MHz band for reading EPC Gen2/ISO 18000-6C tags.

• Feedback: 3GL technology (three green LEDs), Green Spot, high volume beeper and vibration for reading confirmation in noisy environments.

Connectivity and robustness

• Connectivity: Bluetooth 5.0 from the scanner to the BC9630-BT cradle or other BT-enabled devices; the cradle offers USB (and other interfaces depending on configuration) to the host.

• Ruggedness: IP65 and IP67 protection for the scanner, IP65 for the cradle; withstands drops of up to 2.5 m and trigger tested for about 10 million activations.
