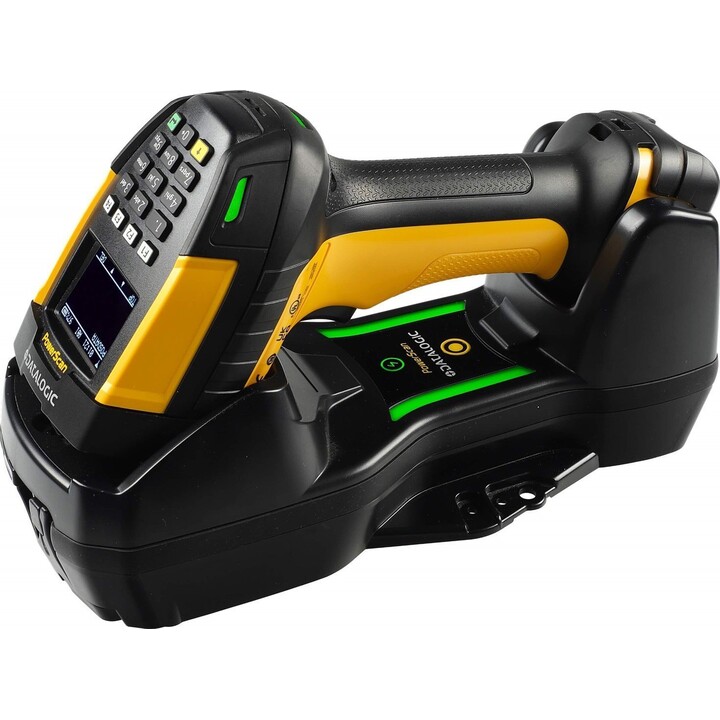

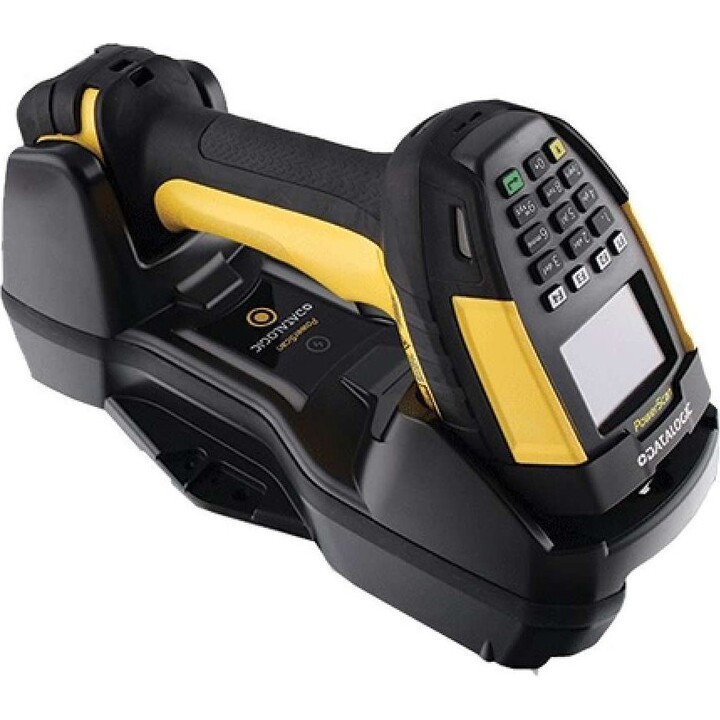

Datalogic PM9600-DKHP433RK10 Barcode Scanner

Model and configuration

• Family and variant

  • Belongs to the PowerScan 9600 PM (cordless) series, HP (High Performance) version for 1D/2D scanning at greater distances thanks to dual-camera imager.

  • The part number PM9600-DKHP433RK10 indicates: PM9600-HP model, 433 MHz radio (STAR Cordless System), DK format (Display + Keypad, 16 keys), and includes cradle + USB cable (USB Kit).

Reading and feedback capabilities

• Scanning and usage

  • 2D area imager for reading 1D and 2D codes (including damaged or dirty codes) with performance up to 20% faster than competitive products.

  • Incorporates 3GL (Three Green Lights): Green Spot on the code, confirmation LEDs and beeper/vibration to indicate "good read" clearly even in noisy environments.

Connectivity and radio

• STAR Cordless 433 MHz

  • Uses the proprietary STAR Cordless System 433 MHz, immune to Wi-Fi/Bluetooth interference and with long range bi-directional communication.

  • It can manage up to 16 scanners per cradle, overcoming the typical limitation of 7 Bluetooth devices per cradle.

Battery, charging and robustness

• Autonomy and charging

  • Includes removable battery (≈3,300 mAh) with power management for more than one shift of intensive scanning, and wireless charging system in the cradle (no contact pins).

  • The BC9600 base of the kit offers interchangeable interfaces (RS-232, USB, Ethernet, Industrial Ethernet) depending on the module installed.

• Industrial ruggedness

  • IP65 and IP67 rated, withstands drops of up to 2.5 m to concrete and trigger certified for up to 10 million activations, suitable for 24/7 use in harsh environments.
