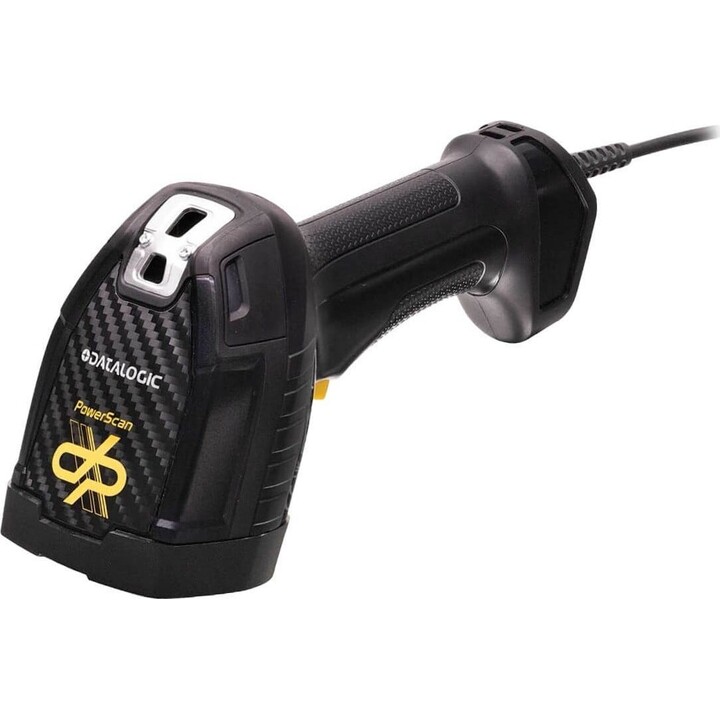

DATALOGIC PD9630-DPXK2 PowerScan 9600 Series - Handheld Scanner

• Base model: PowerScan PD9630-DPX (DPM version of the PD9630 family).

• SKU: PD9630-DPXK2, kit including PD9630-DPX scanner and RS-232 cable CAB-549 for host connection.

• Type: Corded omnidirectional handheld scanner (Desk model, corded).

Reading capabilities

• Specialised in DPM: reading of codes marked directly on the part (laser, micro-percussion, inkjet, electrochemical engraving, etc.) and also codes on 1D/2D labels.

• DPX optics optimised for difficult surfaces (metal, plastic, small parts, low contrast or damaged codes).

• Area imager with omnidirectional reading, frame aimer technology and optimised illumination for DPM.

Robustness and ergonomics

• Ultra-rugged: part of the PowerScan 9600 family, with IP65/IP67 sealing and drop resistance up to 2.5 m.

• Operator feedback: 3GL (Three Green Lights), Green Spot on the code, loud beeper and vibration for reading confirmation in noisy environments.

• Industrial ergonomics, weight approx. 0.7 lb (approx. 320 g), balanced to reduce fatigue during intensive use.

Interfaces and typical use

• Kit connectivity: RS-232 (multi-interface in the family: USB, serial, optional Ethernet depending on configuration).

• Applications: production lines, part traceability, quality control and internal logistics in sectors where DPM is standard.
