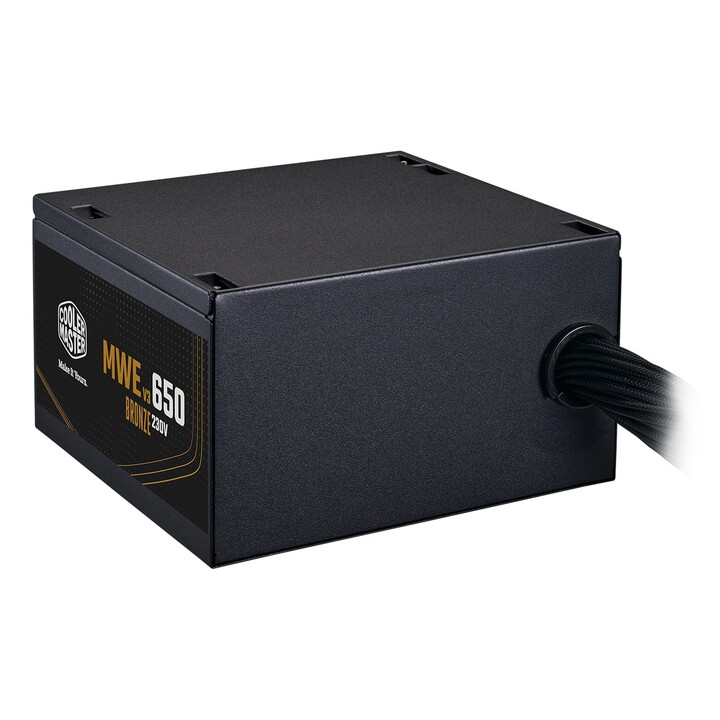

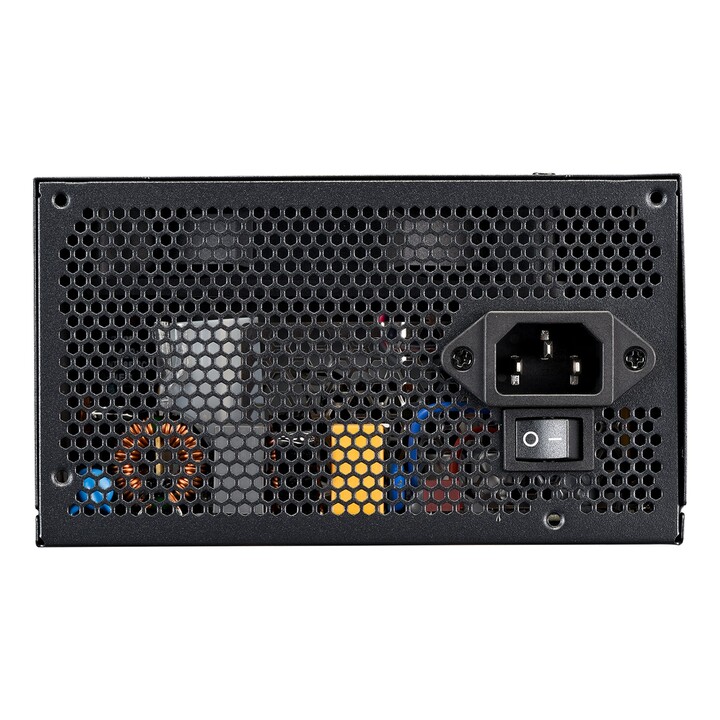

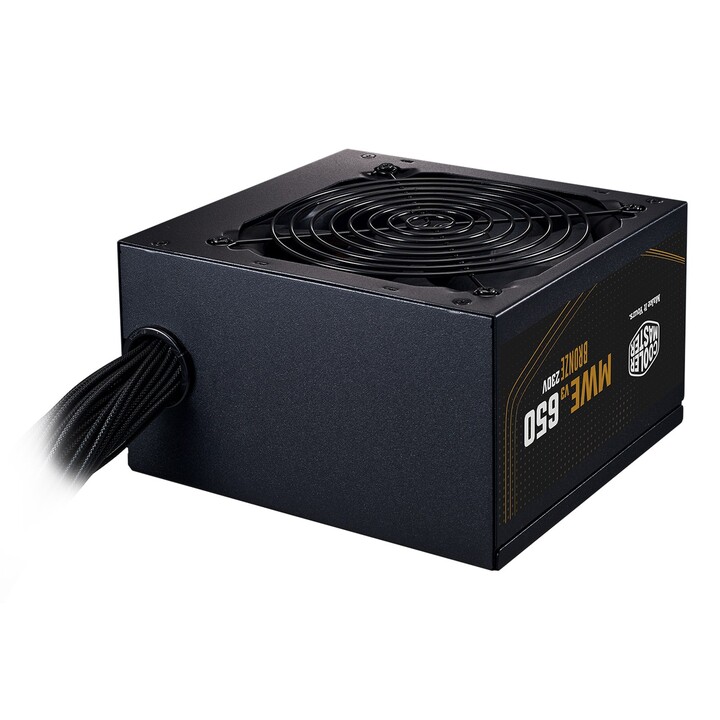

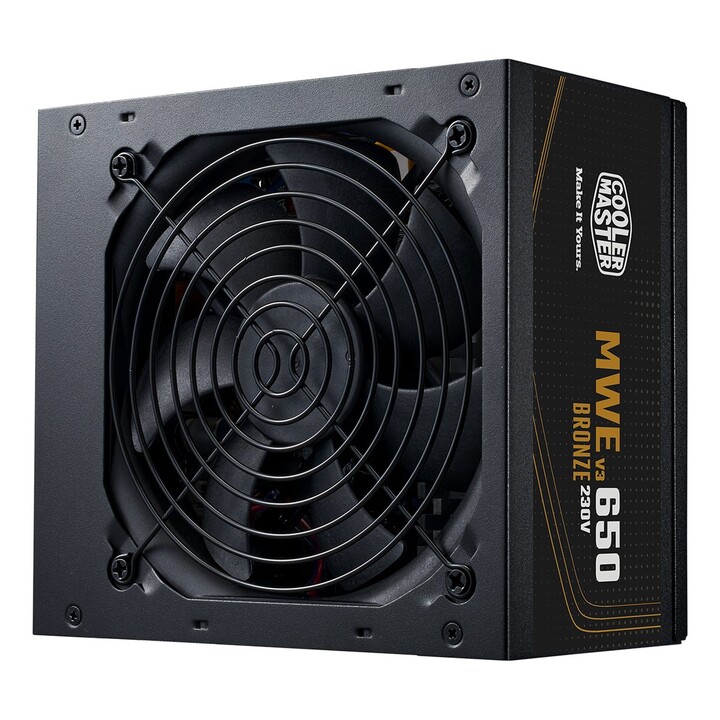

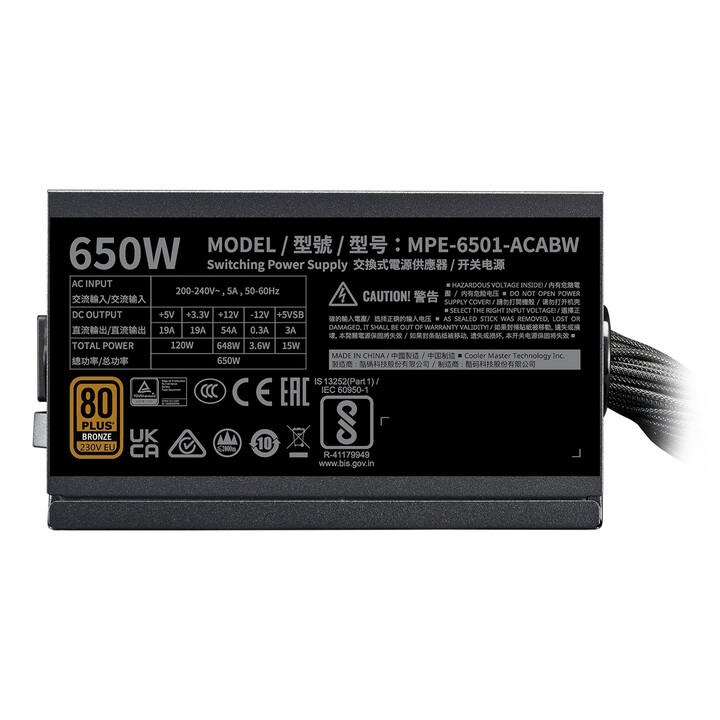

Cooler Master MWE Bronze 650 V3 230V Power Supply Unit 650 W 24-pin ATX ATX Black

€67.76
without tax €67.76
MPE-6501-ACABW-3BEU
4719512145227
New product
Out-of-Stock
Power supplies for computers and laptops > Cases power supply - ZDLCOLOBU0083 - Cooler Master MWE Bronze 650 V3 230V Power Supply Unit 650 W 24-pin ATX ATX Black Read more...

  •   Up to 3 years warranty
  •   100% secure payment
  •   14 days return
Whatsapp Share with your friends
Performance
Certification
ErP 2014 Lot 3
ATX version
3.1
Bearing technology
HDB
80 PLUS Certification
80 PLUS Bronze
Power Supply (PSU) Form Factor
ATX
Mean time between failures
100000 h
Use with
PC/Server
Energy control
AC input frequency
50/60 Hz
Maximum output current (+3.3V)
19 A
Combined power (+12 V)
648 W
Combined power (+5 VSB)
15 W
AC input voltage
200 - 240 V
Maximum output current (-12V)
0.3 A
Total power
650 W
Power factor correction (PFC) type
Asset
Combined power (3.3V)
120 W
Efficiency
88%
Maximum output current (+5V)
19 A
Power Good signal delay margin
100 - 150 ms
Power protection functions
Overheat, Overvoltage, Undervoltage, Overcurrent, Shortcircuit
Maximum output current (+5Vsb)
3 A
Waiting time
16 ms
Input current
5 A
Maximum output current (+12V)
54 A
Combined power (+5 V)
120 W
Combined power (-12V)
3.6 W
Design
Product color
Black
Number of fans
1 Fan(s)
Cooling type
Asset
Fan diameter
12 cm
Packaging
Package width
190 mm
Package height
110 mm
Package weight
2.05 kg
Package depth
245 mm
Environmental conditions
Operating temperature range
0 - 40 °C
Ports and Interfaces
Number of SATA power connectors
6
EPS power connector (8-pin)
Yeah
PCI Express power connectors (6 + 2 pin)
4
Motherboard power supply
24-pin ATX
SATA Power Cable Length
700 mm, 550, 400
Wiring Type
Not modular
EPS power connector (4+4 pin)
Yeah
Motherboard power cable length
50 cm
Peripheral power connectors (4 pin) (Molex)
3
Peripheral power cable length (Molex)
550, 400 mm, 700
PCI Express Power Cable Length
62 cm
Technical details
Certificates of conformity
Federal Communications Commission (FCC), RoHS, Low Voltage Directive, RCM, BIS, EAC, China Compulsory Certification (CCC), CE
Weight and dimensions
Height
86 mm
Weight
1.65 kg
Depth
140 mm
Broad
150 mm
Logistics data
Quantity per box
5 piece(s)
Width of master box
260 mm
Number of cardboard boxes per pallet (by plane)
32 piece(s)
Box length
570 mm
Height of main box
215 mm
Other features
EPS cable length
67 cm
Brand
Cooler Master
Country
Taiwan
Origin Address
6F, No. 398, Xinhu 1st Rd., Taipei City, Taipei, 114065
Entity UE
Cooler Master Technology Inc.
Address
Lodewijkstraat 1b, Eindhoven, 5652 Ac, Netherlands
Email
consumer_care@coolermaster.com
Phone
+34 912844705
