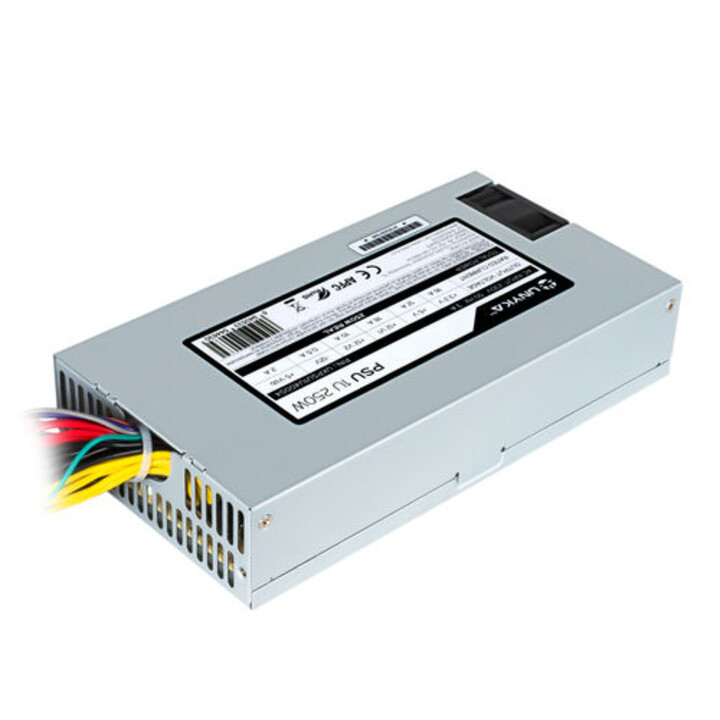

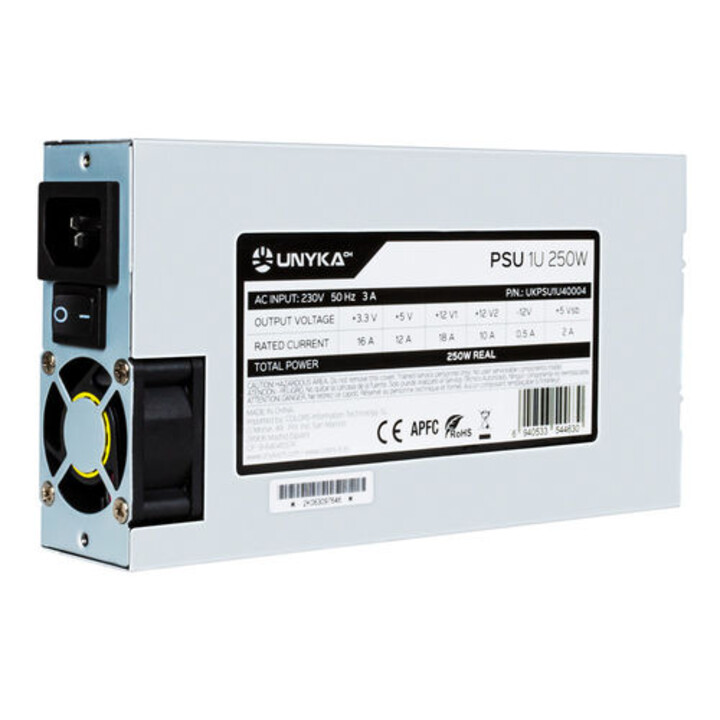

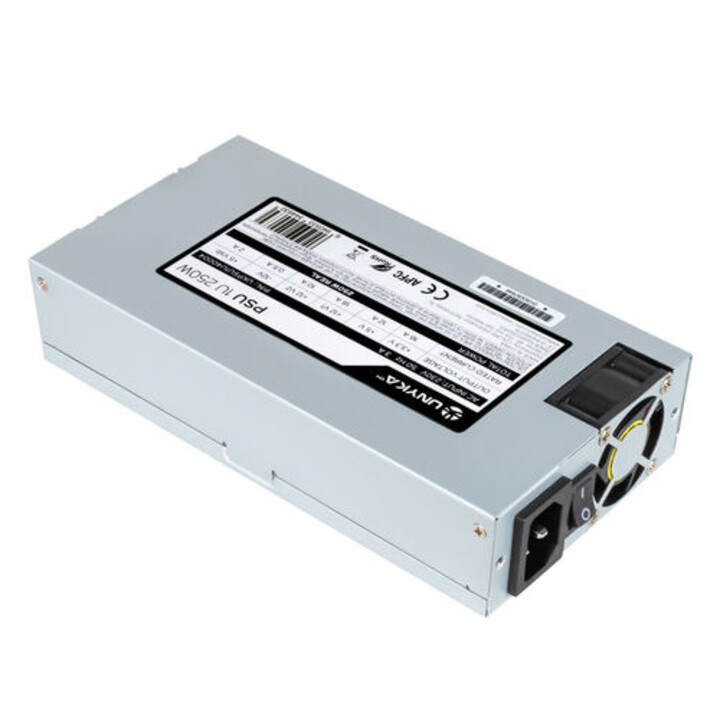

Standard 1U FLEX format power supply, ideal for a 19" 1U rack box. Built with high quality materials, it provides a power of 250W.
It includes a 40mm fan for optimal cooling of all components, as well as multiple protection systems, such as safety against overvoltage, low voltage, overcurrent and short circuits.
PRODUCT
-Power Supply FLEX 1U Standard 250W PN:UKPSU1U40004
VERSION
-
INTEL 2.3
CHASSIS TYPE
-FLEX 1U Standard
DIMENSIONS
-195(L) x 100(W) x 40(H)mm
WEIGHT
-990g
COLOUR
-Silver
ENERGY CONTROL

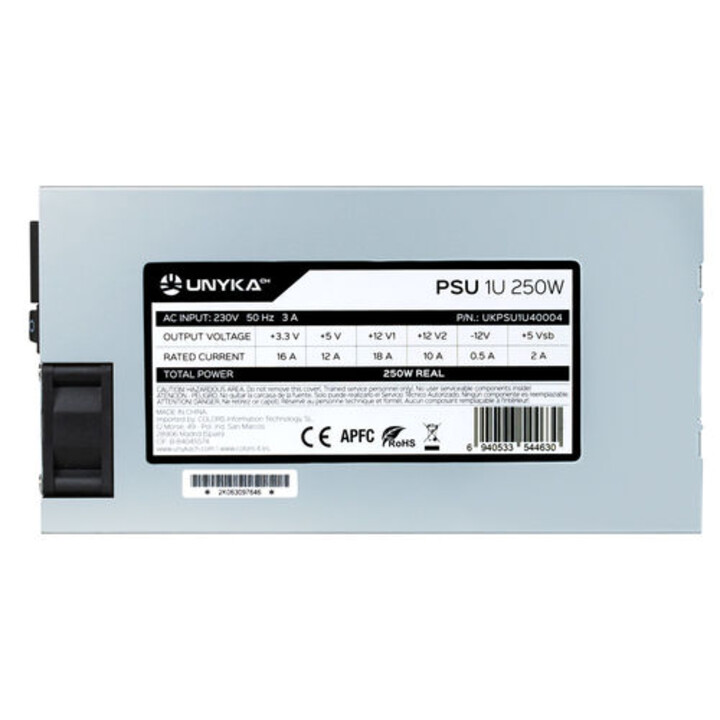

-Rated Power: 250W
-Input Voltage: 100-230V / 50-60 Hz
-Maximum Output Current +3.3V: 16 A
-Maximum Output Current +5V: 12 A
-Maximum Output Current +12V1: 18 A
-Maximum Output Current +12V2: 10 A
-Maximum Output Current -12V: 0.5 A
-Maximum Output Current +5Vsb: 2 A
POWER FACTOR
-APFC
CAPACITORS
-Chinese
8 PIN CONNECTOR (4 + 4 PIN)
-1x420mm
CONNECTOR 20 + 4 PIN
-1x400mm
FDD CONNECTOR
-1 x 890mm
MOLEX CONNECTOR
-1 x 560mm / 1 x 710mm
SATA CONNECTOR
-2 x 400mm / 1 x 560mm / 1 x 700
RAIL
-Dual
DIMENSIONS
-195(L) x 100(W) x 40(H)mm
WEIGHT
-990g
CUBICAGE
-0.0007 m3
COLOUR
-Transparent
MATERIAL
-Bag
PACKAGE CONTENT
-Power Supply FLEX 1U Standard
