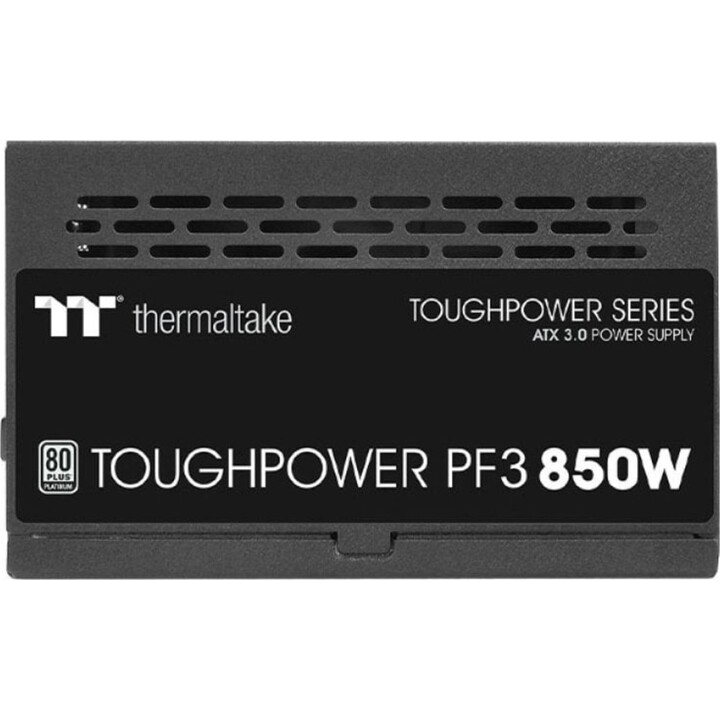

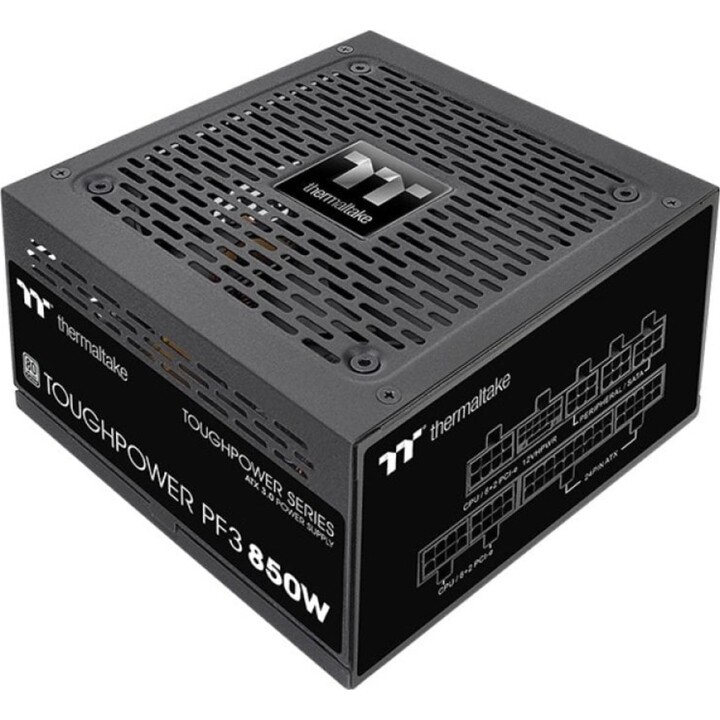

Thermaltake Toughpower PF3 TT Premium Edition PCIe 5.0 850W 80 Plus Platinum Mod Power Supply

The Toughpower PF3?series?is 80 PLUS Platinum certified and fully compliant with Intel's ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power next-generation technology with a new 12VHPWR cable.

Characteristics

• Power up next-generation hardware.?To fully support next-generation hardware, the Toughpower PF3 Platinum Series is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum Series offers 80 PLUS Platinum efficiency and also delivers superior stability, durability, and reliability.
• Fully compliant with Intel ATX 3.0 standards. The Toughpower PF3 Platinum series is fully compliant with Intel ATX 3.0 specifications, supporting up to 200% power excursion, achieving 70% low-load efficiency, and meeting required power supply synchronization standards.
• Ready for PCIe Gen 5.0. The Toughpower PF3 series comes with a 16-pin connector to deliver powerful and stable performance, allowing the power supply to natively support next-generation GPUs.
  The wattage marked on the 12VHPWR connector is the recommended wattage. (Ref. Intel Design Guide) The PF3 850W's native 16-pin PCIe connector (12VHPWR) can deliver up to 450W for PCIe 5.0 graphics cards.
• Built to meet the demands of the latest graphics cards. As graphics cards' power consumption increases, so does their energy demand. The PF3 Platinum series is designed to support both NVIDIAnd AMD graphics cards and is prepared to supply power to these cards according to their different connection methods.
• 80 PLUS Platinum Certified. The 80 Plus Platinum certification means that Toughpower PF3 converts energy efficiently, resulting in less energy loss and heat buildup within the power supply.
• Compact design with a depth of 140 mm. The Toughower PF3 Platinum series is designed to be compact with dimensions of 140 mm (D) x 86 mm (H) x 150 mm (W), providing ample space for cable management.

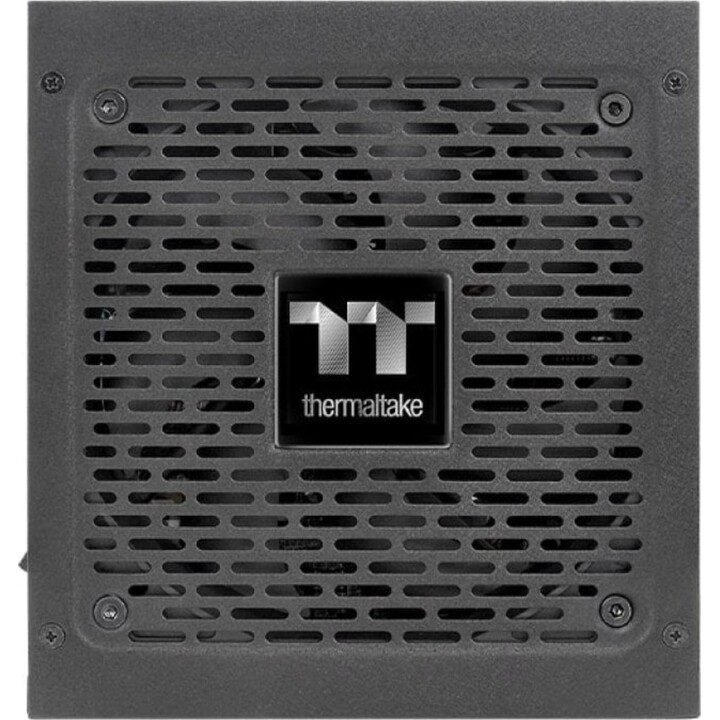

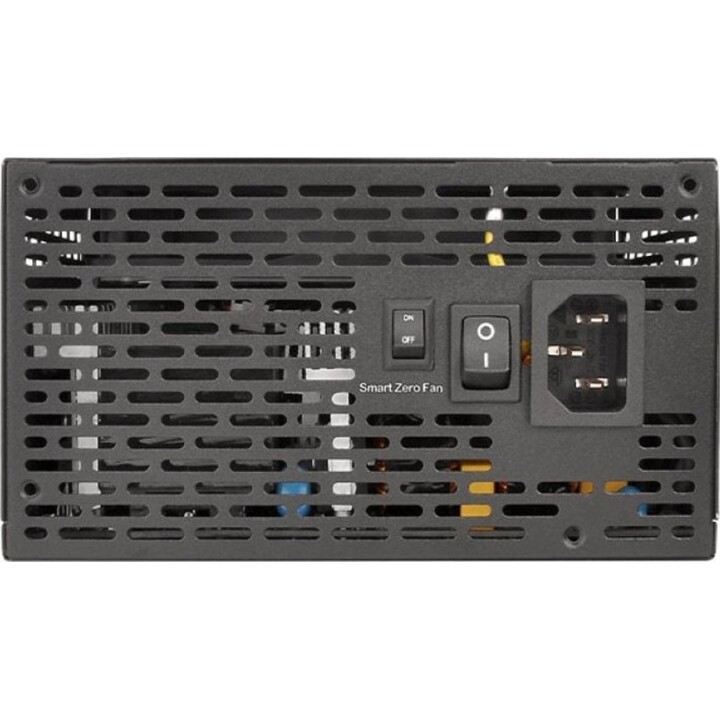

• Be smart, stay quiet. It features a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling. Plus, Smart Zero Fan will adjust the fan speed and minimize unwanted noise.
• More stable than ever.?High-quality, 10100%apanese 105°C/221°F electrolytic capacitors provide exceptional durability and stability while remaining reliable.

Thermaltake Toughpower PF3?Specifications

• Energy control
  • Total power: 850 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 10 A
  • Power factor correction type (PFC): Active
  • Combined power (3.3 V): 100 W
  • Combined power (+12 V): 849.6 W
  • Combined power (+5 V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5 VSB): 12.5 W
  • Maximum output current (+3.3V): 20 A
  • Maximum output current (+12V): 70.8 A
  • Maximum output current (+5V): 20 A
  • Maximum output current (-12V): 0.3 A
  • Maximum output current (+5Vsb): 2.5 A
  • Efficiency: 70%

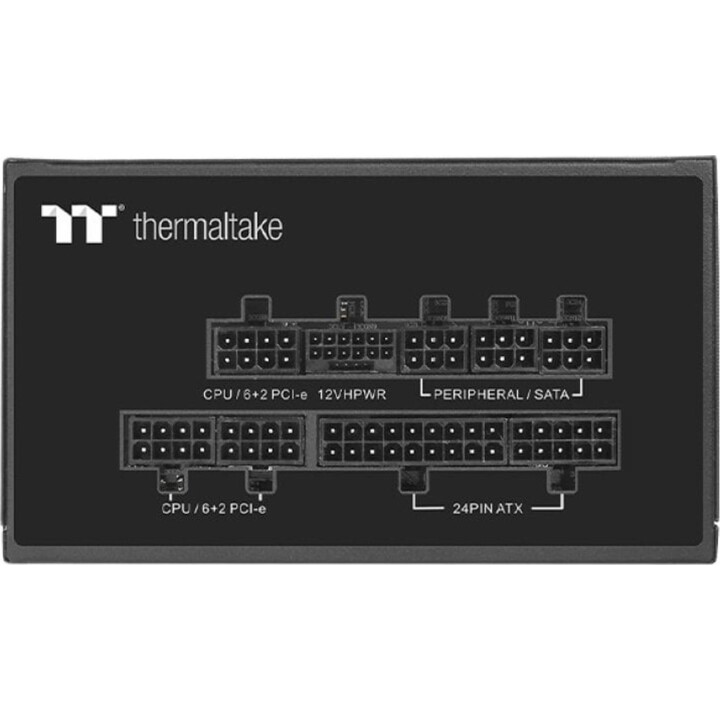

• Ports and Interfaces
  • Motherboard power supply: 24-pin ATX
  • Motherboard power cable length: 60 cm
  • Number of SATA power connectors: 8
  • SATA power cable length: 150,500 mm
  • Peripheral power connectors (4 pin) (Molex): 4
  • Peripheral power cable length (Molex): 150,500 mm
  • EPS power connector (4+4 pin): Yes
  • PCI Express power connectors (6 + 2 pin): 4
  • PCI Express (16-pin) power connectors: 1
  • ATX power connector (24-pin): Yes
  • Wiring type: Fully modular

• Performance
  • 80 PLUS Certification: 80 PLUS Platinum
  • Use with: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.0
  • Silent mode: Yes
  • Bearing technology: FDB
  • Mean time between failures: 100,000 h
  • Safety: CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI

• Design
  • Product color: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 Fan(s)
  • Integrated on/off switch: Yes

• Environmental conditions
  • Operating temperature range: 0 - 45°C
  • Storage temperature range: -40 - 70 °C
  • Relative humidity range for operation: 5 - 85%
  • Relative humidity range during storage: 5 - 95%

• Package contents
  • Cables included: PCIe, Peripheral (Molex), SATA

• Weight and dimensions
  • Width: 140 mm
  • Depth: 150 mm
  • Height: 86 mm
